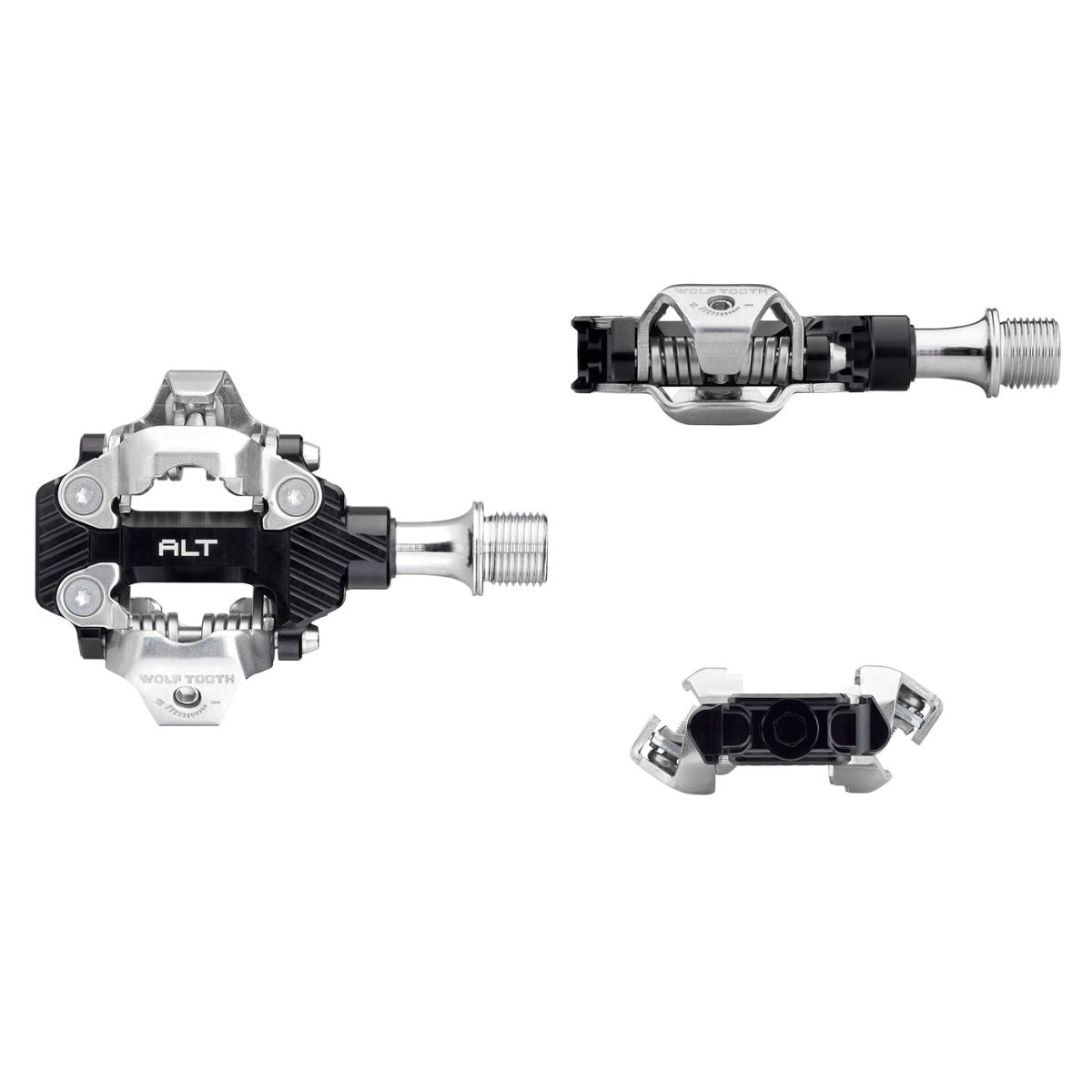

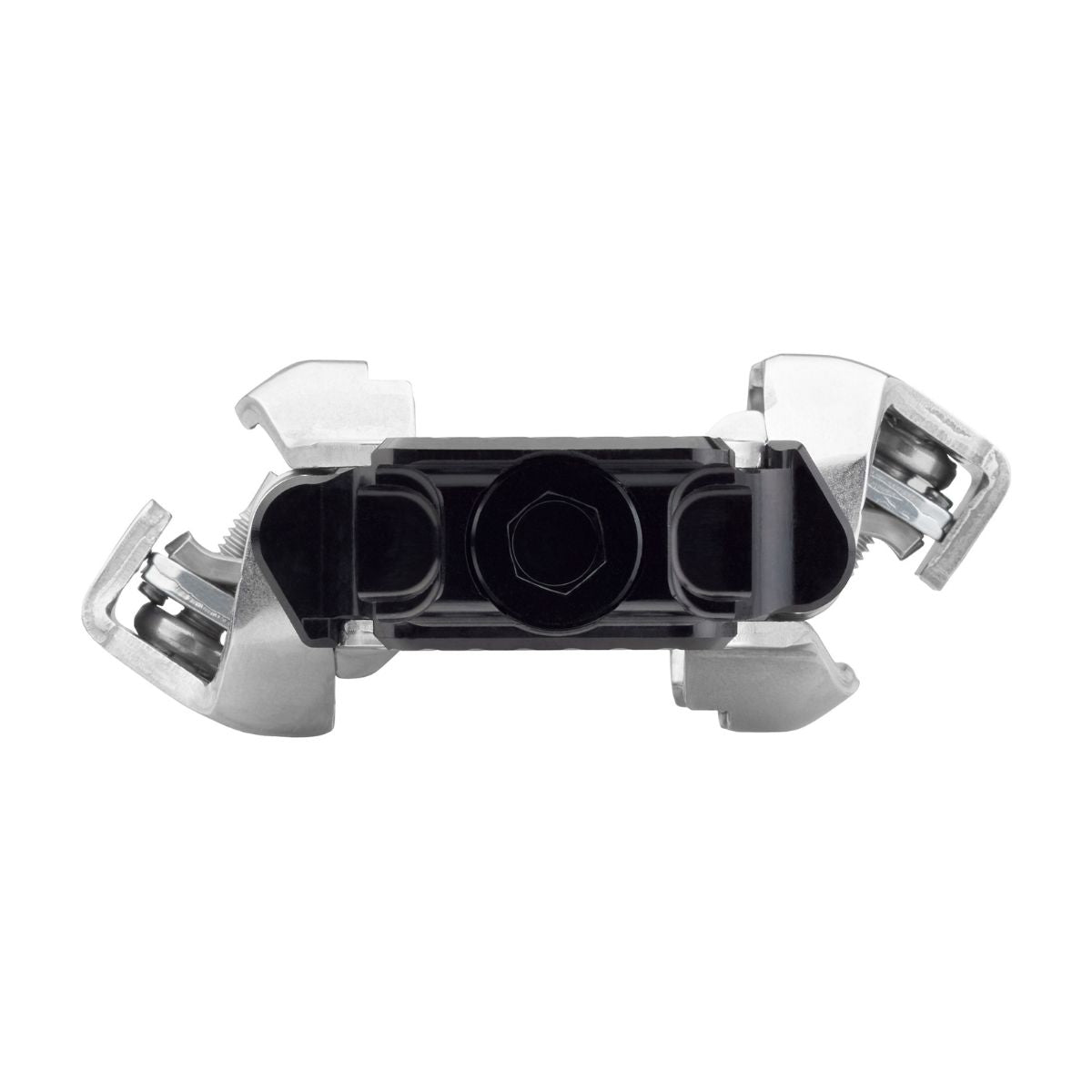

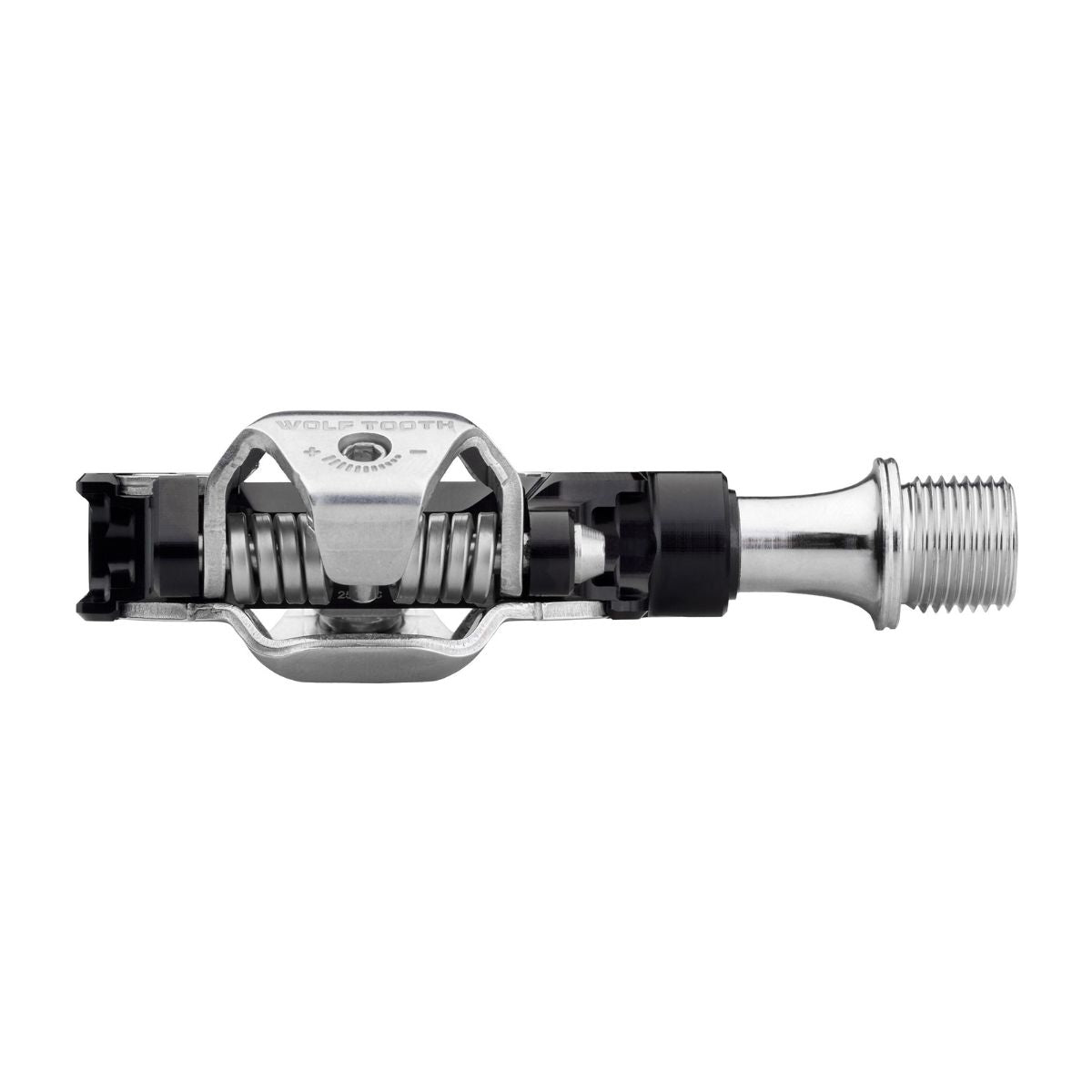

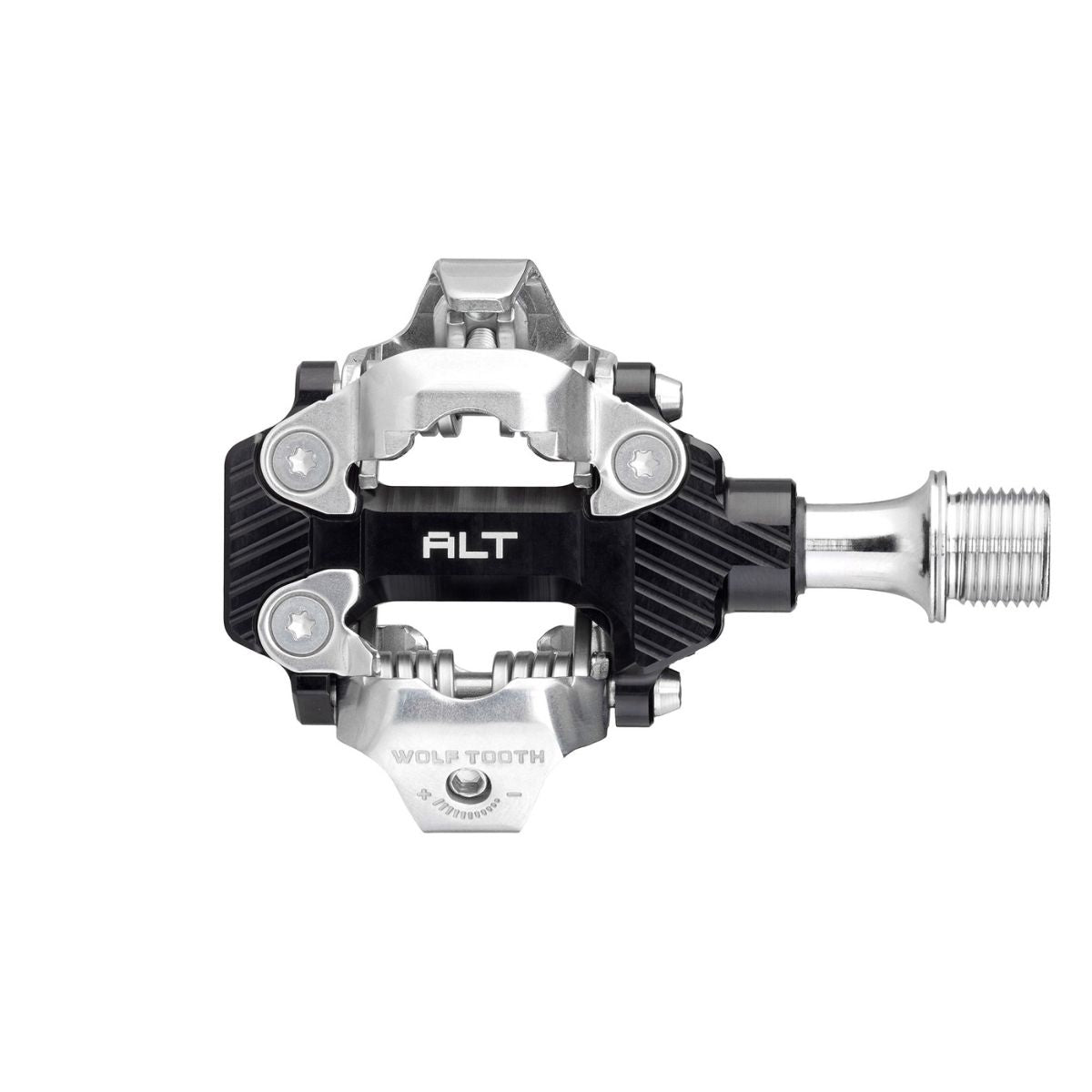

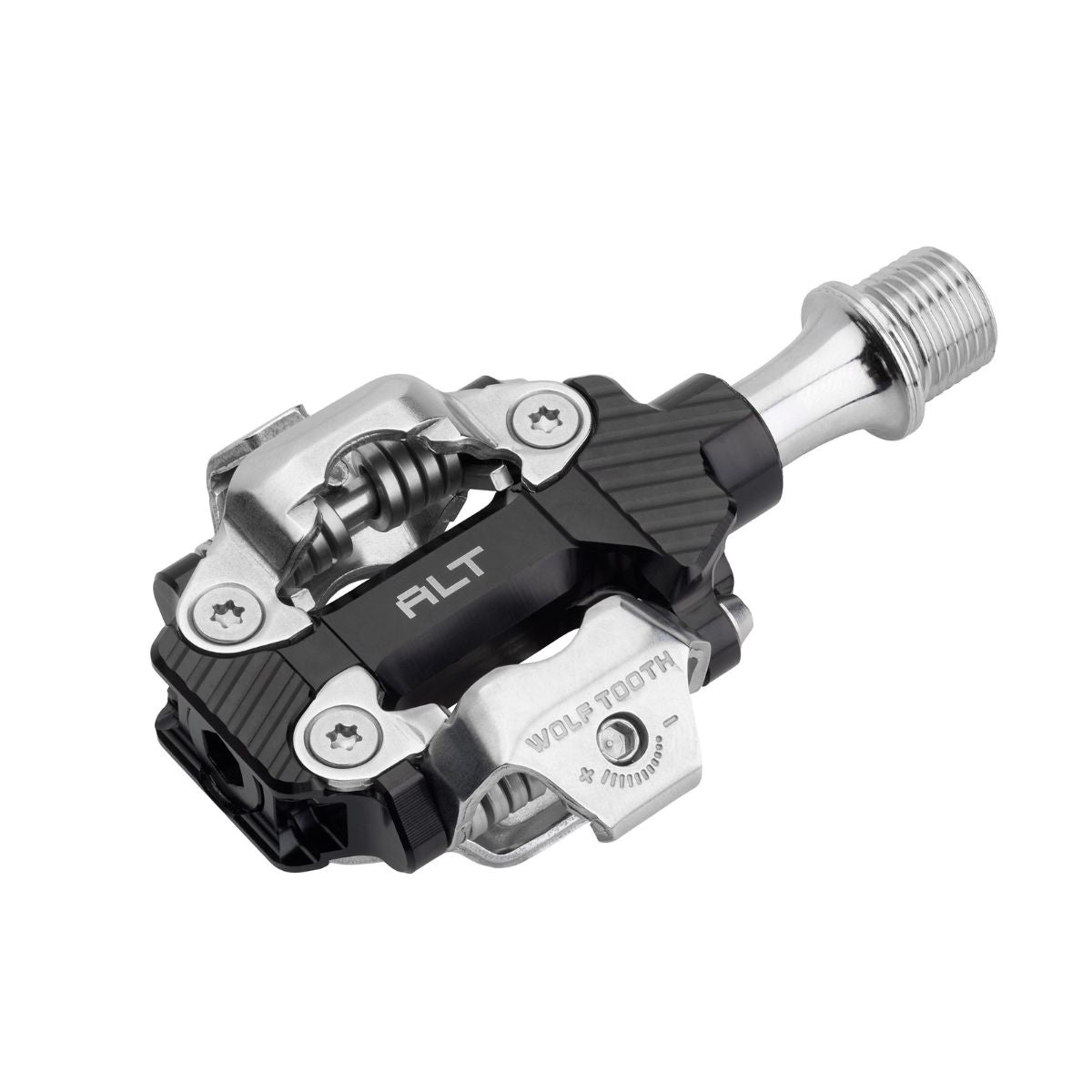

WOLF TOOTH ALT XC CLIPLESS PEDALS

The new Wolf Tooth ALT XC Clipless Pedals are designed for commanding performance on trails and gravel roads. These pedals are simultaneously lighter and thinner than their Shimano, Hope, and HT counterparts, with an exceptionally low stack height, while also having more platform area for control and power transfer. This body design also features an open center for better mud clearance than other clipless pedals. The SPD-compatible clip-in/out experience is quick and precise, with Wolf Tooth cleats included.

The ALT XC Clipless Pedals have adjustable Q factor in 4mm increments. Inside the pedal is a stainless steel axle, three bearings, and two spacers. Spacers and bearings can be rearranged for Q factors of 51, 55, or 59mm. This is simple enough for anyone to do at home. Like most Wolf Tooth components and accessories, replacement parts and service guides are available via Wolf Tooth Right to Repair.

PRODUCT HIGHLIGHTS

• Compatible with SPD cleats; Wolf Tooth cleats included


• Thinner than the competition at 15mm (compared to Shimano XTR XC at 16.5mm and Hope XC at 18mm, HT M2 at 17.6 mm)


• Lighter than the competition at 295g (compared to Shimano XTR XC at 314g and Hope XC at 322g, HT M2 at 306g)


• Large platform area at 345mm²


• Adjustable Q factor options of 51, 55, and 59mm


• Proven axle and bearing design from Waveform Aluminum Pedals


• Designed and machined at Wolf Tooth in Minnesota, USA; tested by riders around the world

SPECIFICATIONS

WEIGHT: 295g
MATERIAL: Body: 6061-T6 aluminum CNC machined | Axle: Heat-treated 17-4 PH stainless steel | Binding Cage and Hardware: stainless steel
