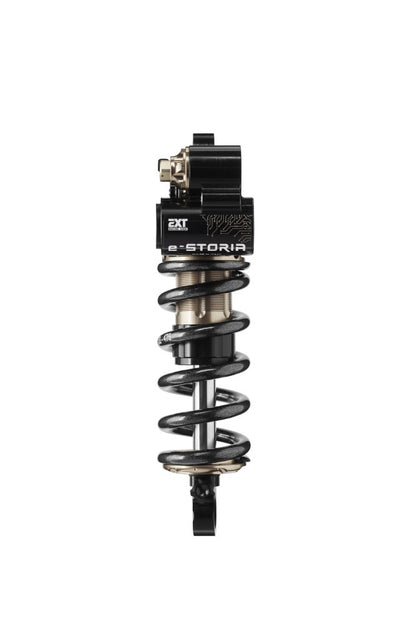

EXT e-Storia

The e-Storia features much of the same technology of the Storia V3 but in a more robust package built specifically for the stresses involved with the higher vehicle weight of E -bikes and tailored to provide ultimate control for all riders from the enthusiast to those at the elite level of E-bike enduro riding.

While the Storia V3 is built for best-in-class weight and performance the e-Storia is designed with an emphasis on toughness to drastically improve reliability over dampers without dedicated E-bike construction.

The stronger shock design can help increase the lifespan of bike chassis components as well, and increase range of tune-ability accomodating a wider range of bike and rider types.

An industry "first" an ultra-high performance suspension specifically designed for aggressive E-bike riding and super comfort level for professional riders and all enthusiasts.

Springs sold separaley.

• Integrated reservoir head design
• Stronger body construction
• Reservoir with large volume bladder design
• Dedicated spring platform for stiffer springs
• Negative spring to avoid harsh top-out and improve bike platform stability
• New rebound adjustment to increase tuning range
• Chromemoly shaft with low-friction coating
• New compression valve for more adjustability and smoother riding
• 4 way adjustable (LSC-HSC-LSR-Lok proprietary system)
• No cavitation
• Very low hysteresis to improve dynamic response
• Completely indipendent bump/rebound adjustment
• New check valve with low inertia for a better control and sensitivity
• New externally adjustable HBC
• More efficient HBC design to increase bottom out protection
• New seals design to reduce friction
• New main piston design with high flow to improve sensitivity and tunability
• All valves with turbulent flow for very low temperature depending
• New high viscosity index oil for longer consistend riding in all situations
• Standard or Trunnion mount

Weight: 460 gr.
(210x55 mm. Standard mount - without spring)

AVAILABLE LENGHTS / STROKE

METRIC STANDARD
210 / 50 mm
210 / 52.5 mm
210 / 55 mm
230 / 57.5mm
230 / 60 mm
230 / 62.5 mm
230 / 65 mm

METRIC TRUNNION
185 / 50 mm
185 / 52.5 mm
185 / 55 mm
205 / 57.5 mm
205 / 60 mm
205 / 62.5 mm
205 / 65 mm
