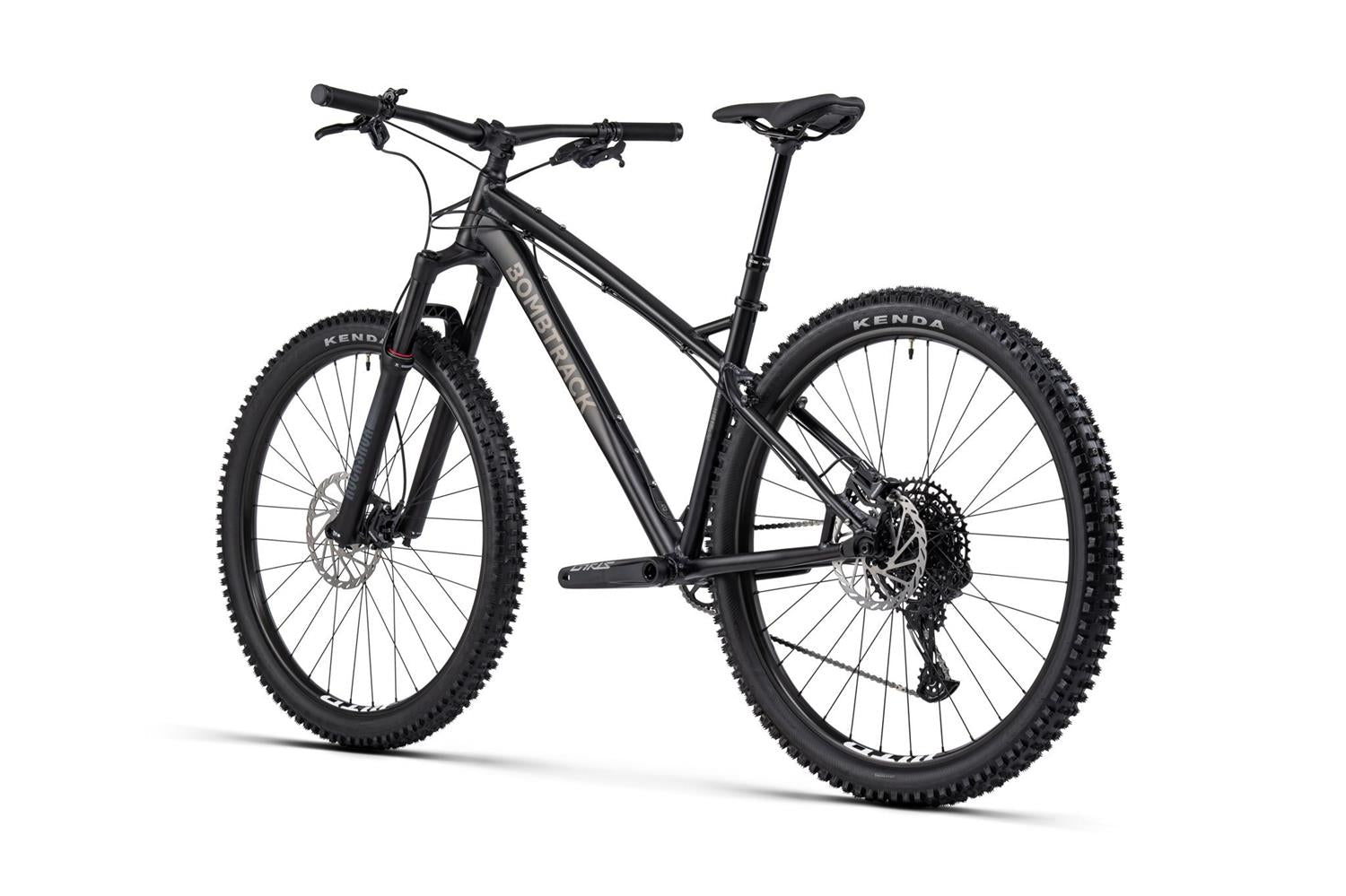

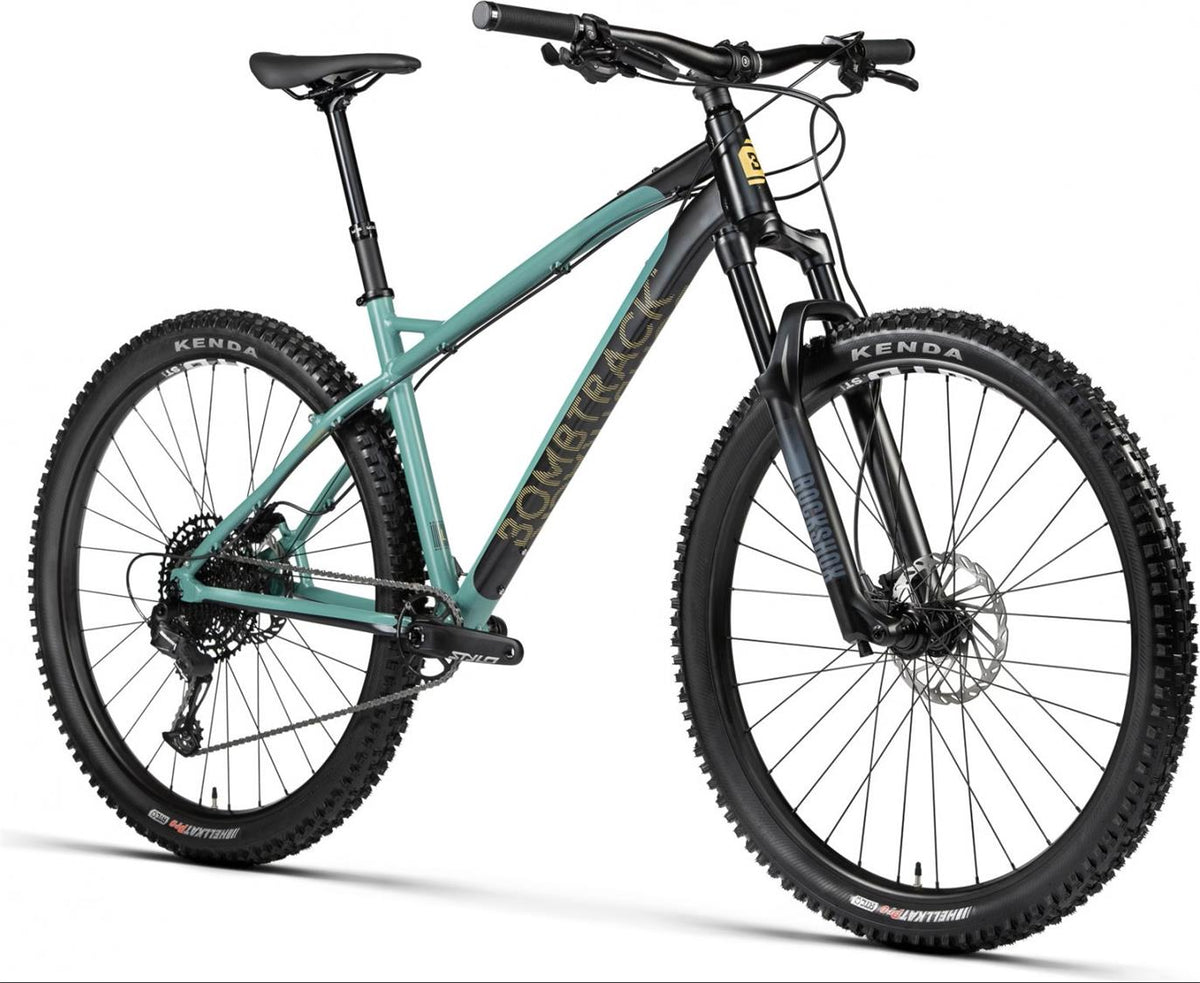

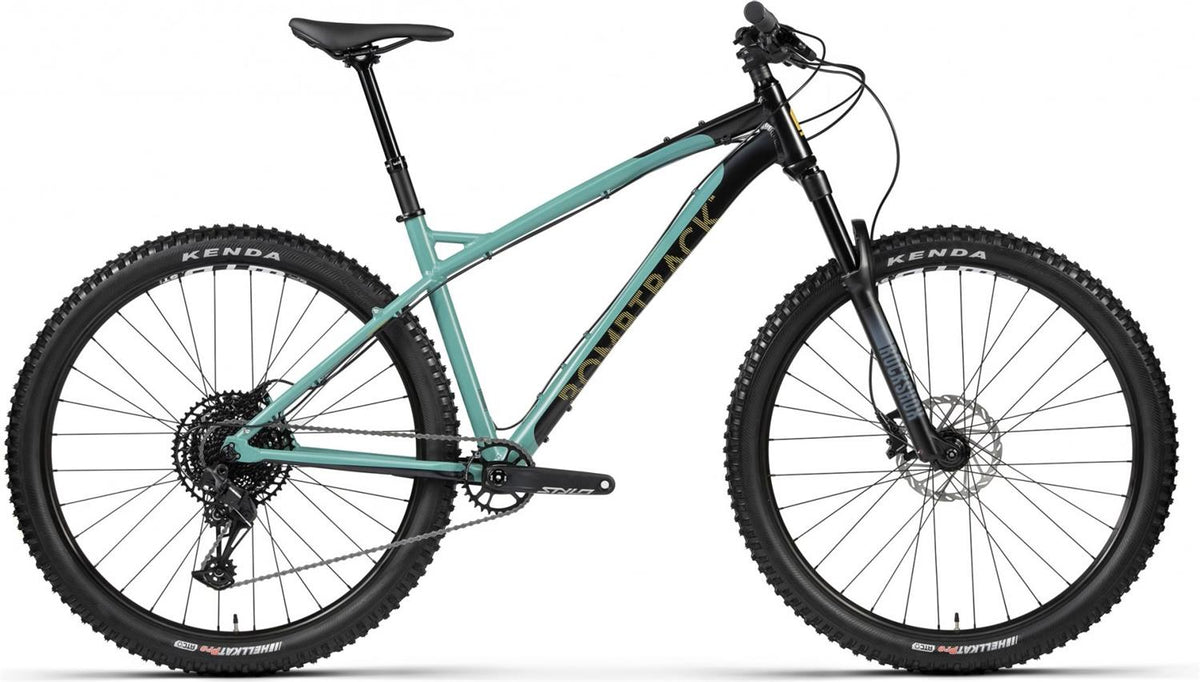

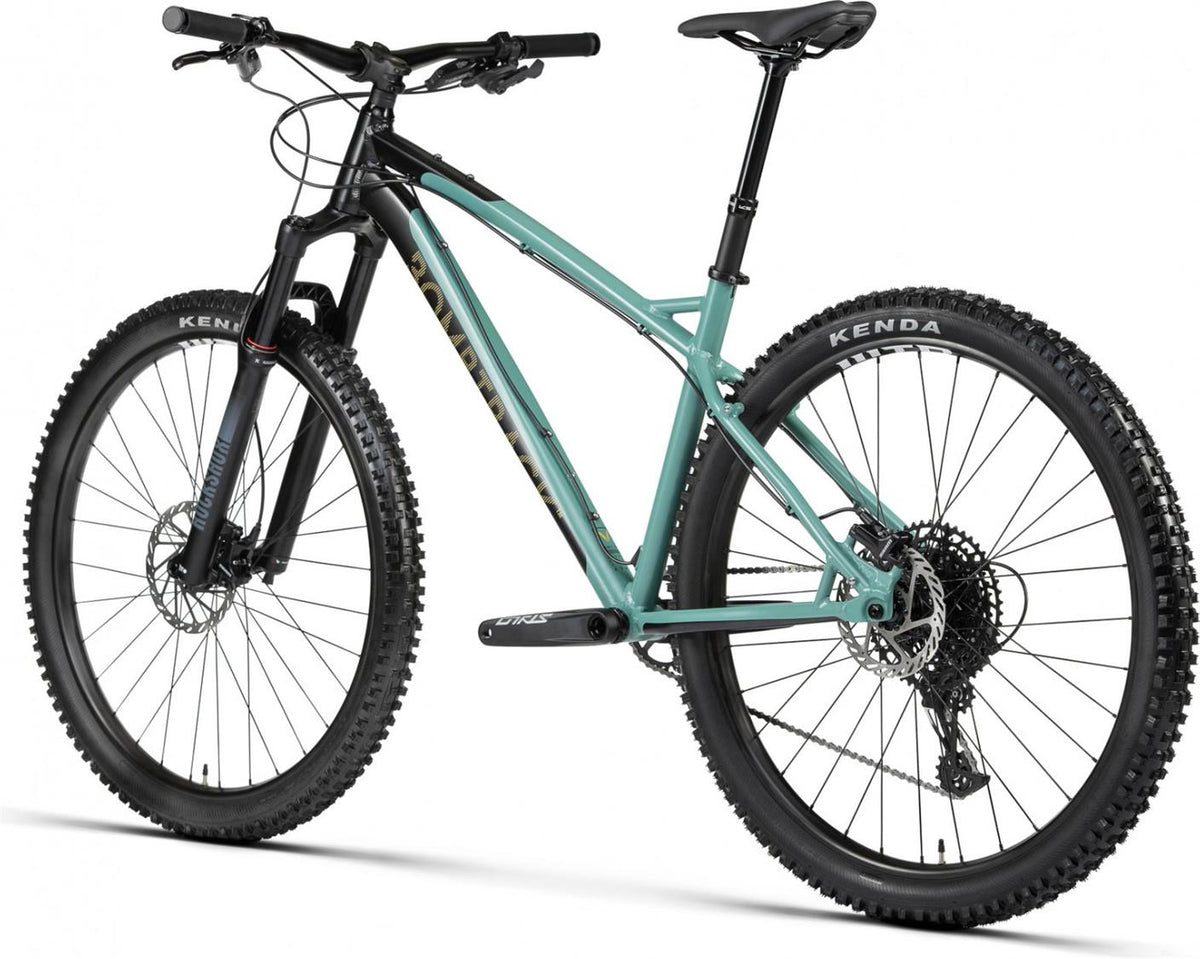

Bombtrack Cale AL SX

Regular price: $3,699.00
Regular price
Sale price: $3,699.00
Unit price: per

Brand: BMBTRCK

Product variants

Description

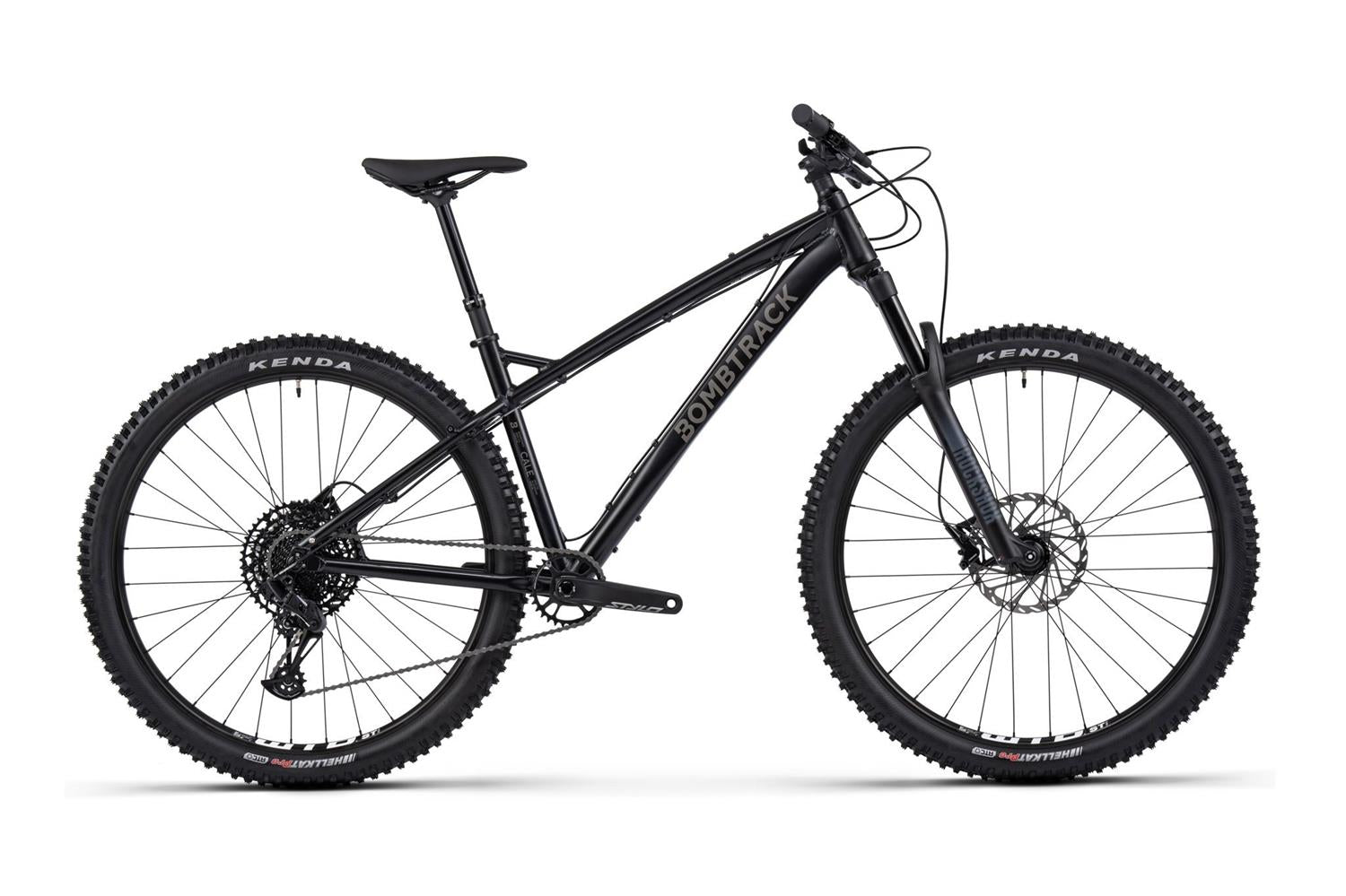

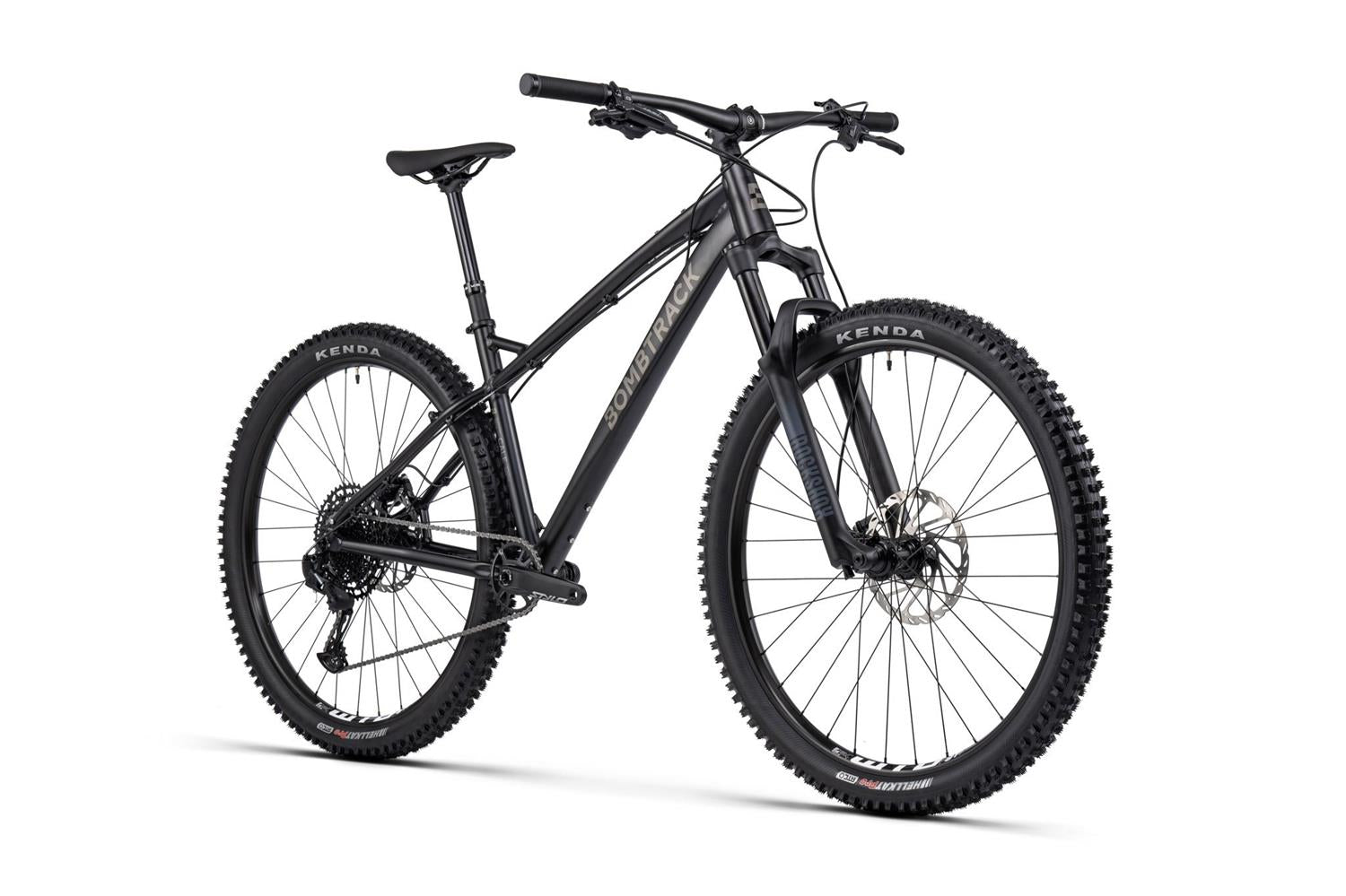

Our Cale SX Eagle model uses our lightweight triple-butted aluminium Cale frame with its multitude of mounts, and pairs it with an air-sprung RockShox 35 Gold RL fork which offers compression and rebound adjustment.

SRAM’s SX Eagle drivetrain with its 11 - 50T cassette and a 30T chainring help out when things get really tough. Seido’s 40 mm stem and 800 mm wide bar with a KS 150 mm dropper post and SRAM Level T brakes provide excellent control when the trail turns gnarly. Wheels are tubeless ready WTB i29 rims, Bombtrack hubs and Kenda Hellcat Pro 2.4’’ tyres. Time to hit the woods.

"The result is an expedition-ready hardtail that’s as happy to rip around a trail centre as it is to cross an entire mountain range."

Color 1	Matt black

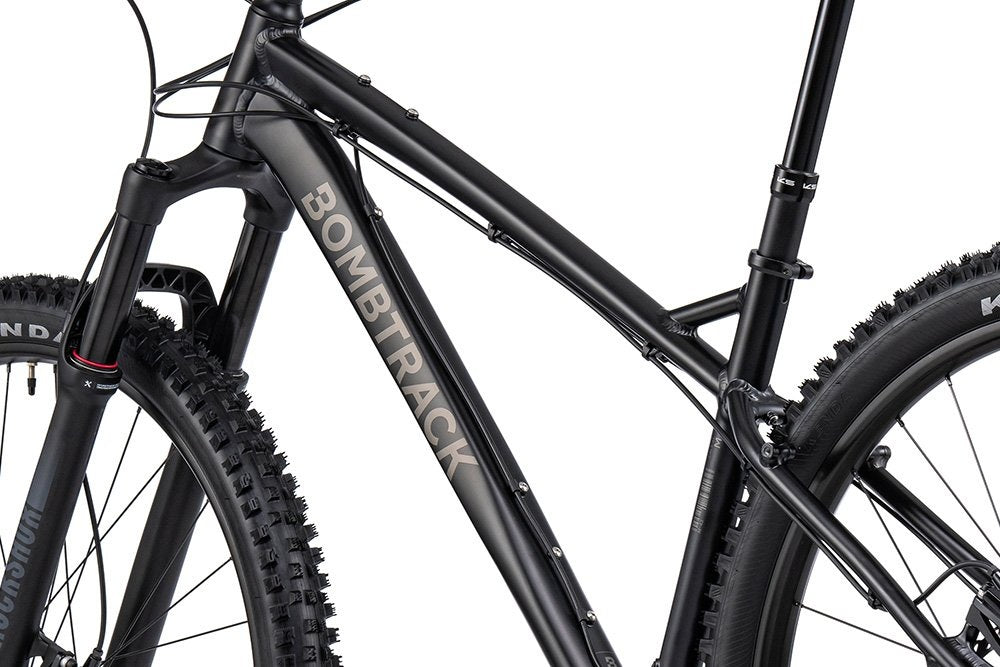

Frame	6061-T6 hydro-formed aluminium, TA, rack / fender mounts, Boost spacing, stealth dropper ready, 73 mm BSA BB shell

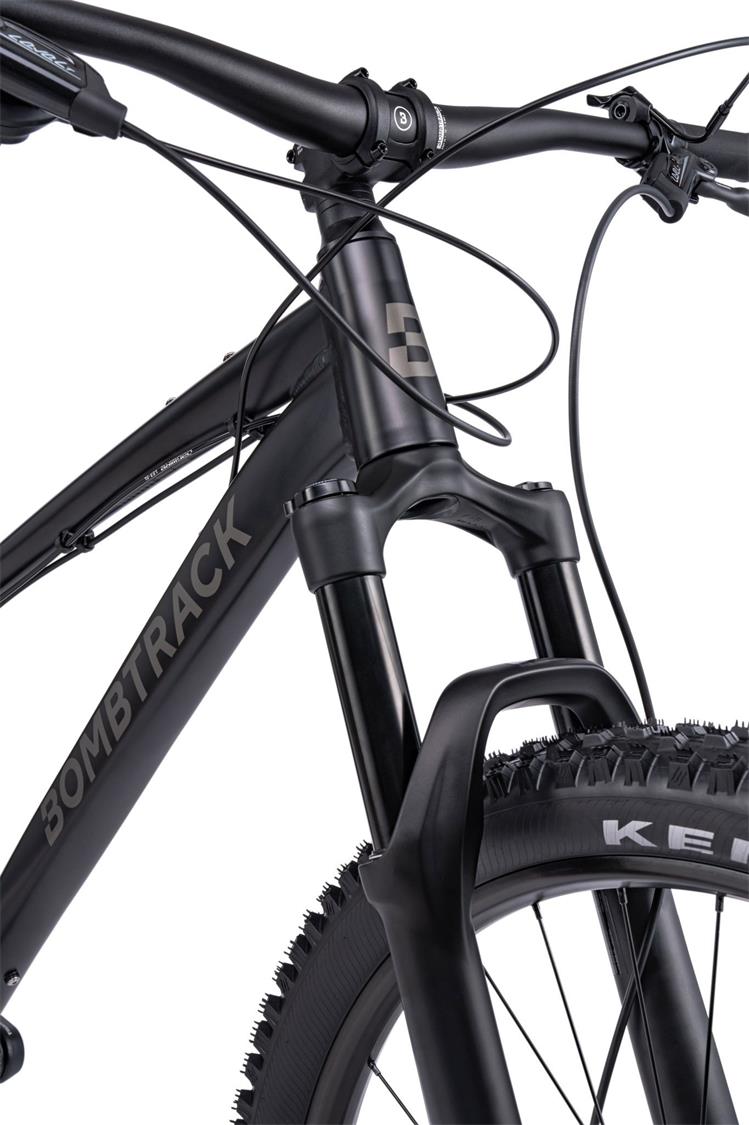

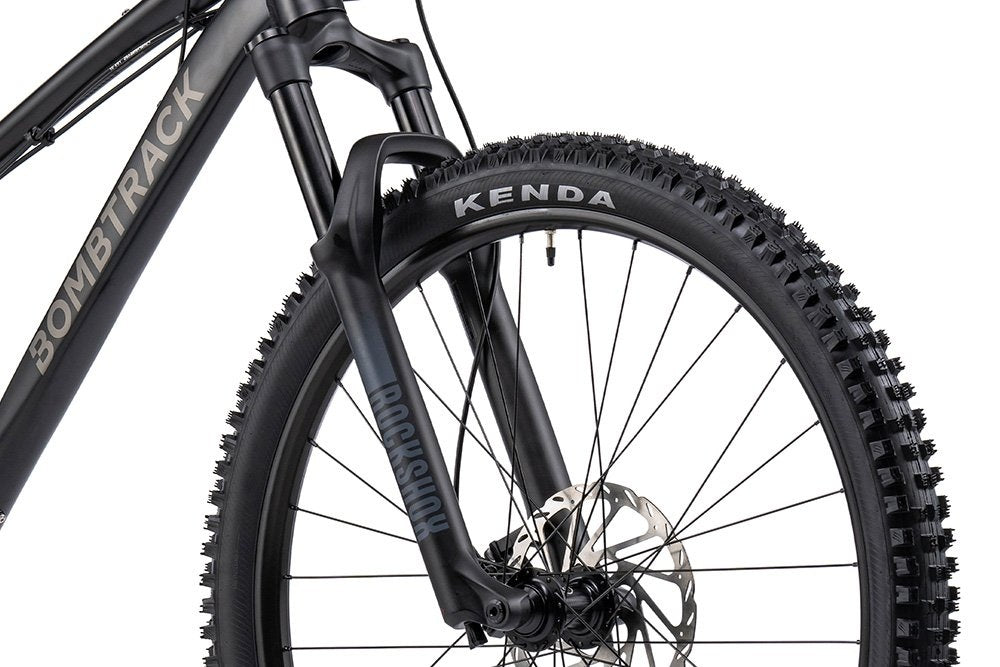

Fork	RockShox 35 Gold RL suspension fork, 130 mm travel, 1.1/2" - 1.1/8"

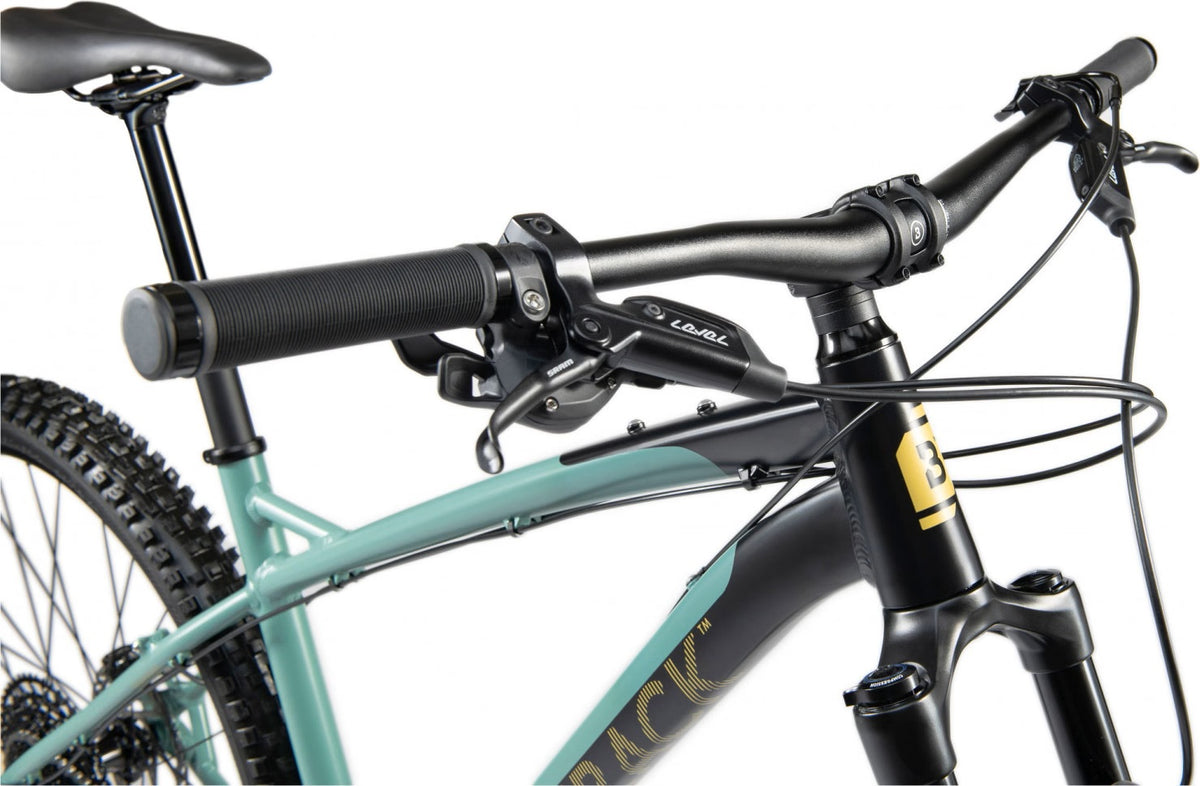

Handlebar	Bombtrack Illusion flat bar, aluminium, 35 mm clamping diameter
Grips	Bombtrack Return 135 mm lock on grips

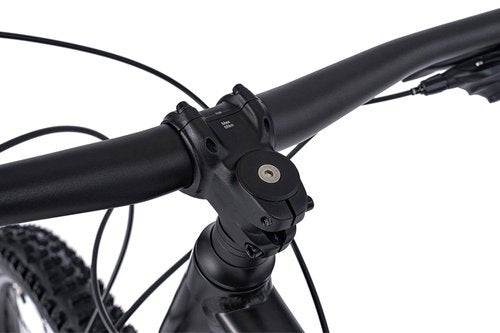

Stem	Seido Drift aluminium stem, 35 mm clamping diameter
Headset	Sealed integrated aheadset, 1.1/2'' - 1.1/8''
Levers	Sram Level hydraulic
Shifter	Sram SX-Eagle 12-speed shifter

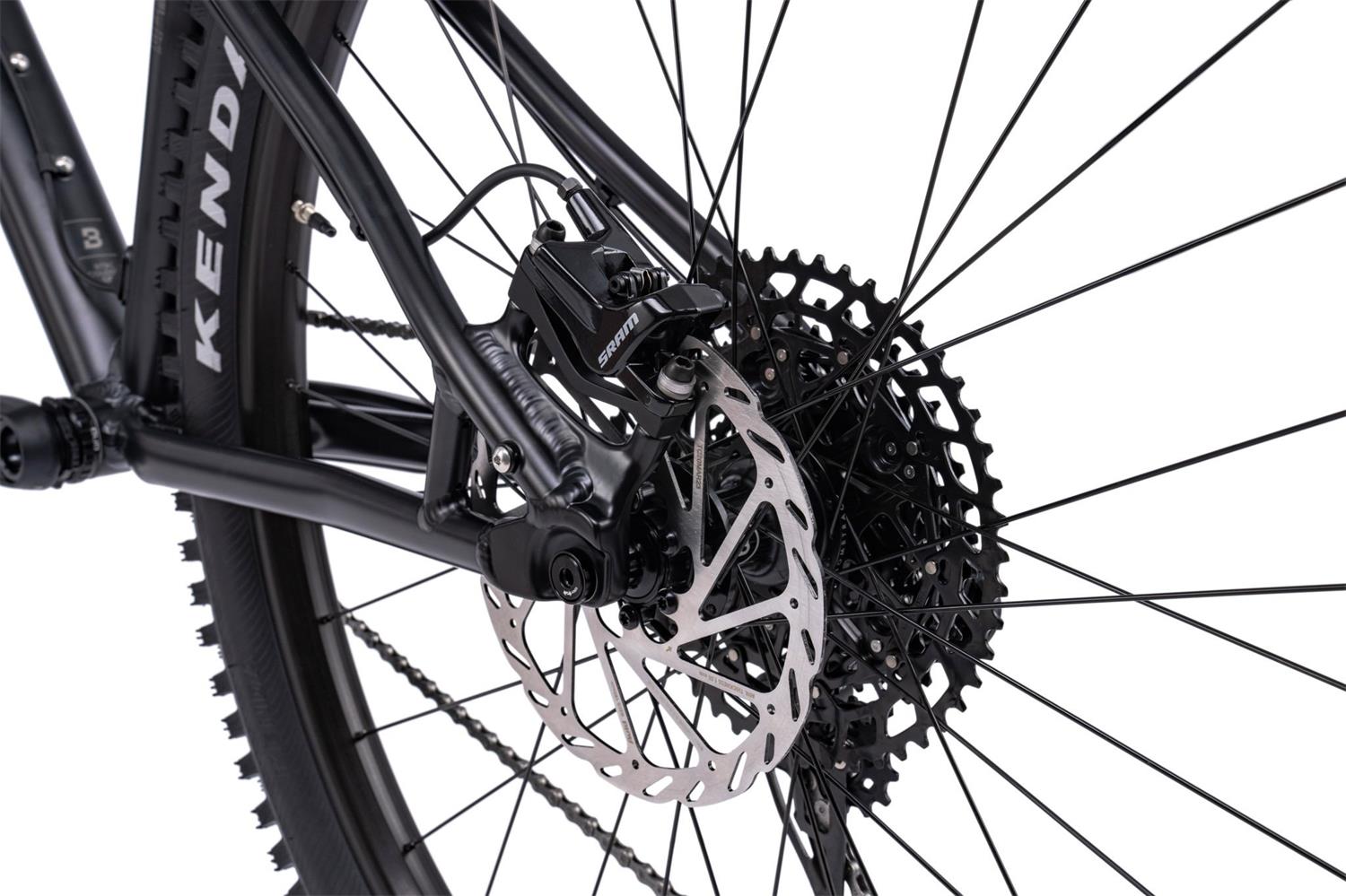

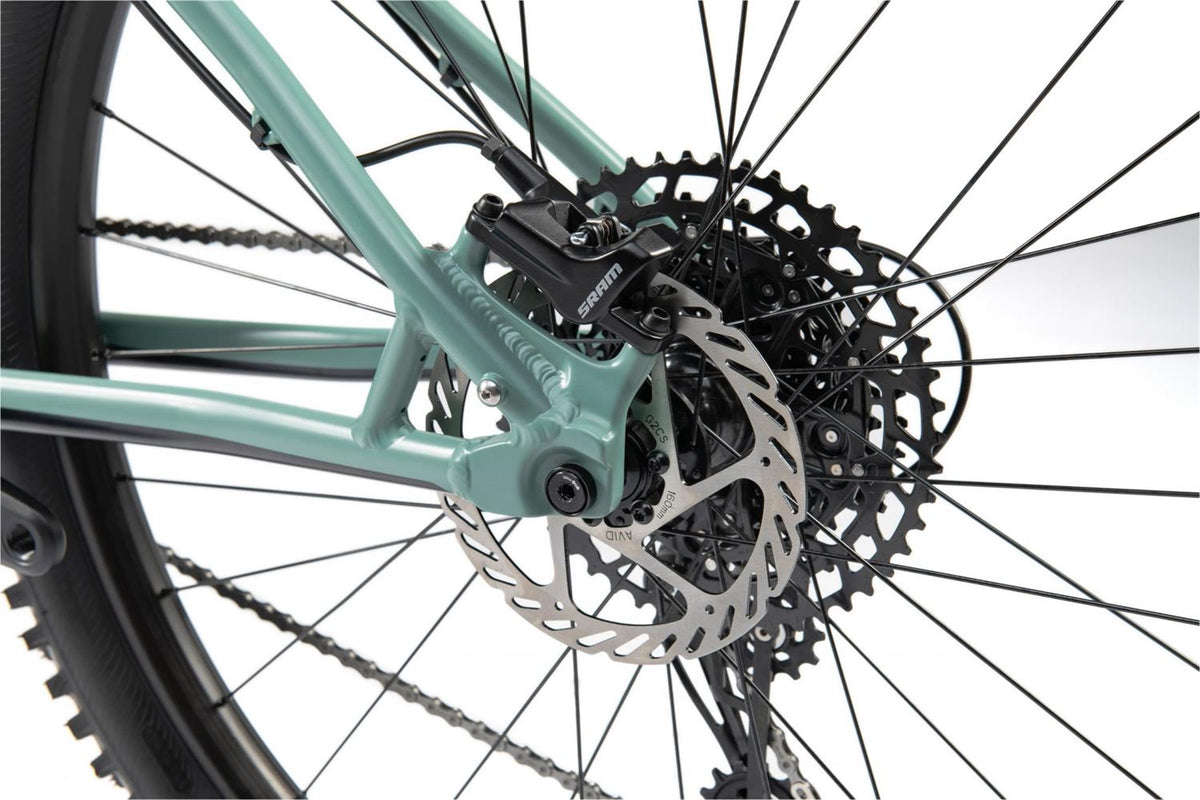

Brakes	Sram Level hydraulic disc brakes
Rotor	Sram G2 Cleansweep 180 mm front and 160 mm rear rotor

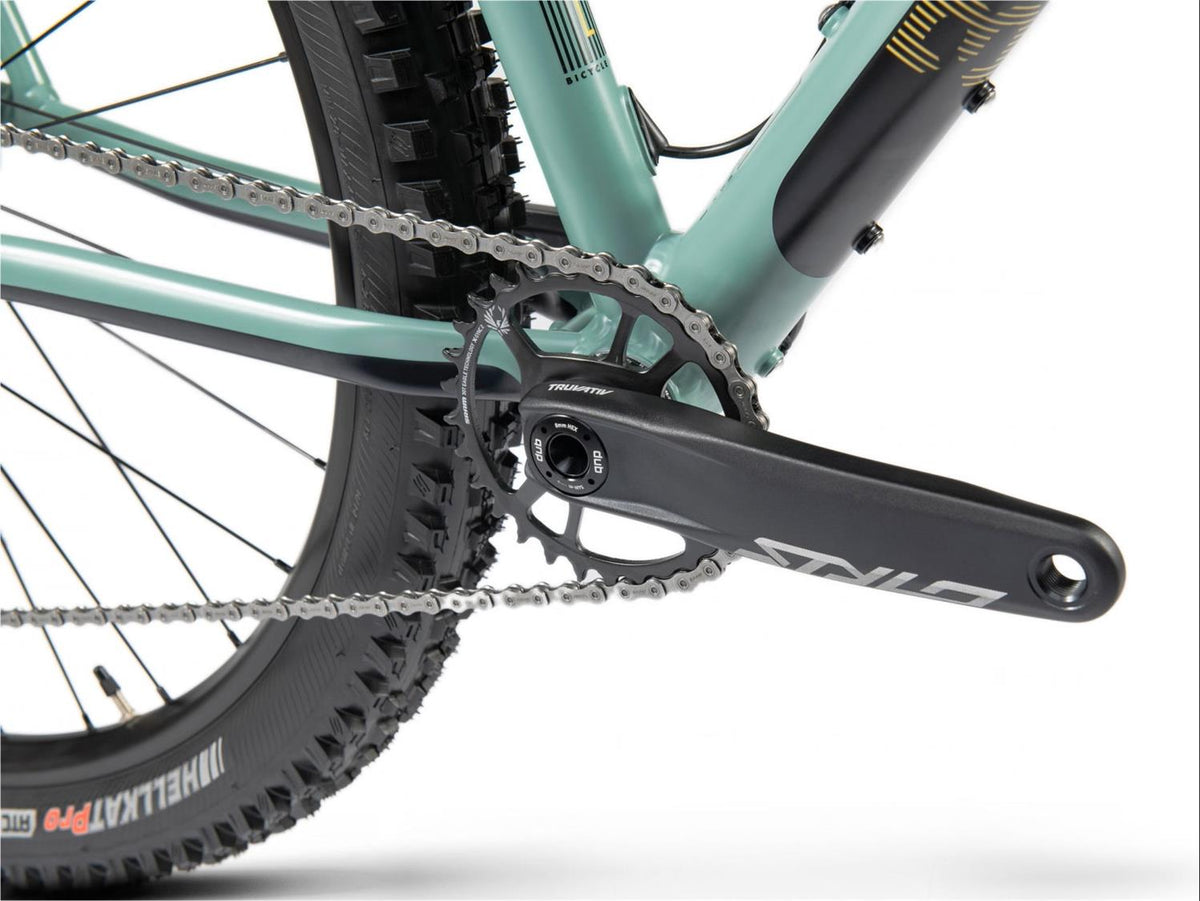

Crankset	Truvativ Stylo 6K aluminium crank, Boost DUB
BB	Sram DUB BSA 73 mm
Pedals	-
Chain	Sram NX Eagle chain, 1/2'' x 11/128'', 114L
Chainring	Sram Eagle X-Sync 2, narrow-wide, 30 T
Cassette	Sram PG-1210 Eagle 12-speed, 11 - 50 T
Front derailleur	-

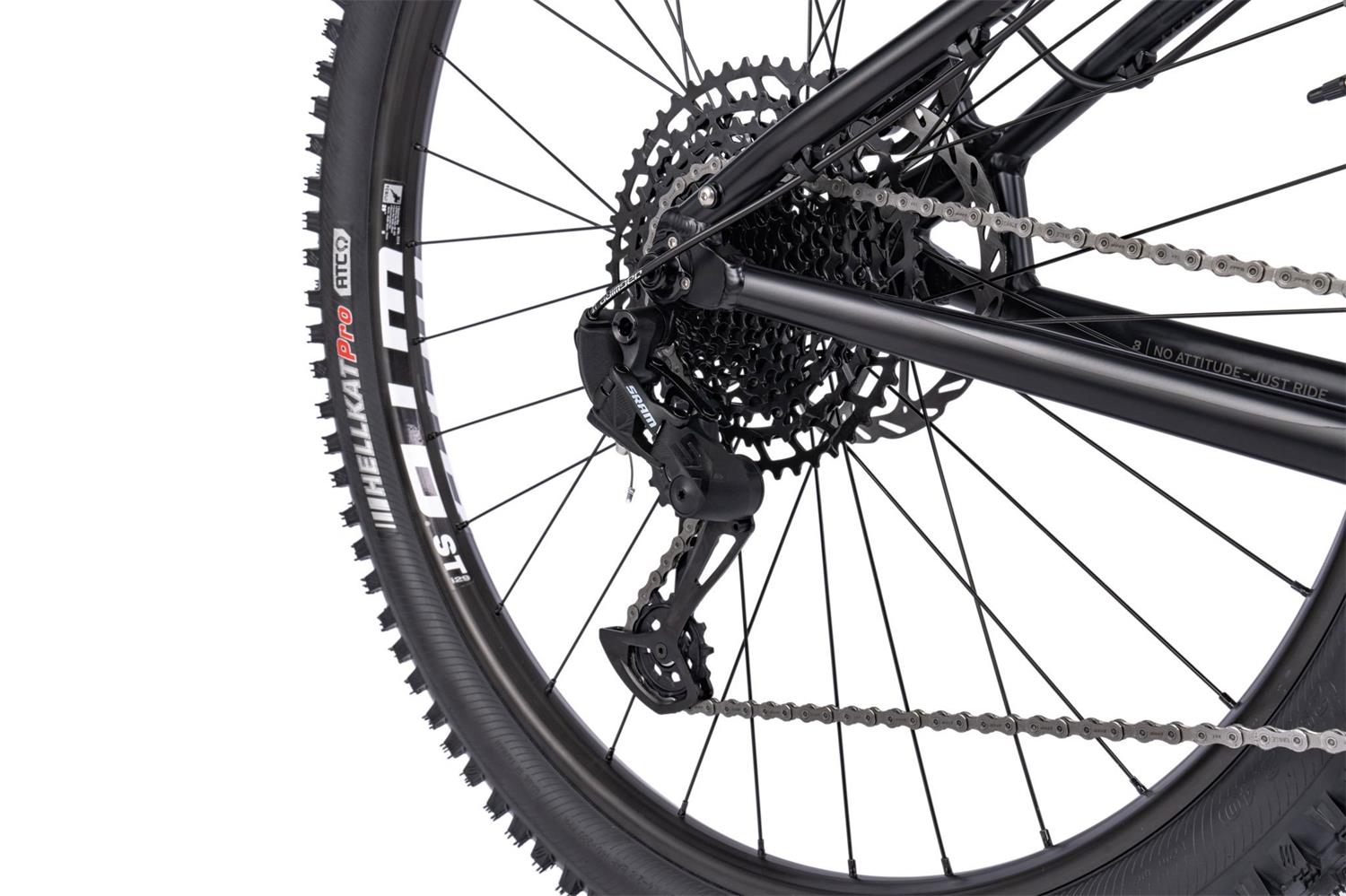

Rear derailleur	Sram SX Eagle, clutch, long cage

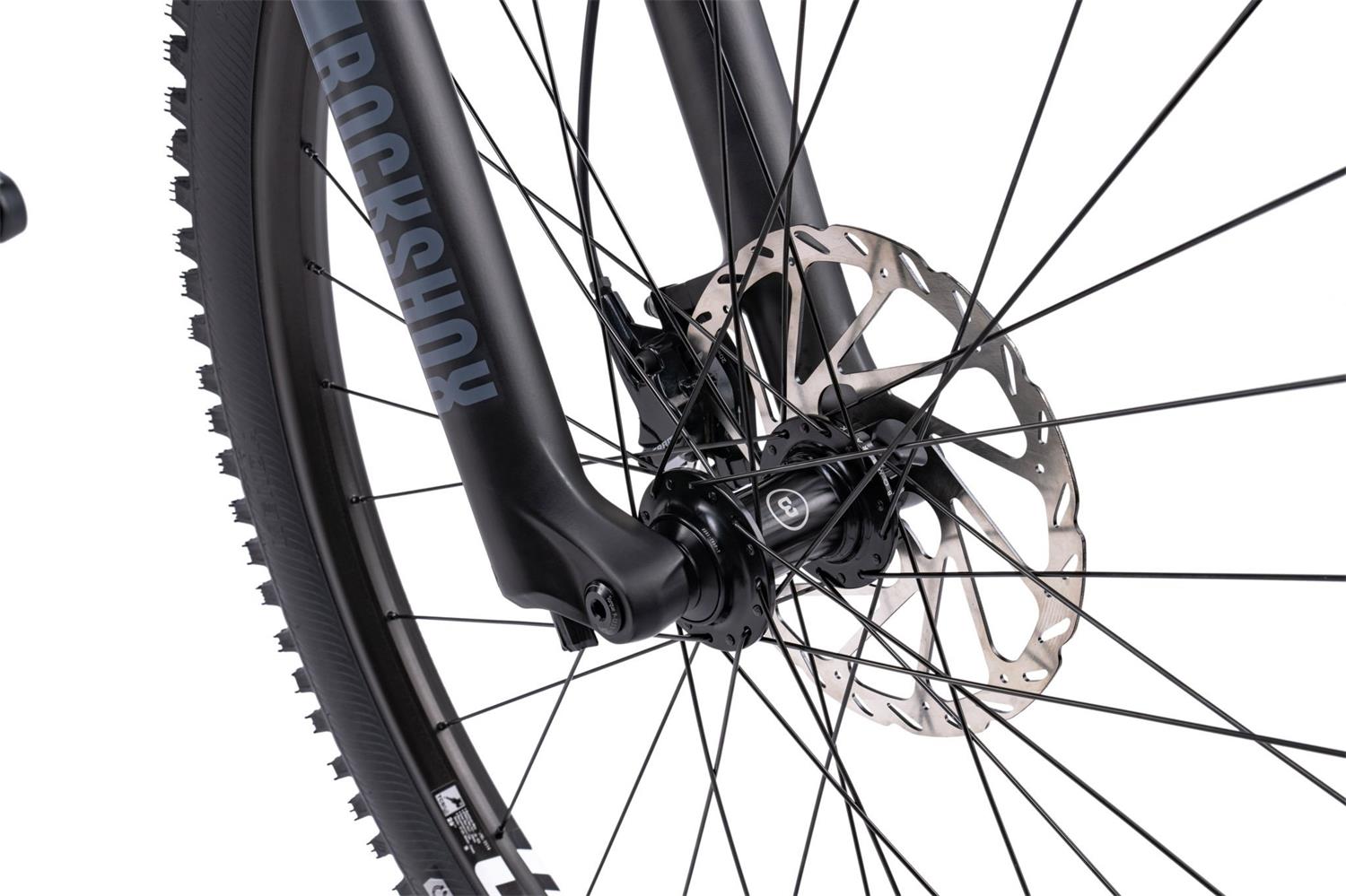

Front hub	Bombtrack Grad Boost sealed hub, 6-bolt disc
Rear hub	Bombtrack Grad Boost sealed hub, HG driver, 6-bolt disc
Through axle	15 x 110 mm / 12 x 148 mm
Front rim	WTB ST i29 double wall, TCS 2.0, 32h
Rear rim	WTB ST i29 double wall, TCS 2.0, 32h
Saddle	Seido Origin saddle

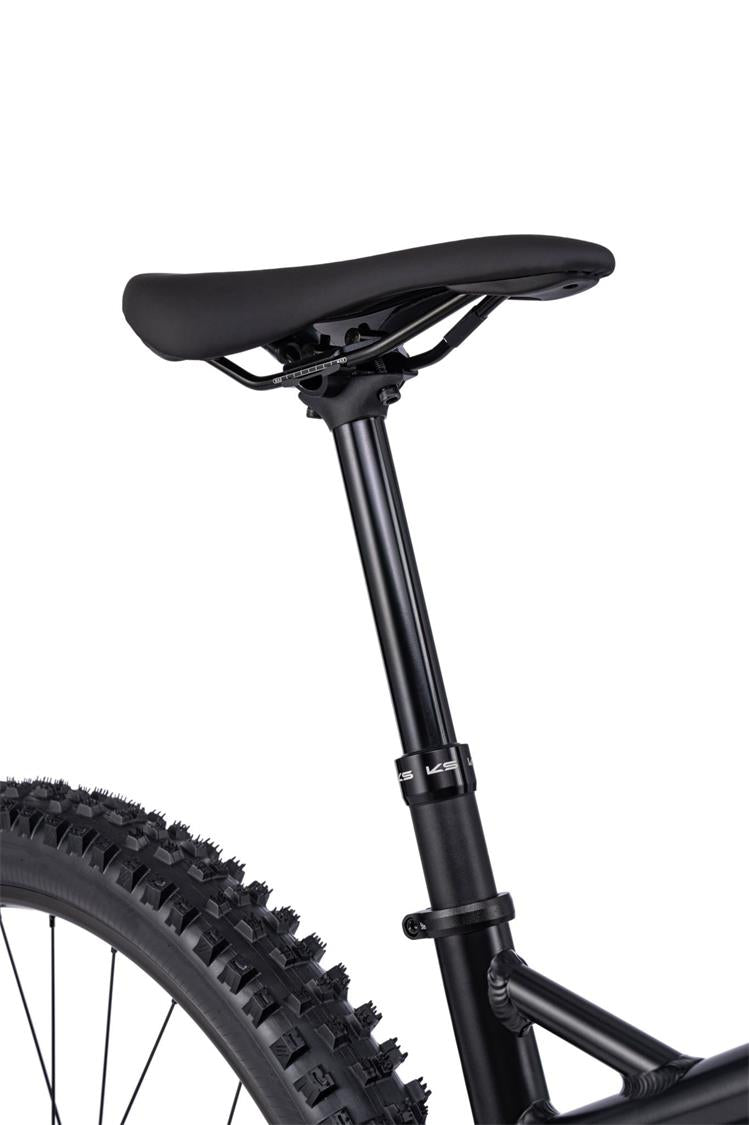

Seat post	KS E20i dropper seatpost, 31.6 mm, 150 mm travel, 474 mm length
Seat clamp	Bombtrack Origin 34.9 mm
Front tire	Kenda Hellcat Pro AEC 29'' x 2.4" TLR, tubeless ready
Rear tire	Kenda Hellcat Pro AEC 29'' x 2.4" TLR, tubeless ready
Weight	13.8 kg (size M)
Weight frameset	2100 g frame (size L, incl. TA, hanger)
Maximum rider weight	140 kg incl. luggage
ASTM riding condition	4
