Bombtrack Beyond +

Regular price: $3,399.00
Regular price
Sale price: $3,399.00
Unit price: per

Brand: BMBTRCK

Product variants

Description

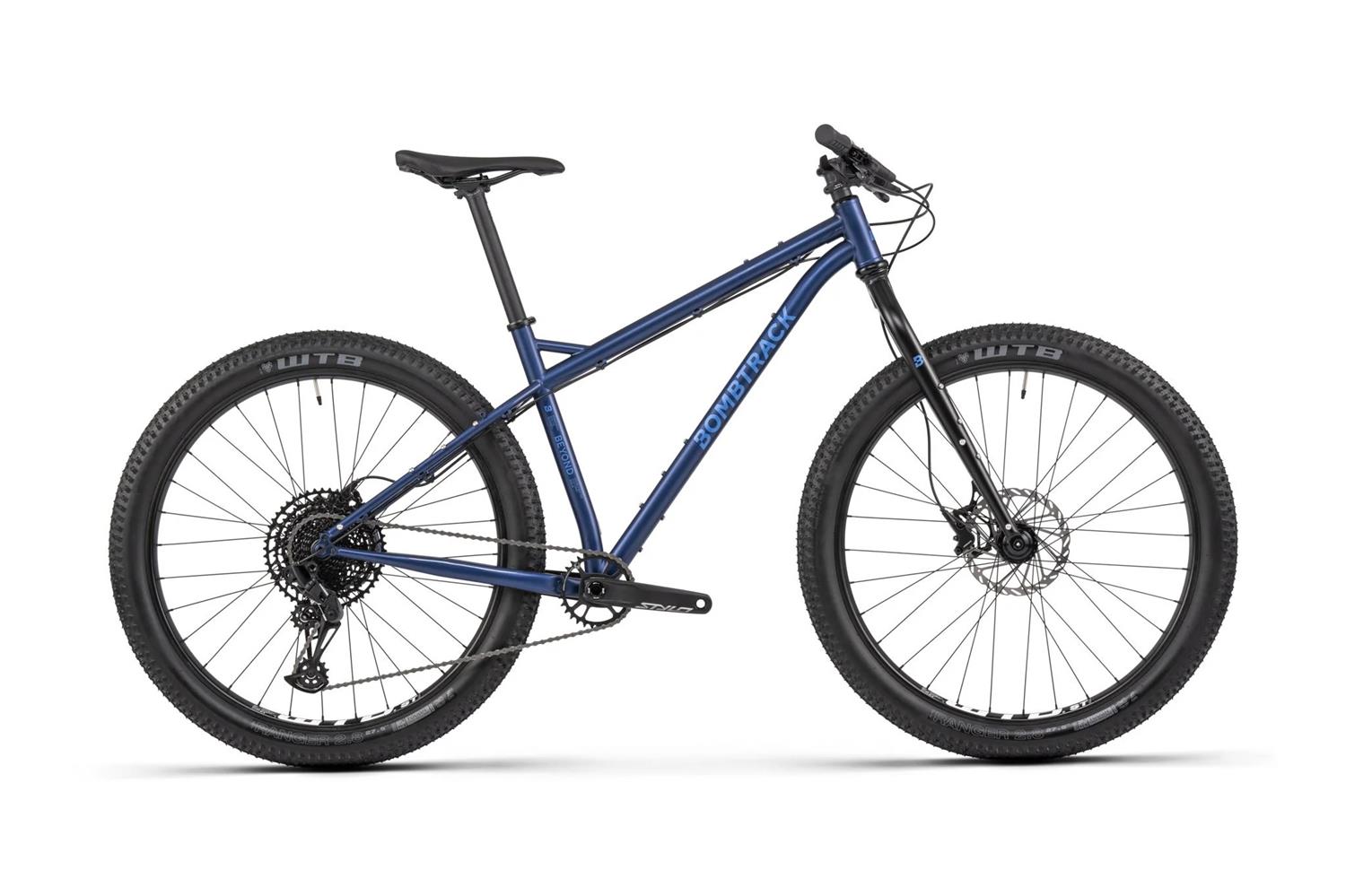

If you’re looking for a rigid adventure bike that you can also chuck around in the woods and isn’t phased by technical singletrack, then our Beyond+ is spot on. Starting with a double butted steel suspension corrected frame with a quad-butted ovalized downtube and matching Seido Steel BPS fork, this is the 4 x 4 of the Beyond line, capable of swallowing huge 27.5 x 2.8’’ WTB Ranger rubber on wide 35 mm rims for that go anywhere experience. Both frame and fork come with multiple mounting points, including offset triple cage mounts on the seat stays and forward-facing mounts on the fork for maximum clearance. Load it up and head off anywhere.

"Lively when ridden unloaded, the Beyond+ remains stable once laden with bikepacking bags."

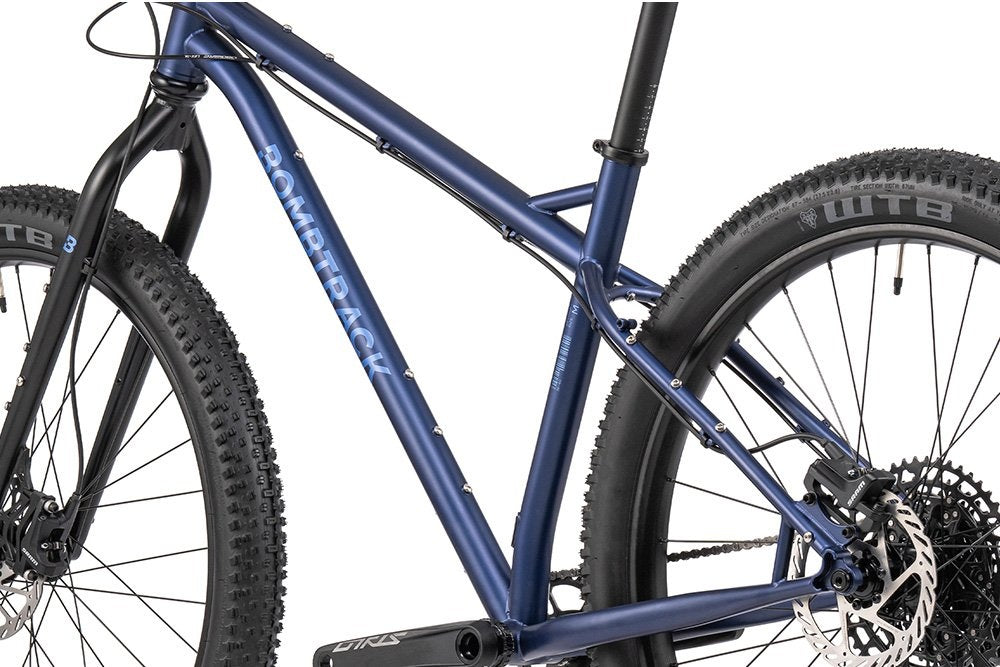

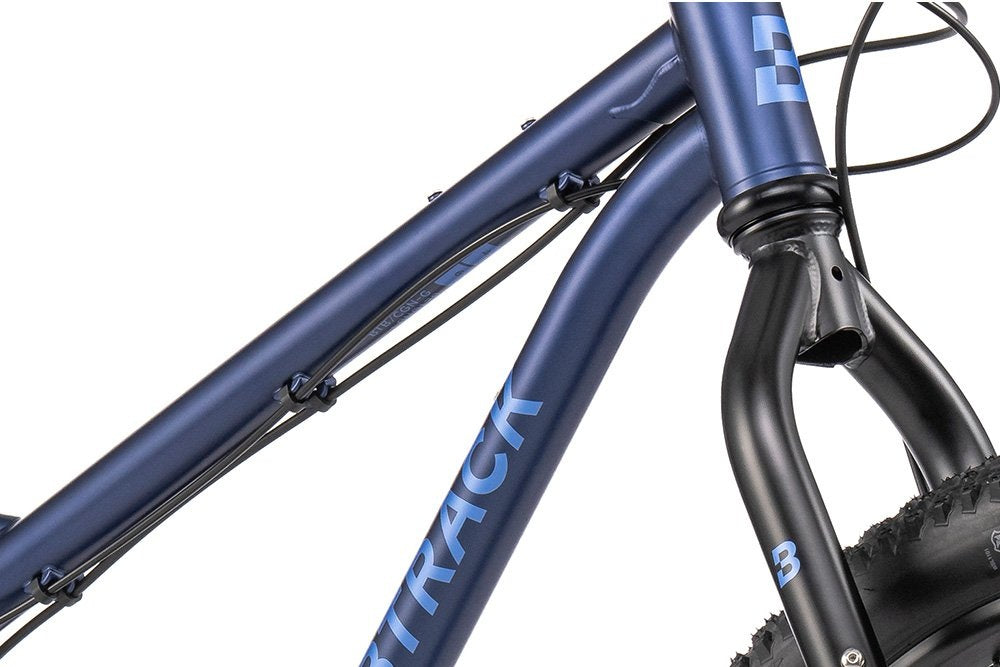

Frame	4130 double butted crmo, TA, rack / fender mounts, Boost spacing, stealth dropper ready, 73 mm BSA BB shell ¹

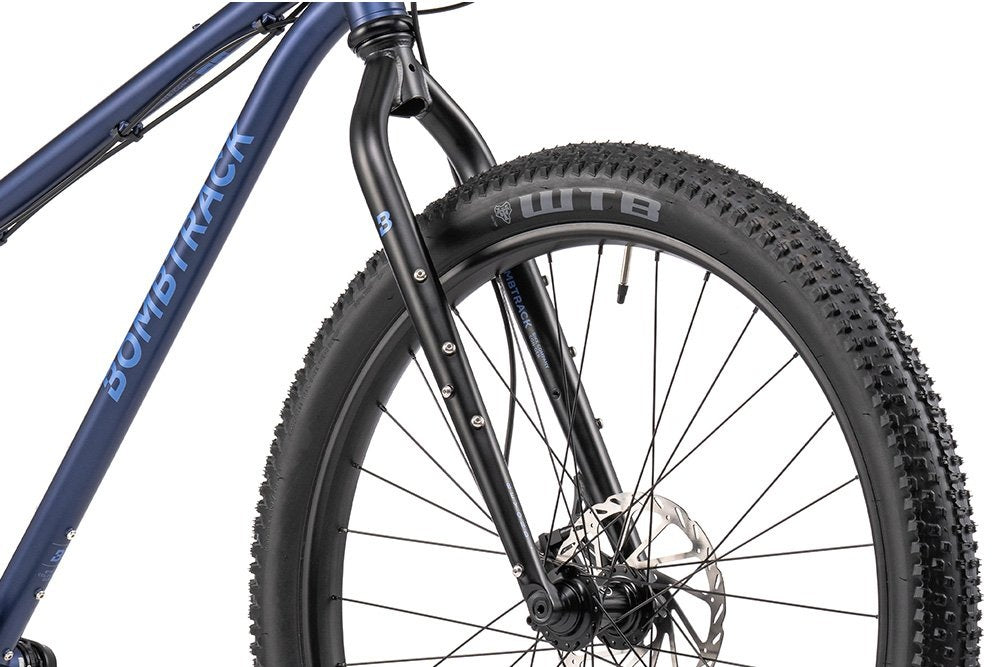

Fork	Seido BPS 4130 crmo, double butted blades, 1.1/2'' - 1.1/8'', fender / rack / triple cage mounts, internal hub dynamo cable routing

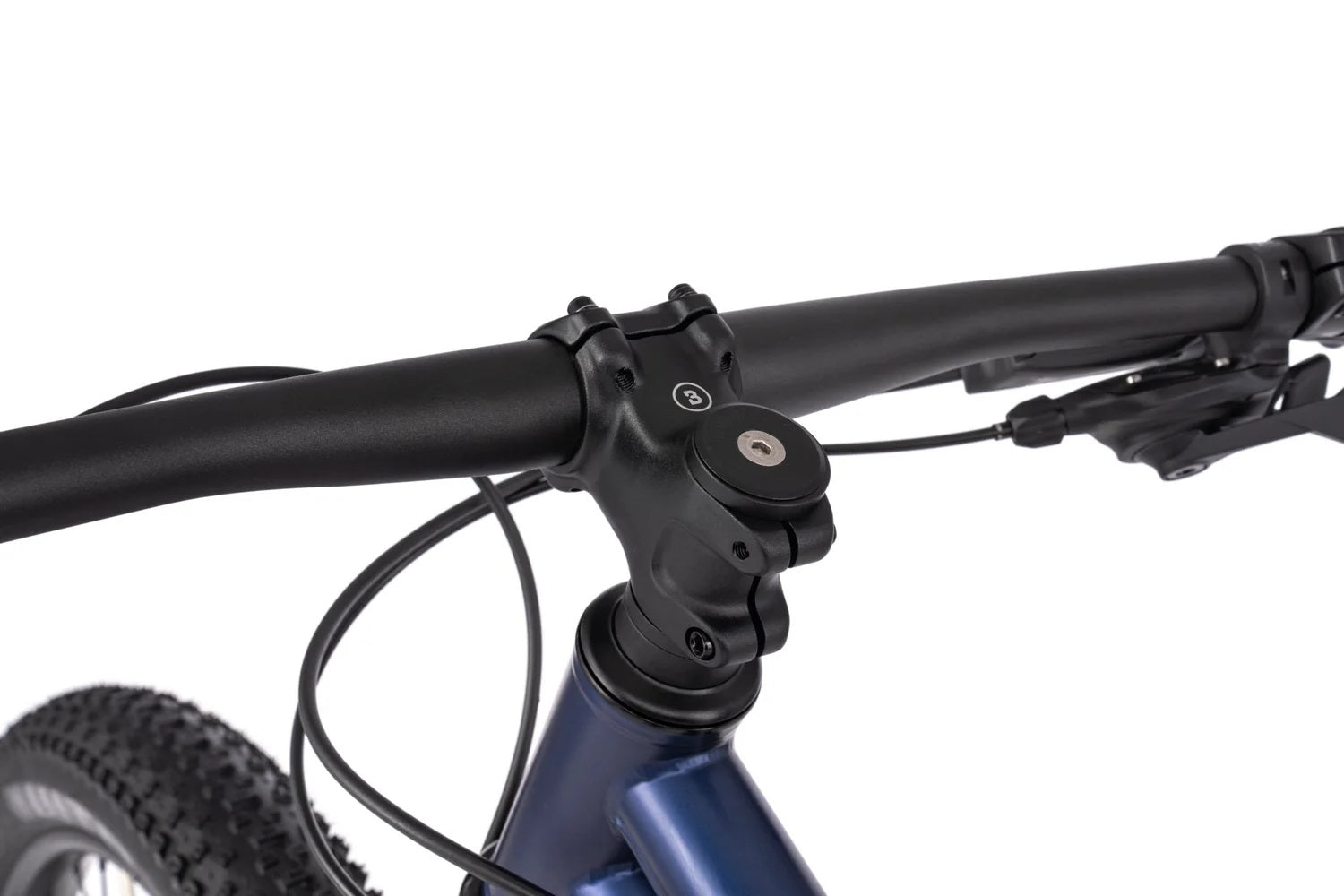

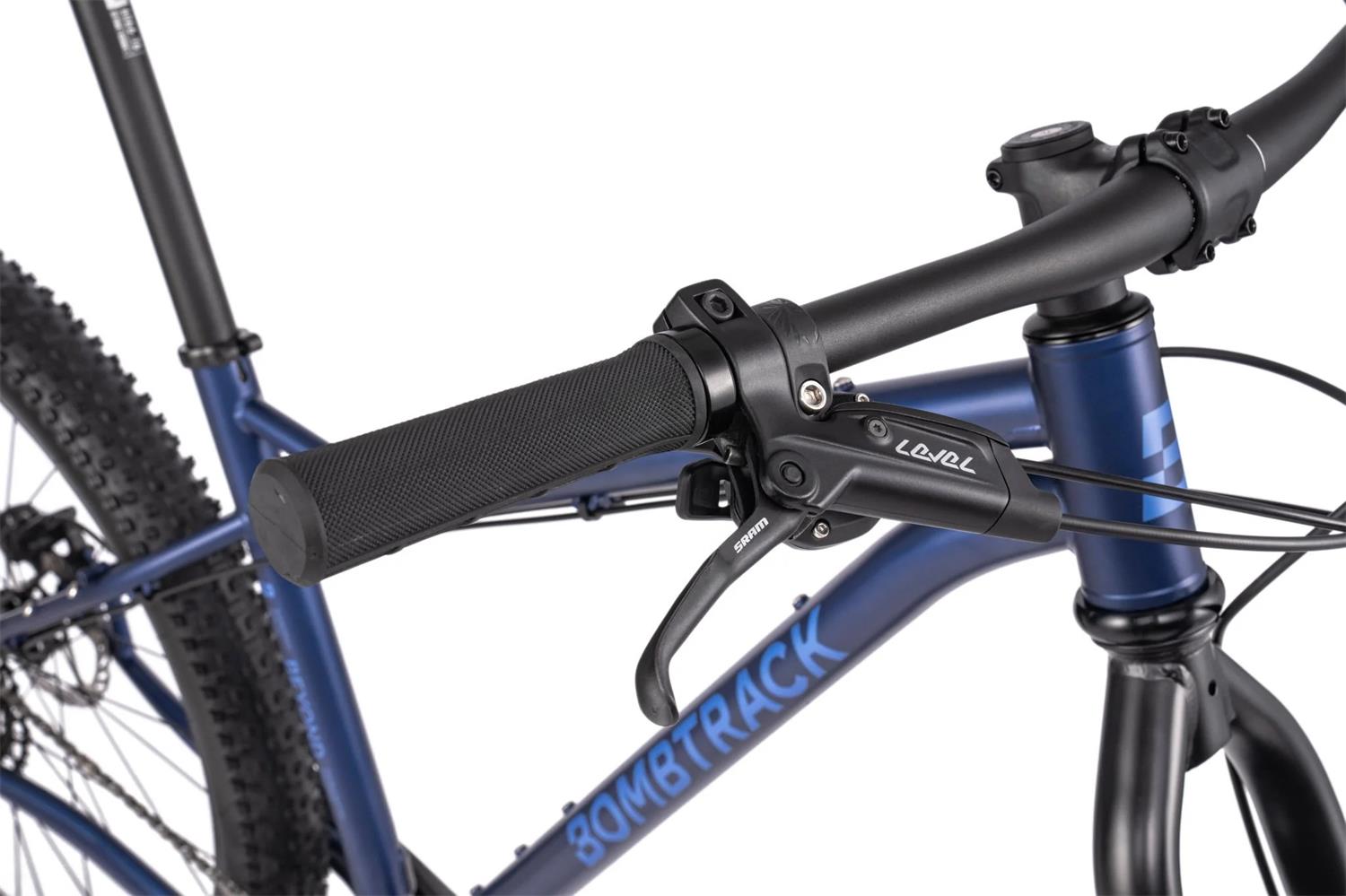

Handlebar	Bombtrack Trail flat bar, 31.8 mm, 9° backsweep, 4° upsweep, 7 mm rise
Grips	Bombtrack Scroll grips
Stem	Bombtrack Tramp forged aluminium stem, 3°
Headset	Sealed semi integrated / external aheadset, 1.1/2'' - 1.1/8''
Levers	Sram Level hydraulic
Shifter	Sram SX-Eagle 12-speed shifter
Brakes	Sram Level hydraulic disc brakes
Rotor	Sram G2 Cleansweep 180 mm front and 160 mm rear rotor
Crankset	Truvativ Stylo 6K aluminium crank, Boost DUB
BB	Sram DUB BSA 73 mm
Pedals	-
Chain	Sram NX Eagle chain, 1/2'' x 11/128'', 116L
Chainring	Sram Eagle X-Sync 2, narrow-wide, 30 T

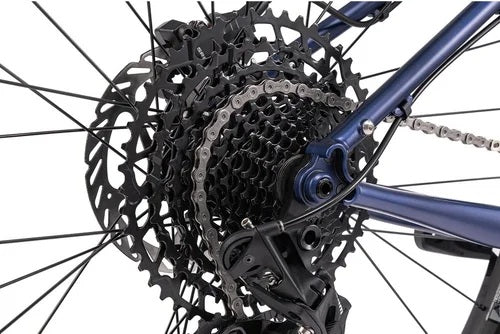

Cassette	Sram PG-1210 Eagle 12-speed, 11 - 50 T
Front derailleur	-
Rear derailleur	Sram SX Eagle, clutch, long cage
Front hub	Bombtrack Grad Boost sealed hub, 6-bolt disc
Rear hub	Bombtrack Grad Boost sealed hub, HG driver, 6-bolt disc
Through axle	15 x 110 mm / 12 x 148 mm
Front rim	WTB ST i35 double wall, TCS 2.0, 32h
Rear rim	WTB ST i35 double wall, TCS 2.0, 32h

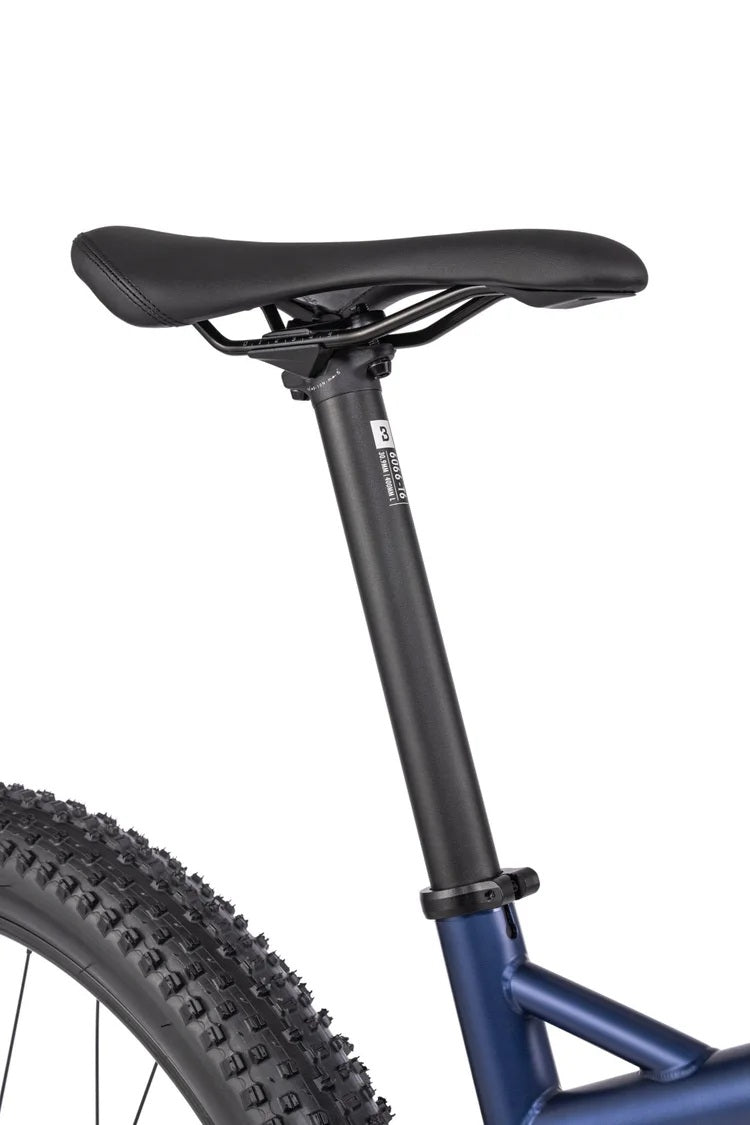

Saddle	Bombtrack Fuzz saddle
Seat post	Bombtrack Yew aluminium seatpost, 30.9 mm x 400 mm
Seat clamp	Bombtrack Origin 34.9 mm
Front tire	WTB Ranger TCS TOUGH / Fast Rolling 27.5'' x 2.8'', tubeless ready

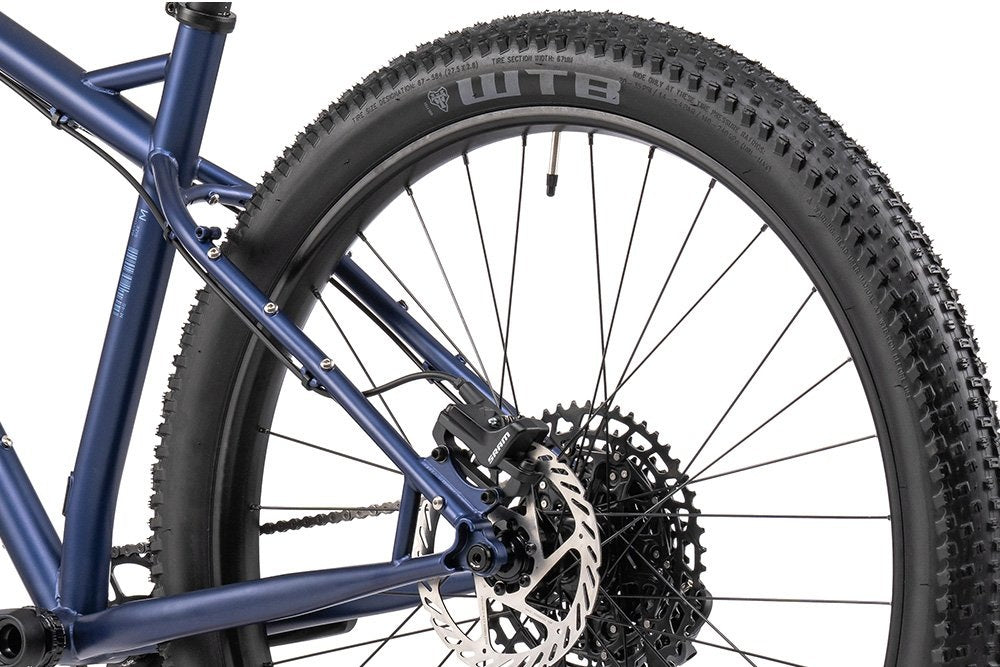

Rear tire	WTB Ranger TCS TOUGH / Fast Rolling 27.5'' x 2.8'', tubeless ready
Weight	14.4 kg (size M)
Weight frameset	2910 g frame (size M, incl. TA, hanger)
Maximum rider weight	165 kg incl. luggage
ASTM riding condition	3

¹ Triple cage mounts on seat stays might fit cargo cages depending on foot position and shoe size. We can't guarantee sufficient clearance for every possible set up and riding style. Those mounts are not only meant for cages, but can also be used for installing pumps, tools, locks or lights.

Final product may vary in appearance, finish and minor details.
