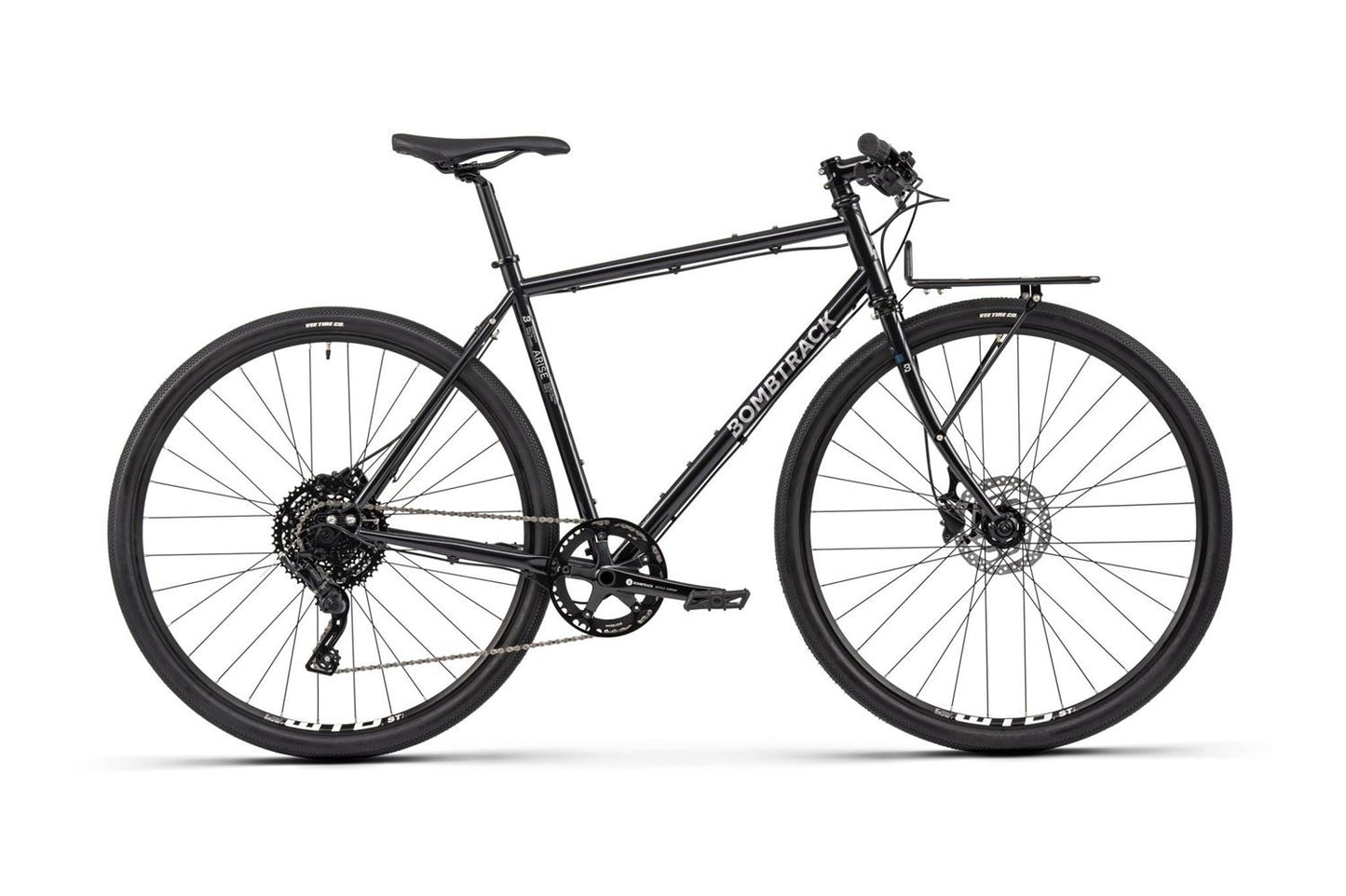

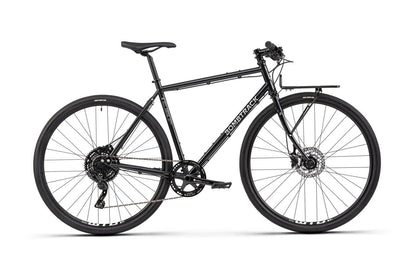

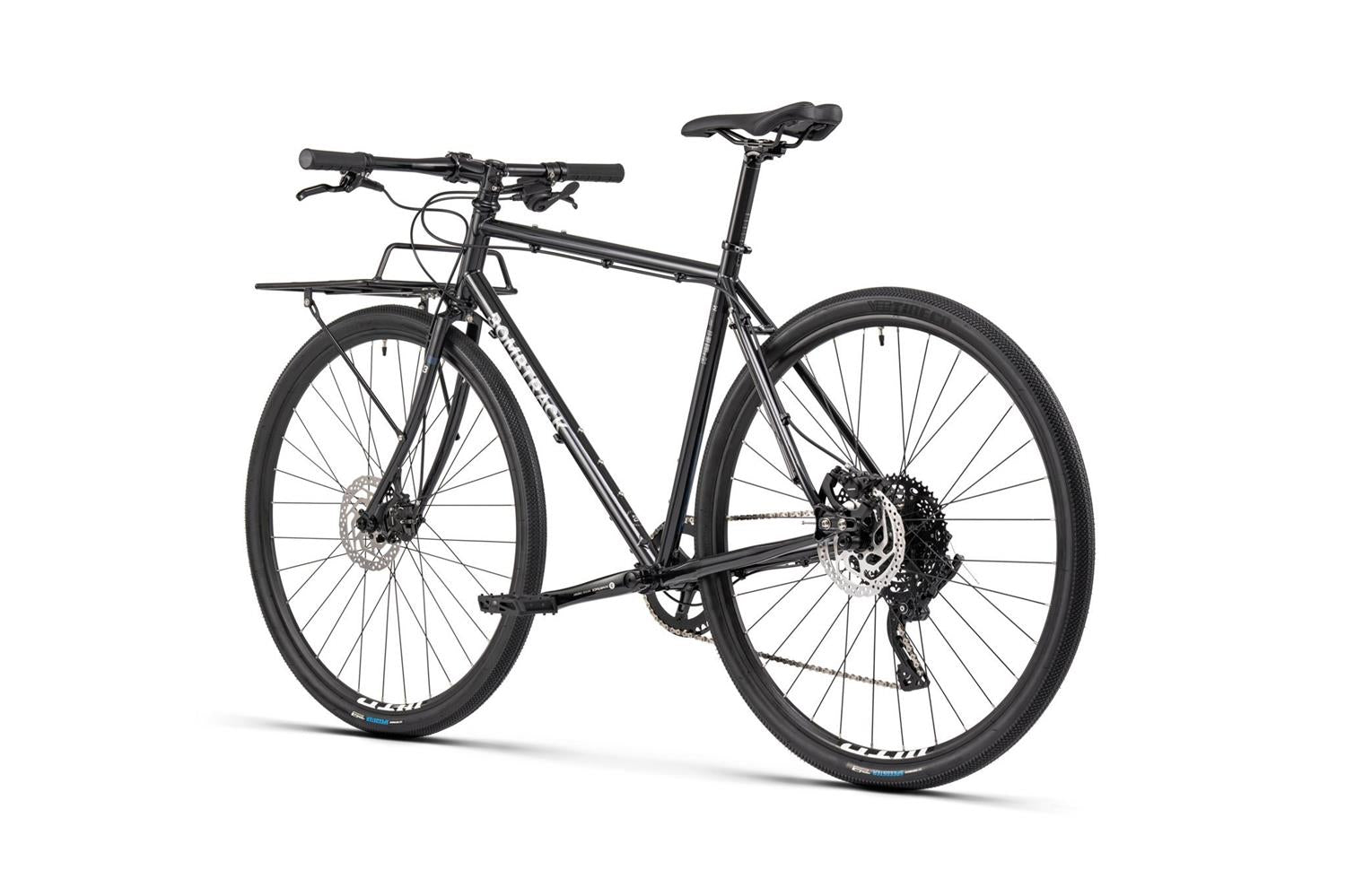

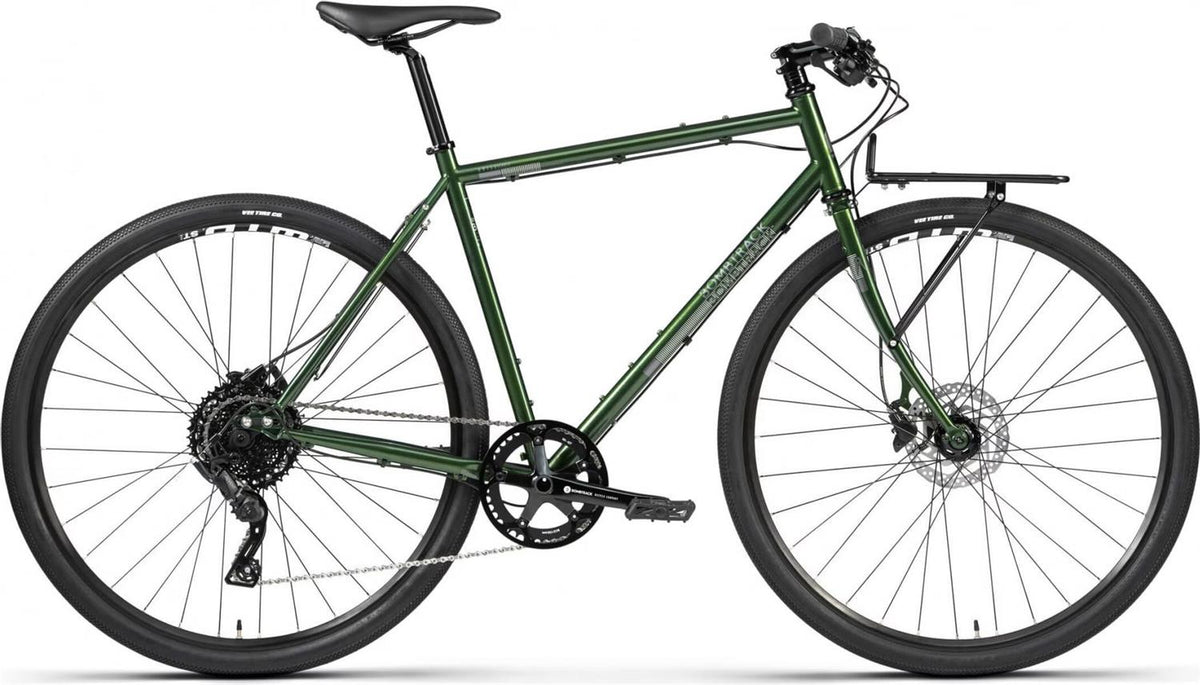

Bombtrack Arise Geared

Regular price: $2,699.00
Regular price
Sale price: $2,699.00
Unit price: per

Brand: BMBTRCK

Product variants

Description

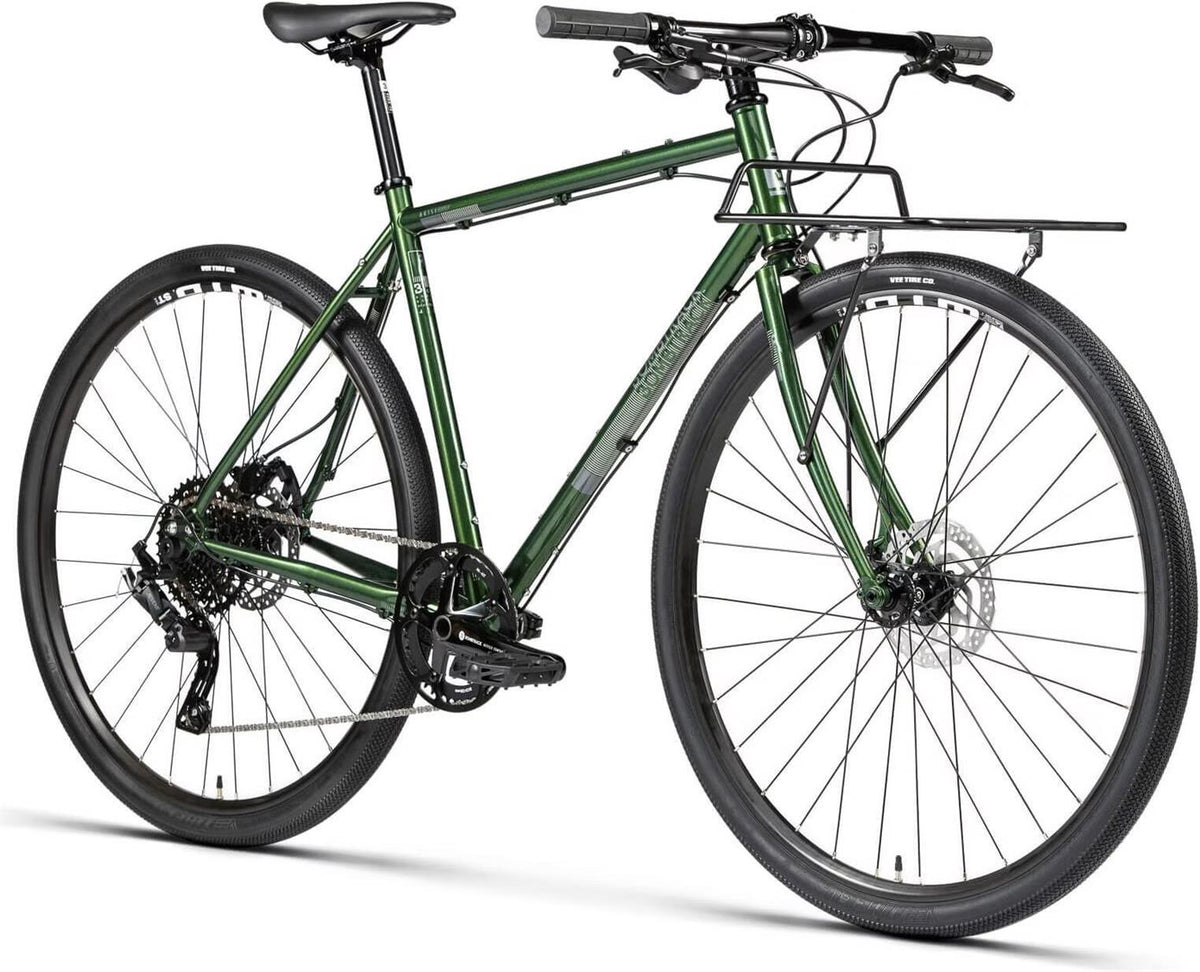

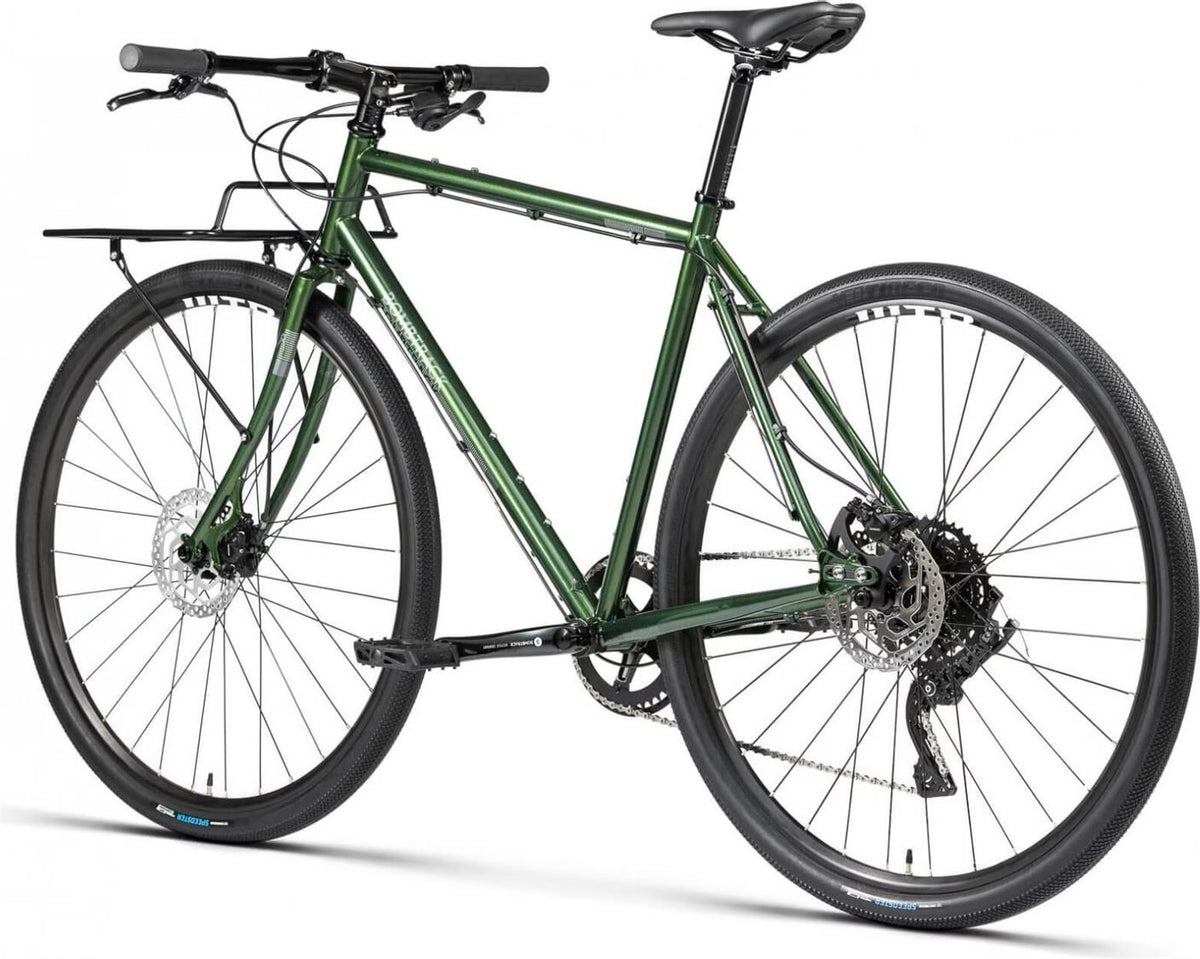

Is it a commuter, a delivery bike or a practical work bike? Our Arise Geared is all three and more. We use the same quality double-butted frame as all our Arise models but now with the addition of a Bombtrack Deck front rack, a Microshift Advent 1 x 9 drivetrain with an 11 – 42T cassette, flat bars and Shimano hydraulic brakes. Wide Vee Tire Speedster tyres are ideally suited to urban road surfaces, with excellent straight-line speed and edge grip for park and towpath ‘shortcuts’.

The Arise Geared is the perfect bike for trips to the shops, commuting, or just loading it up and heading off into the woods for the weekend.

"Offroad commuter, urban hauler, beer & café bike, a once-in-a-while gravel- / mountainbike, even a capable tourer.. – whatever you call it, whatever your proposed usage might be: this one probably can."

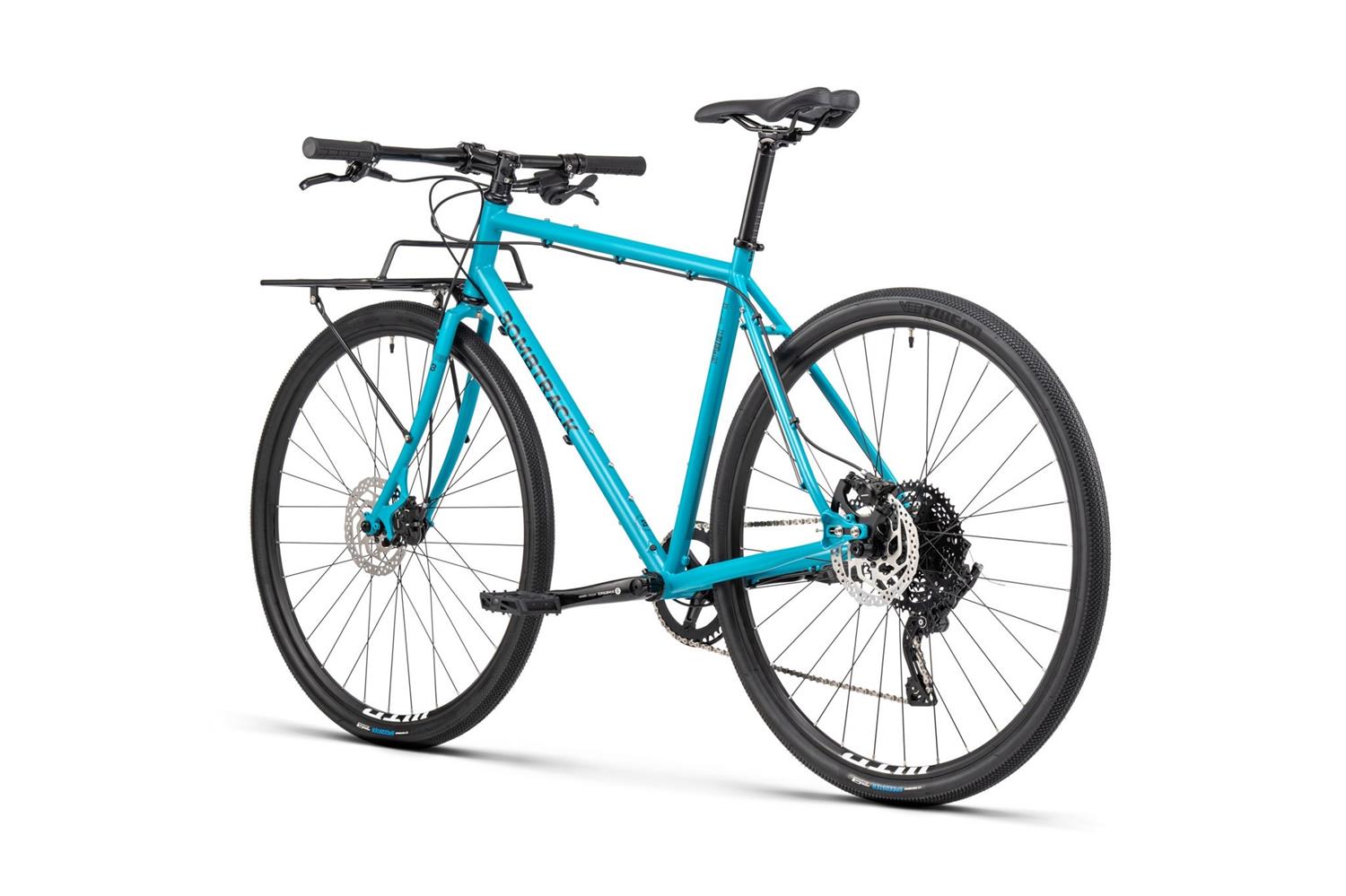

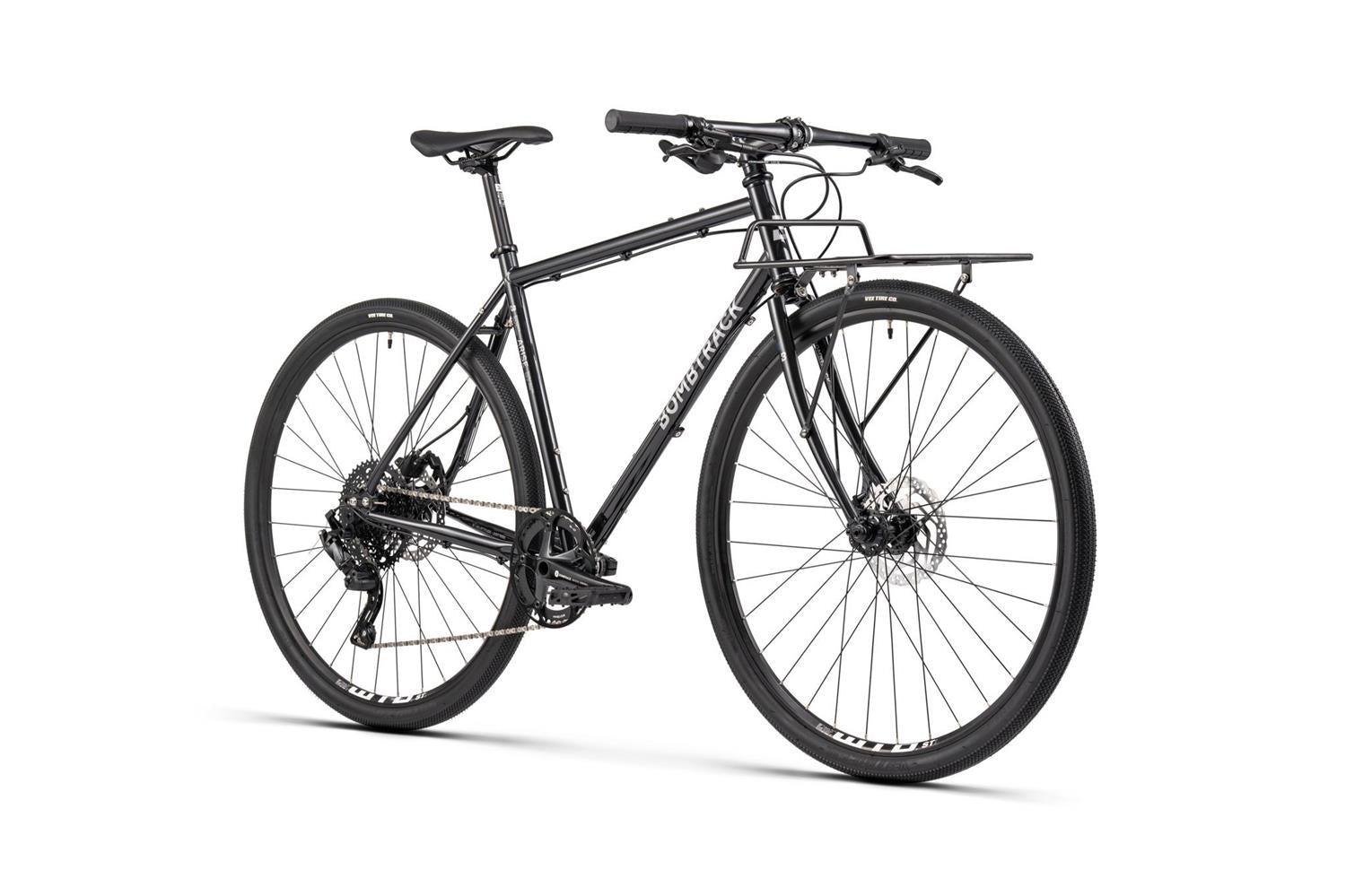

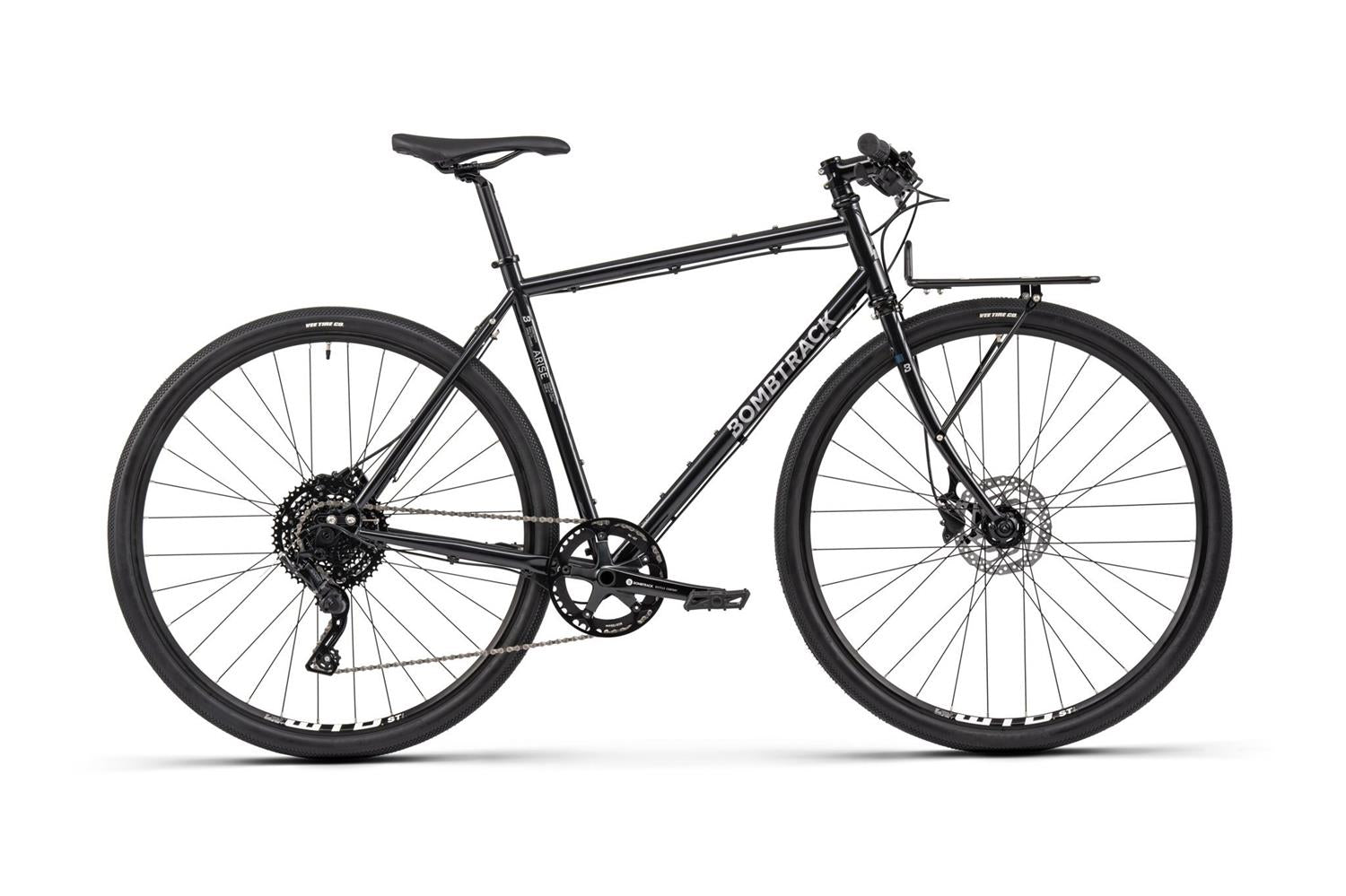

Color 1	Metallic black

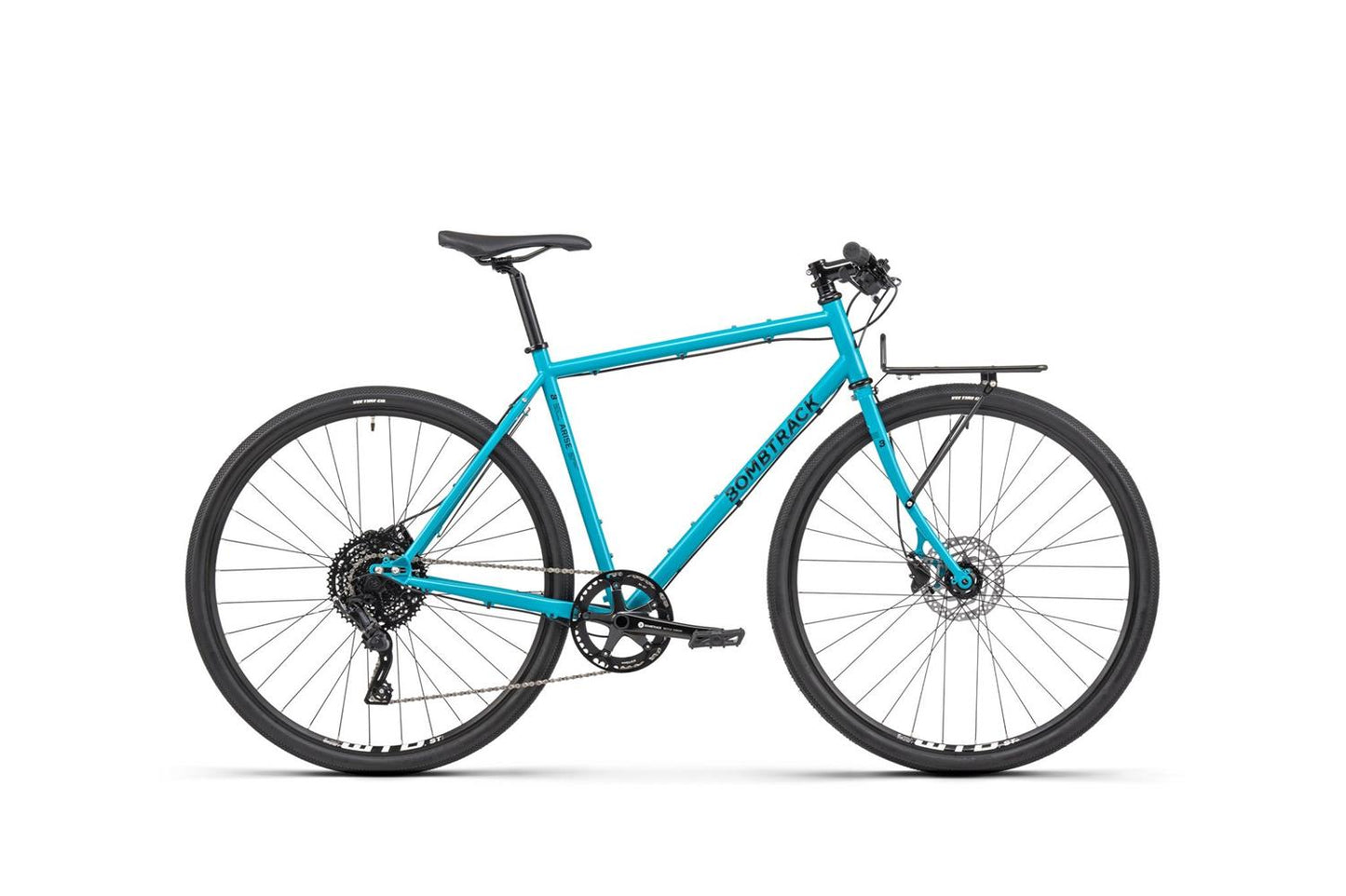

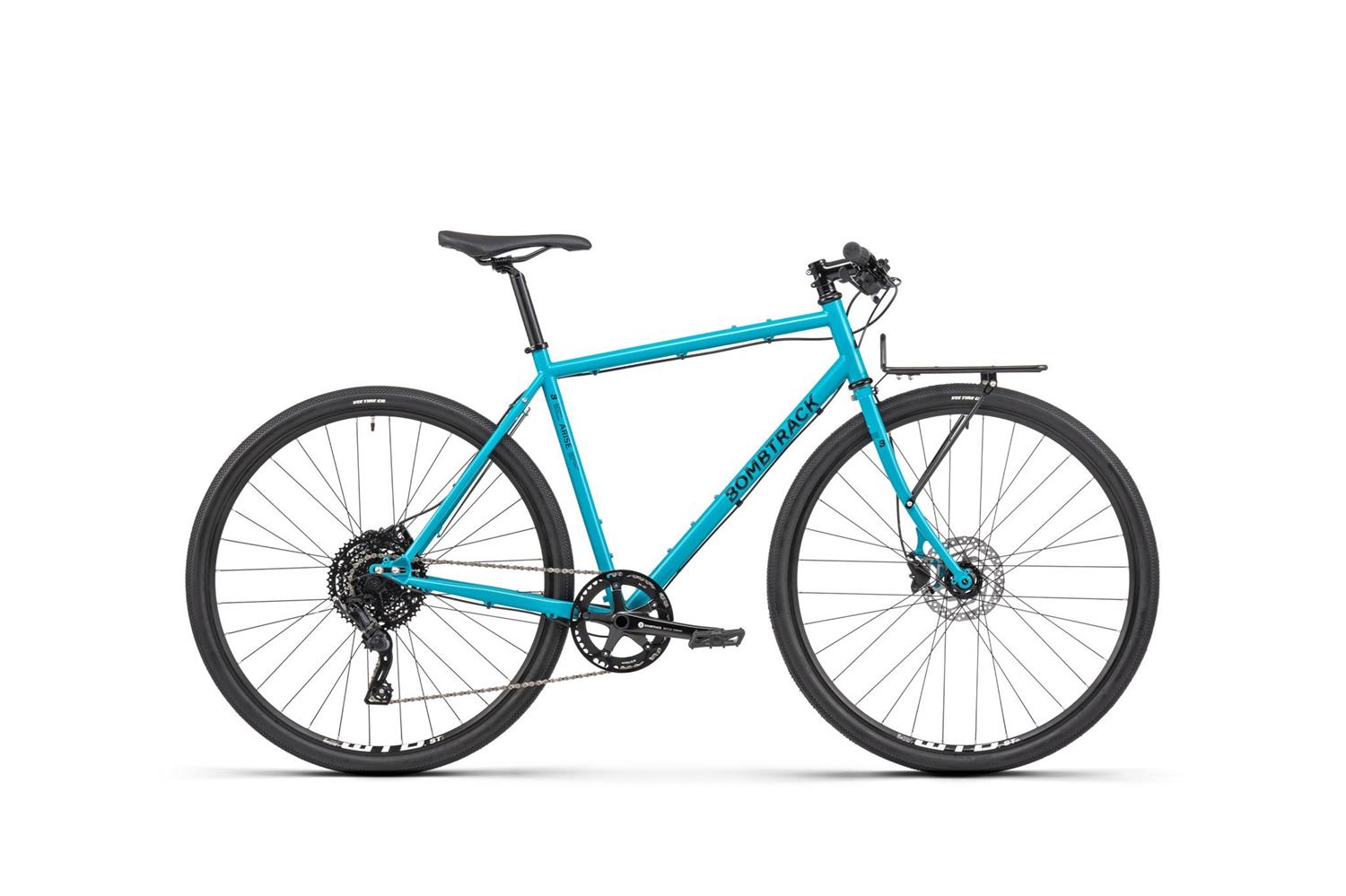

Color 2	Matt petrol blue

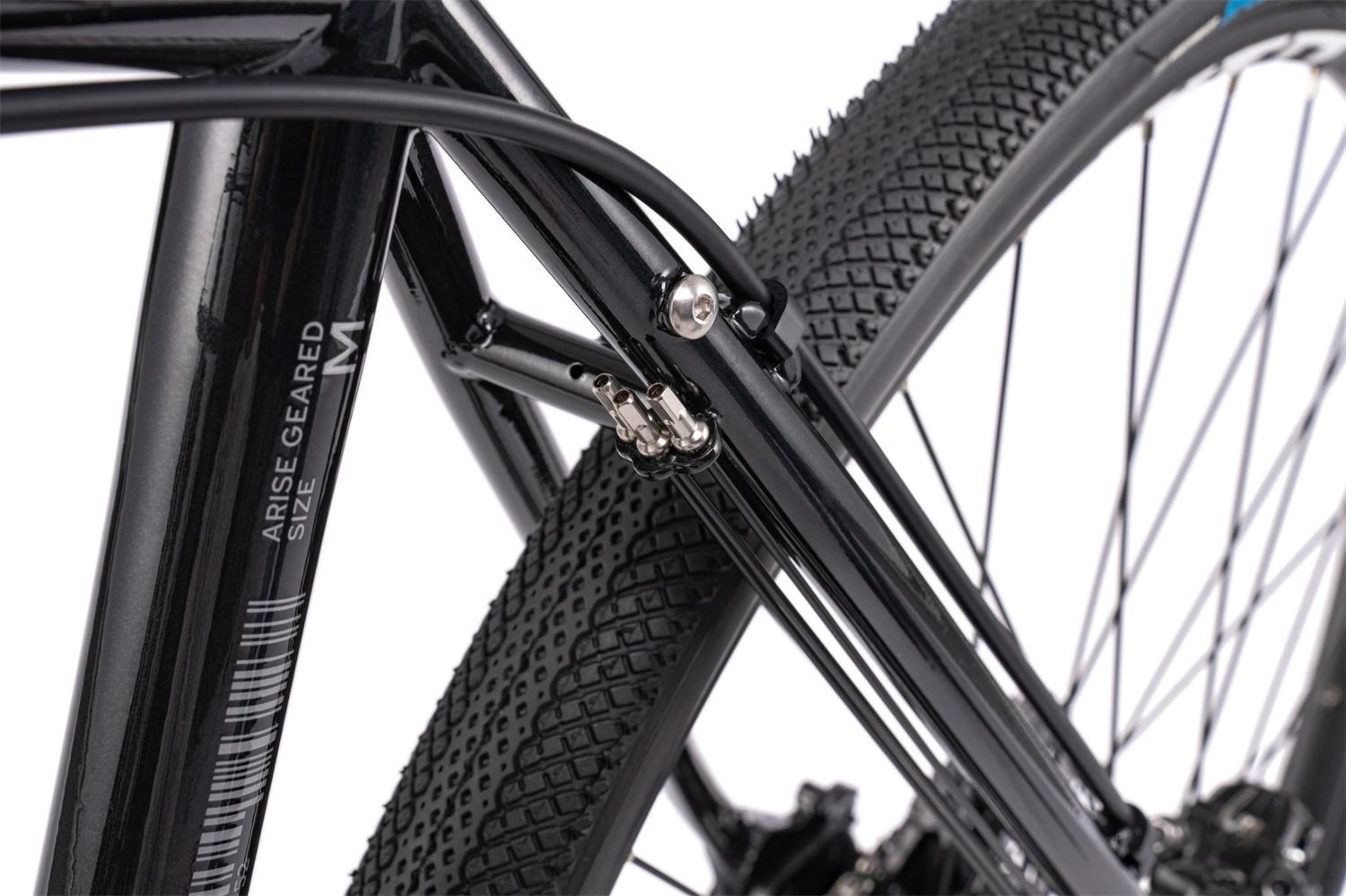

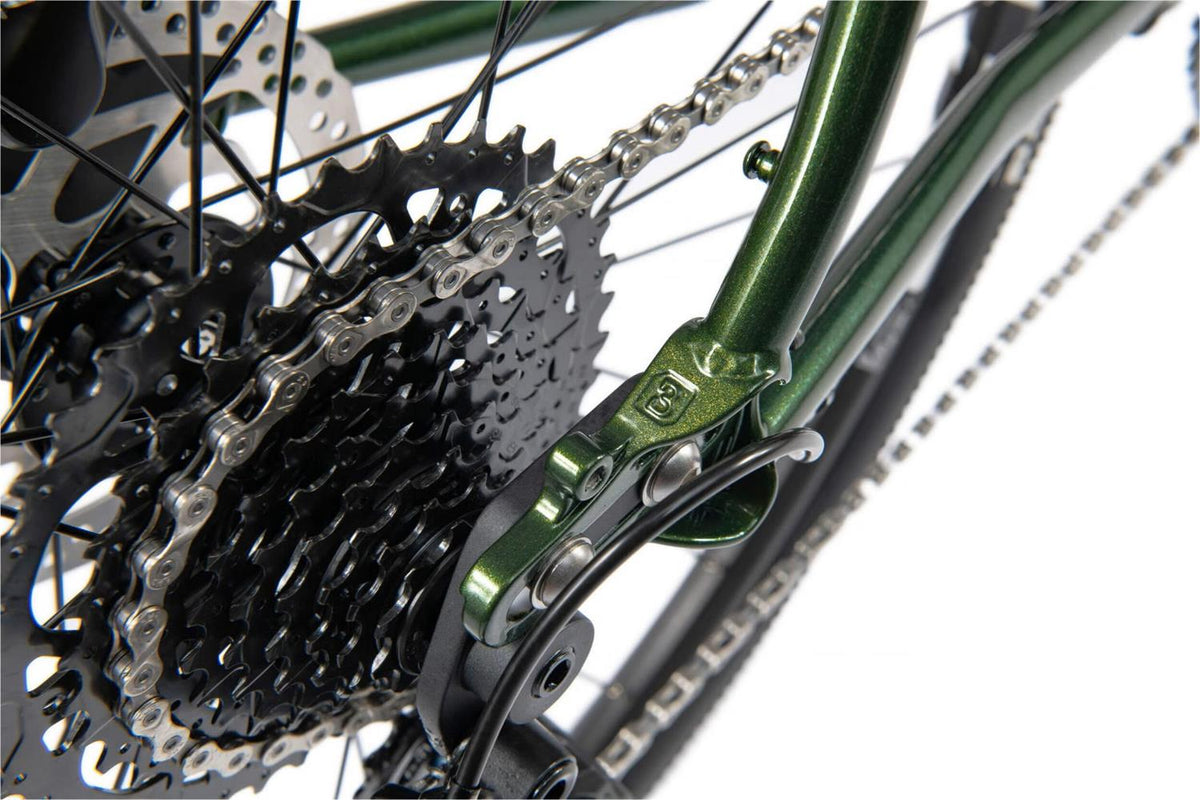

Frame	4130 double butted crmo, heat treated front triangle, TA sliding dropouts, rack / fender mounts, 68 mm BSA BB shell

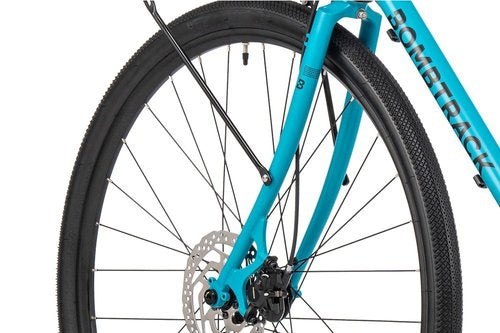

Fork	4130 crmo, TA, rack / fender mounts, internal hub dynamo cable routing

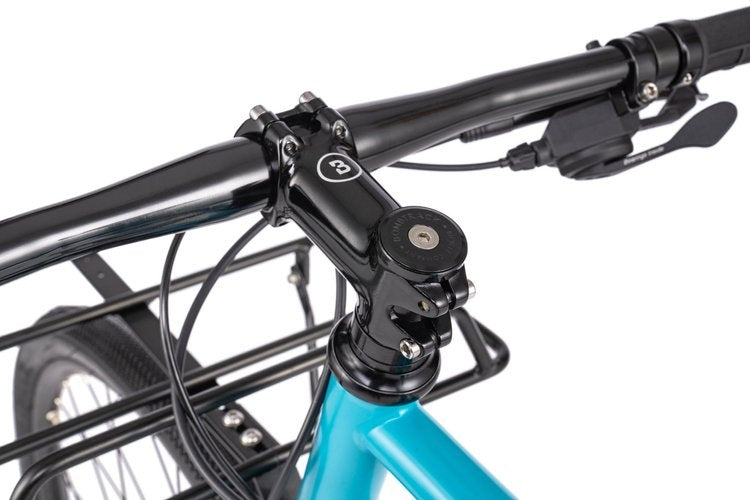

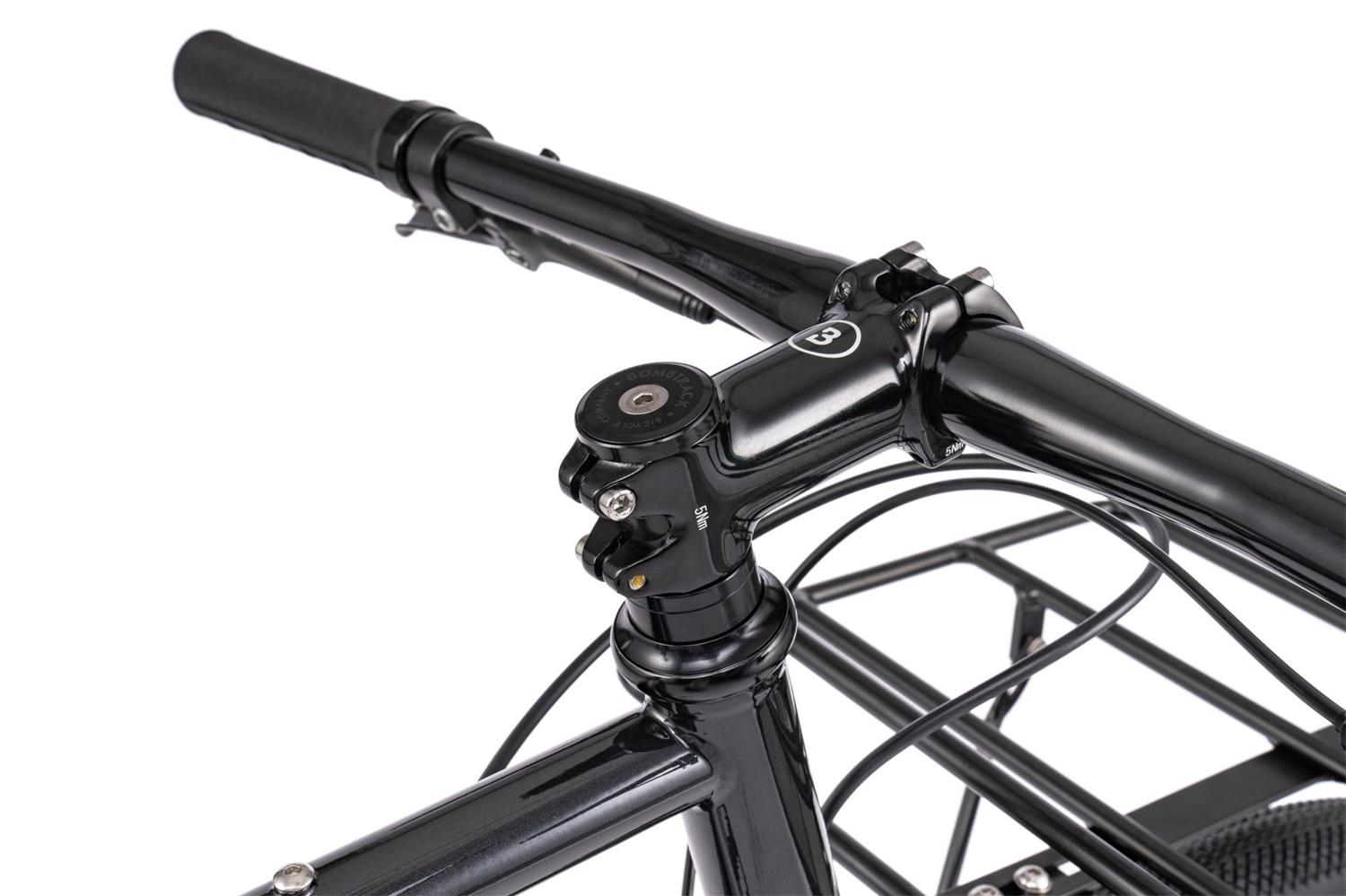

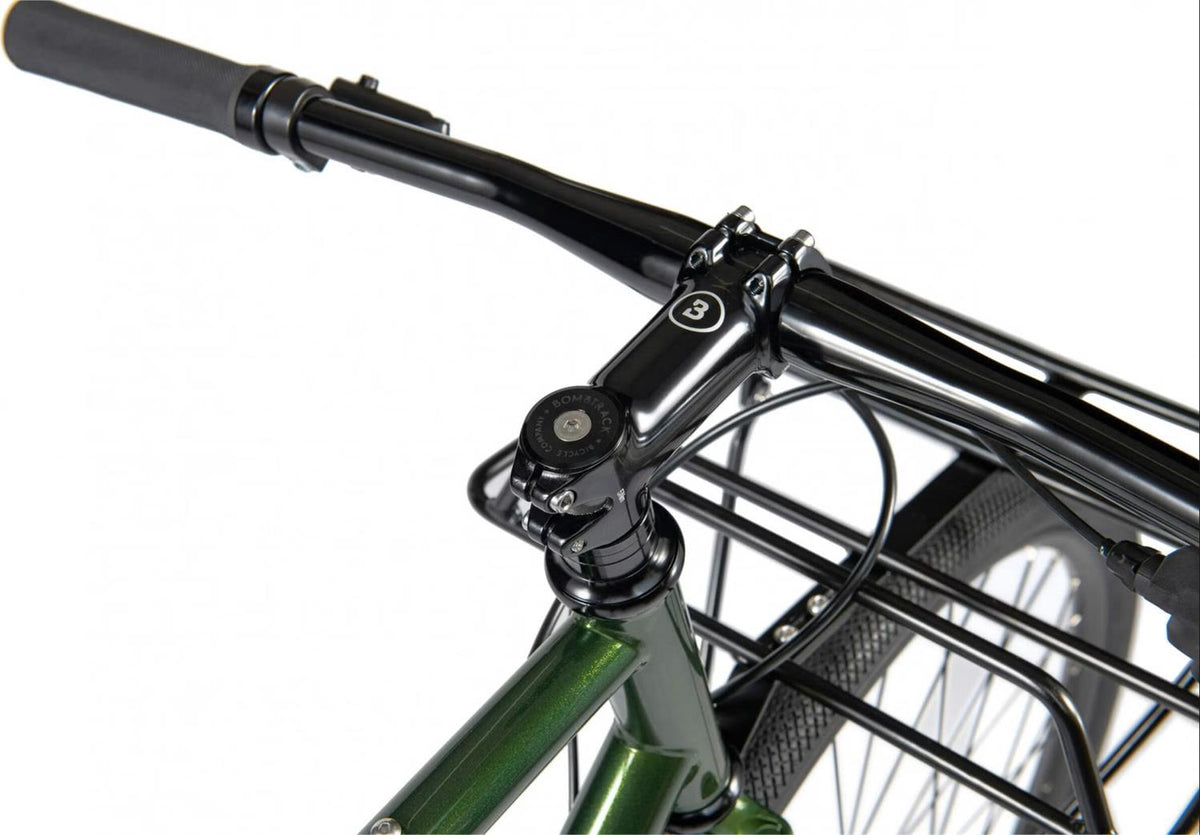

Handlebar	Bombtrack Origin flat bar, 31.8 mm, 8° backsweep
Grips	Bombtrack Scroll grips
Stem	Bombtrack Roam forged aluminium stem, -7°
Headset	Neco H282 sealed external aheadset, 1.1/8''

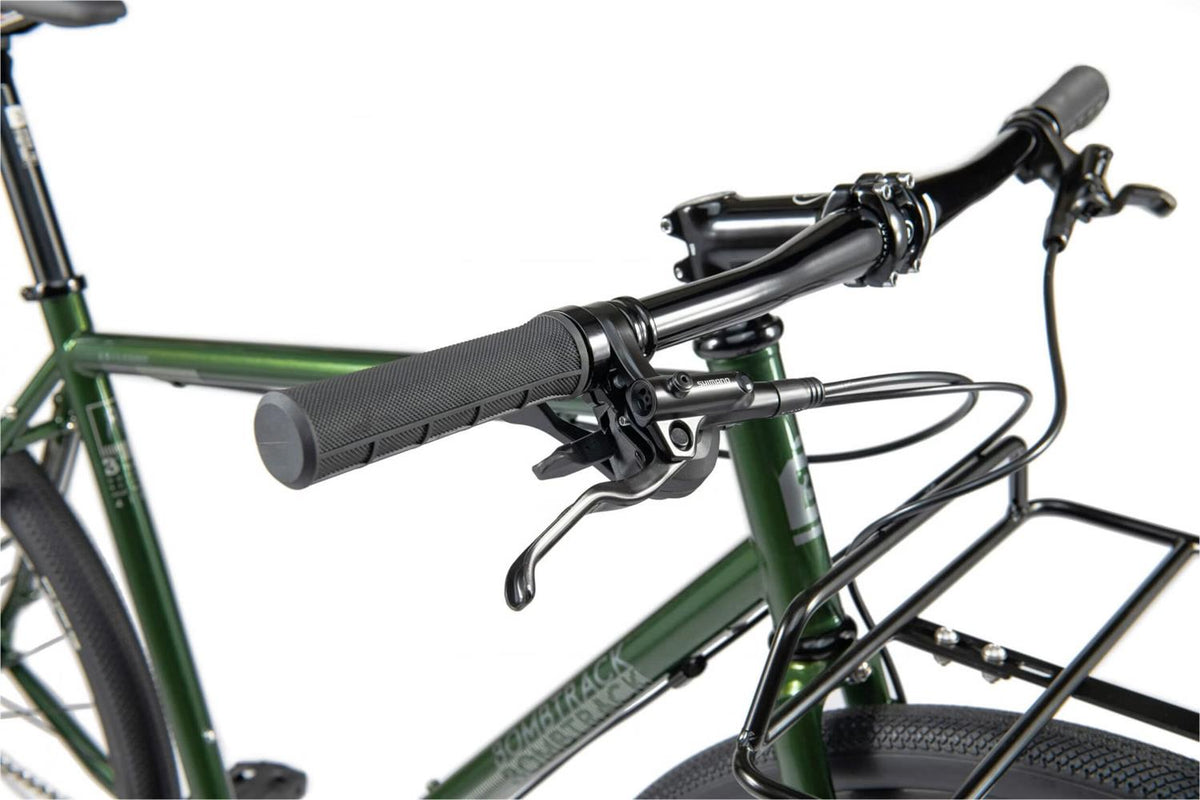

Levers	Shimano BL-MT200 hydraulic brake levers
Shifter	Microshift Advent SL-M8195-R shifter 1 x 9

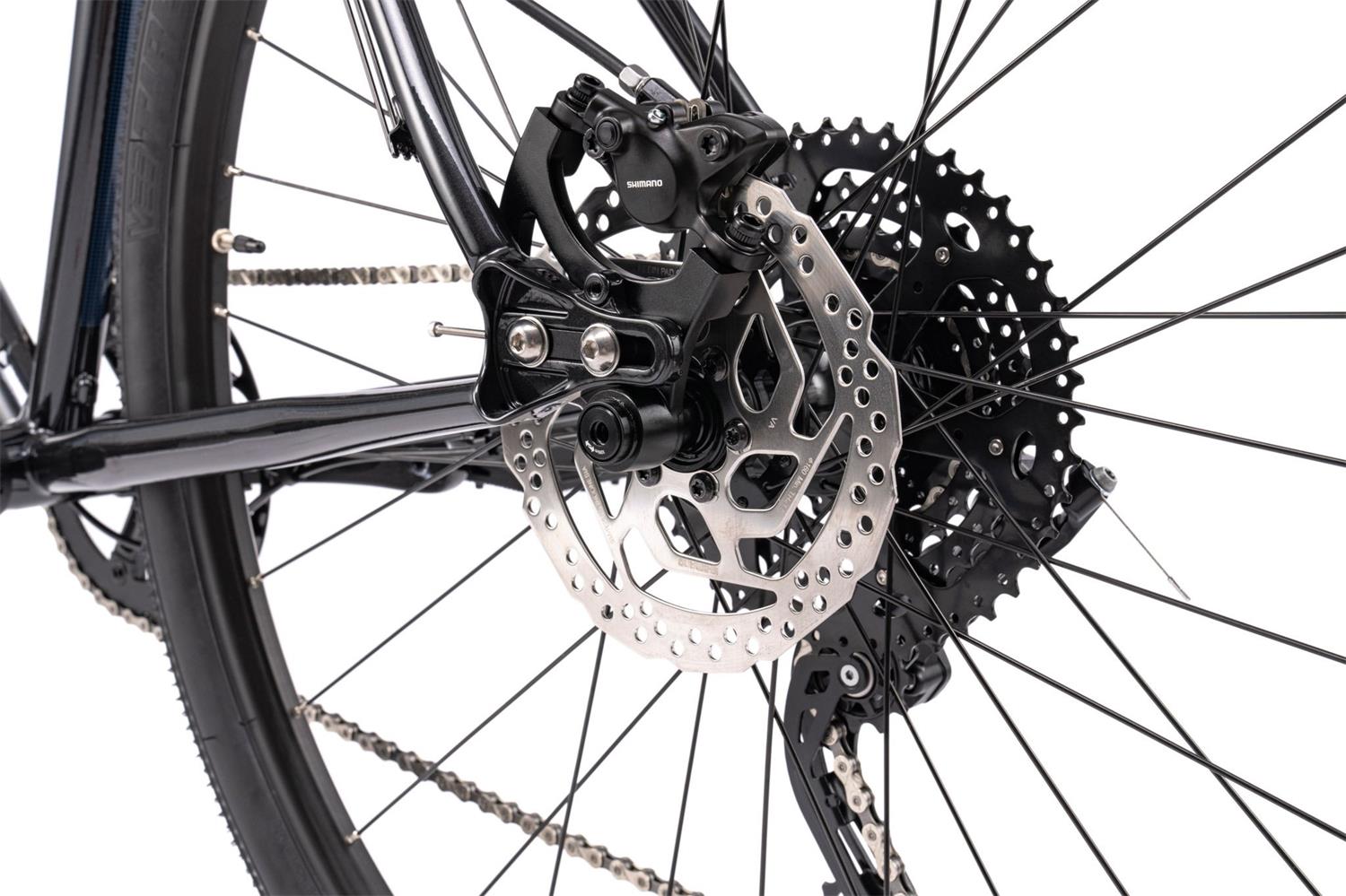

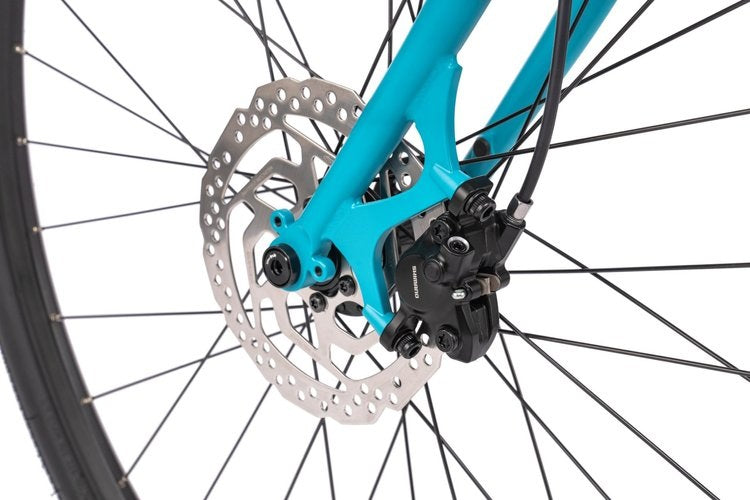

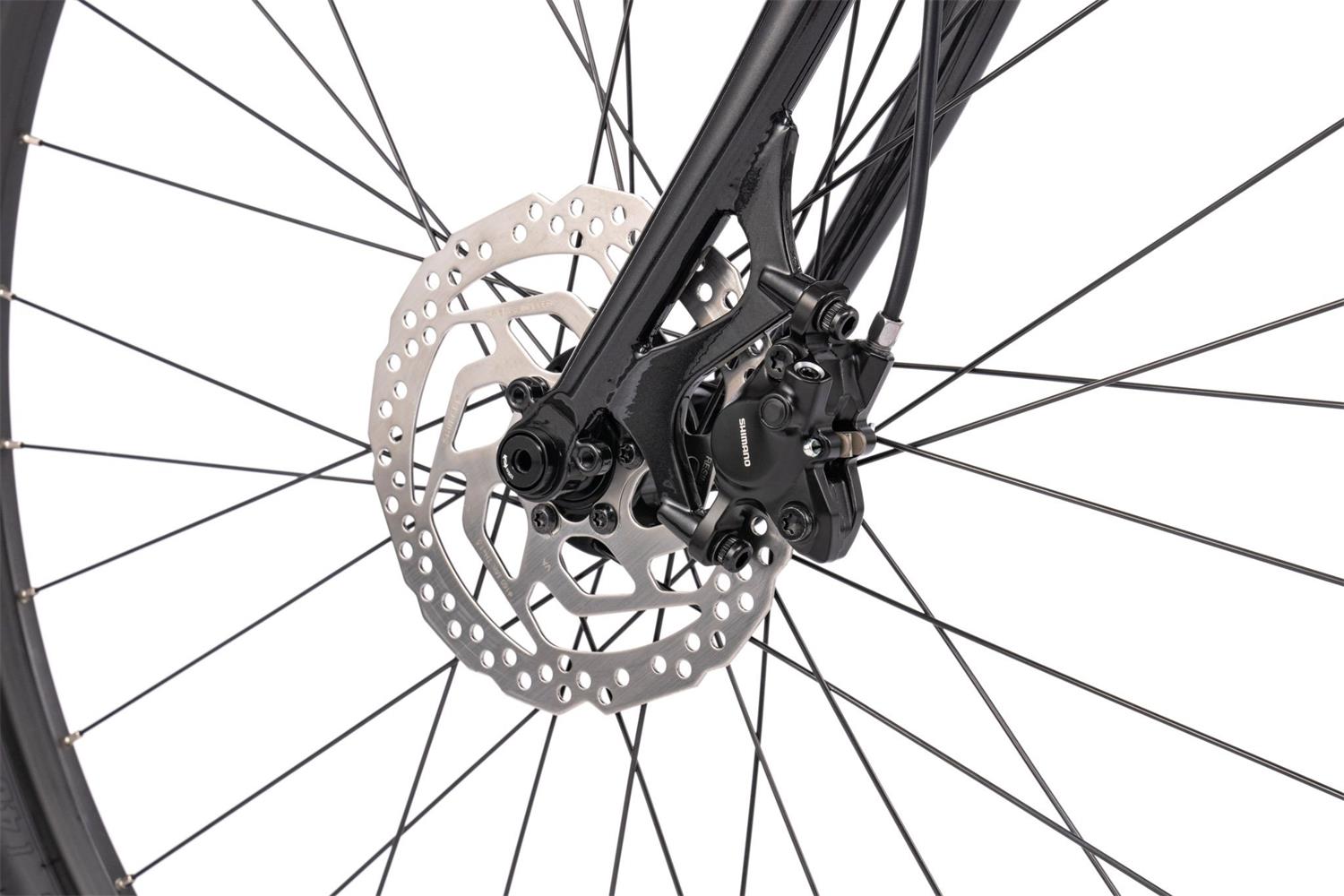

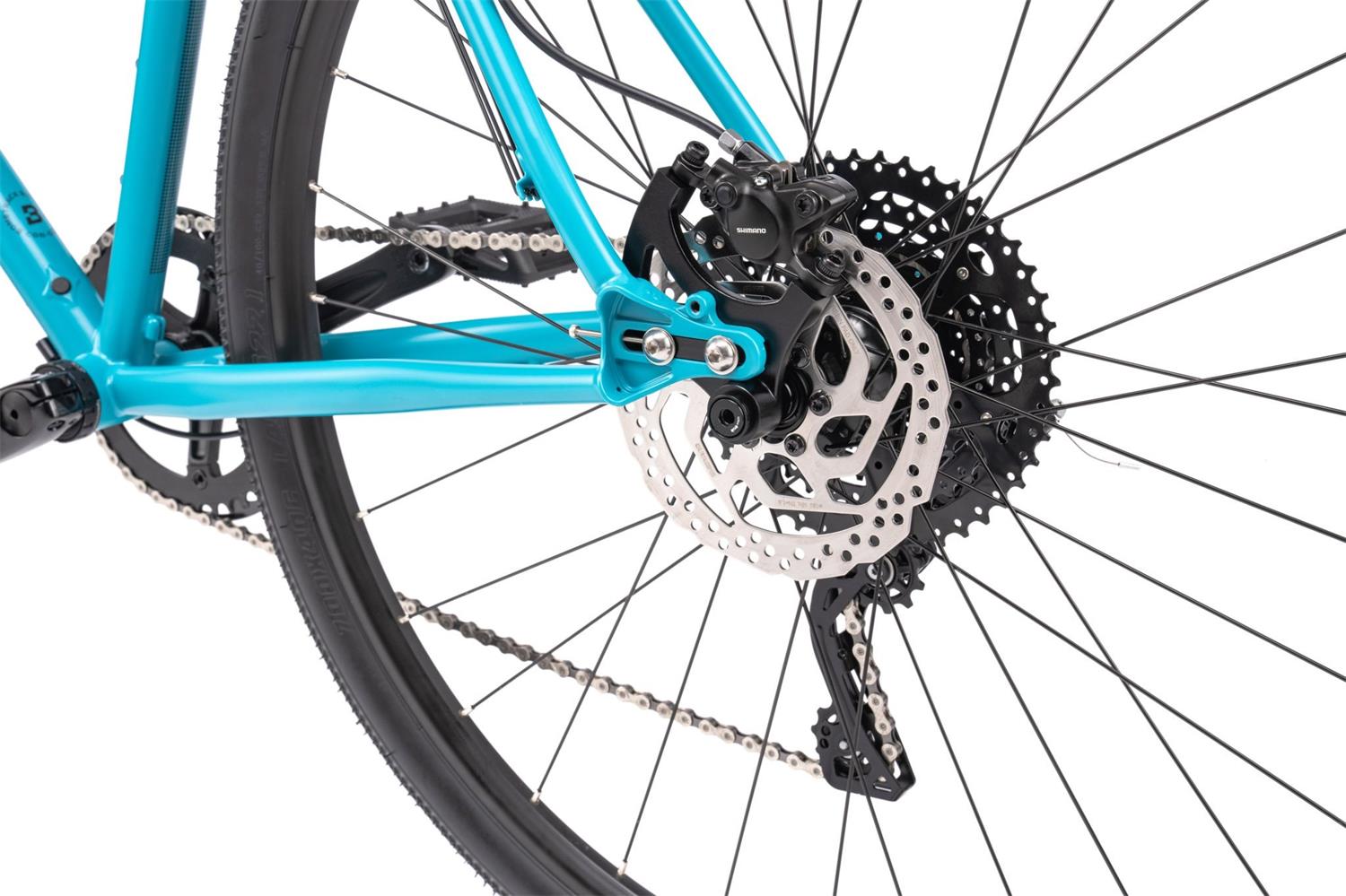

Brakes	Shimano BR-MT200 post mount hydraulic disc brake
Rotor	Shimano SM-RT26 160 mm rotors

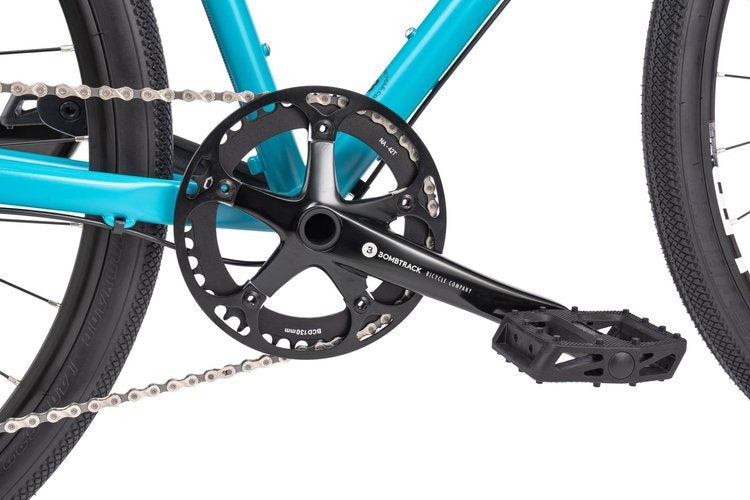

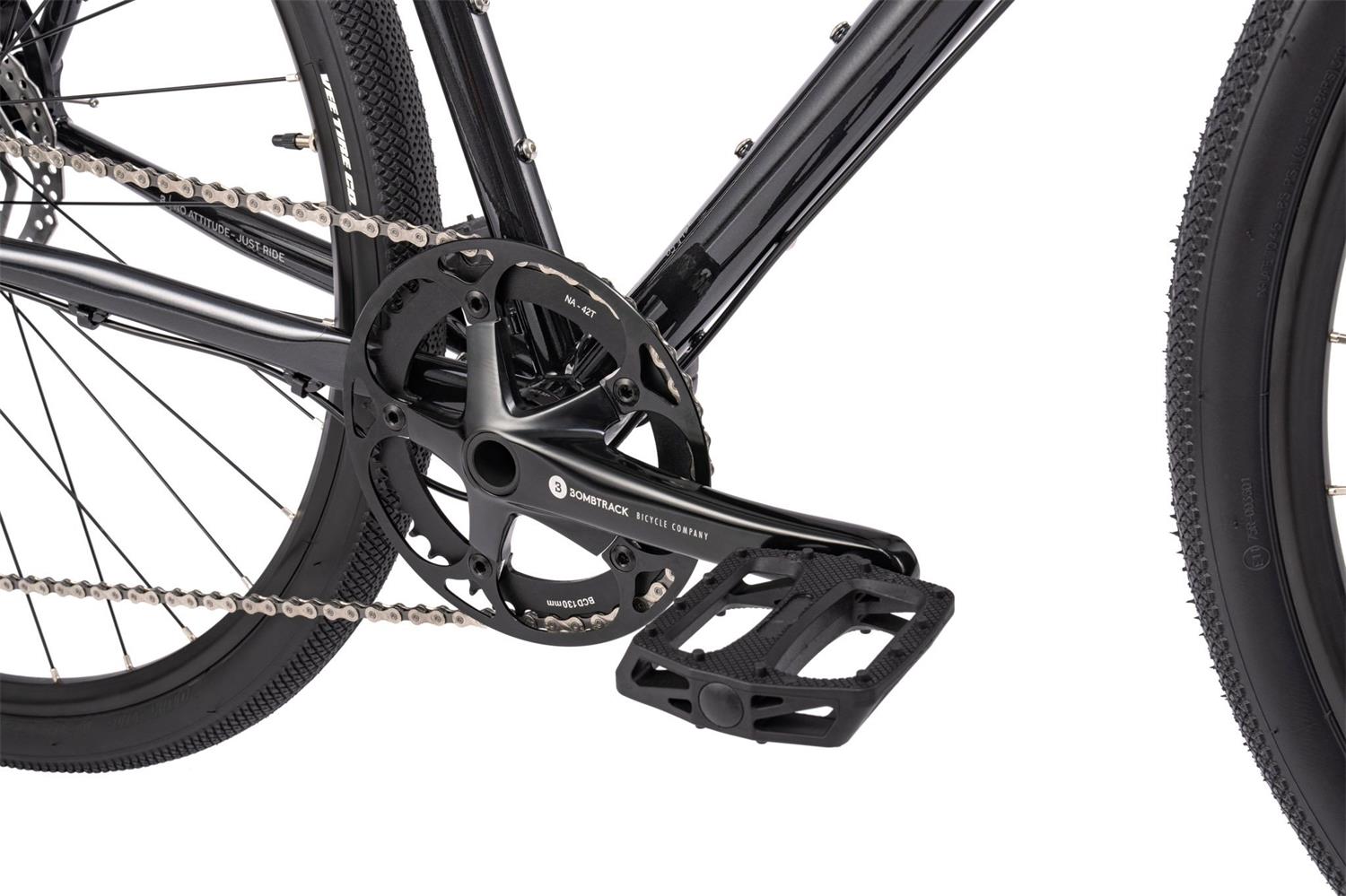

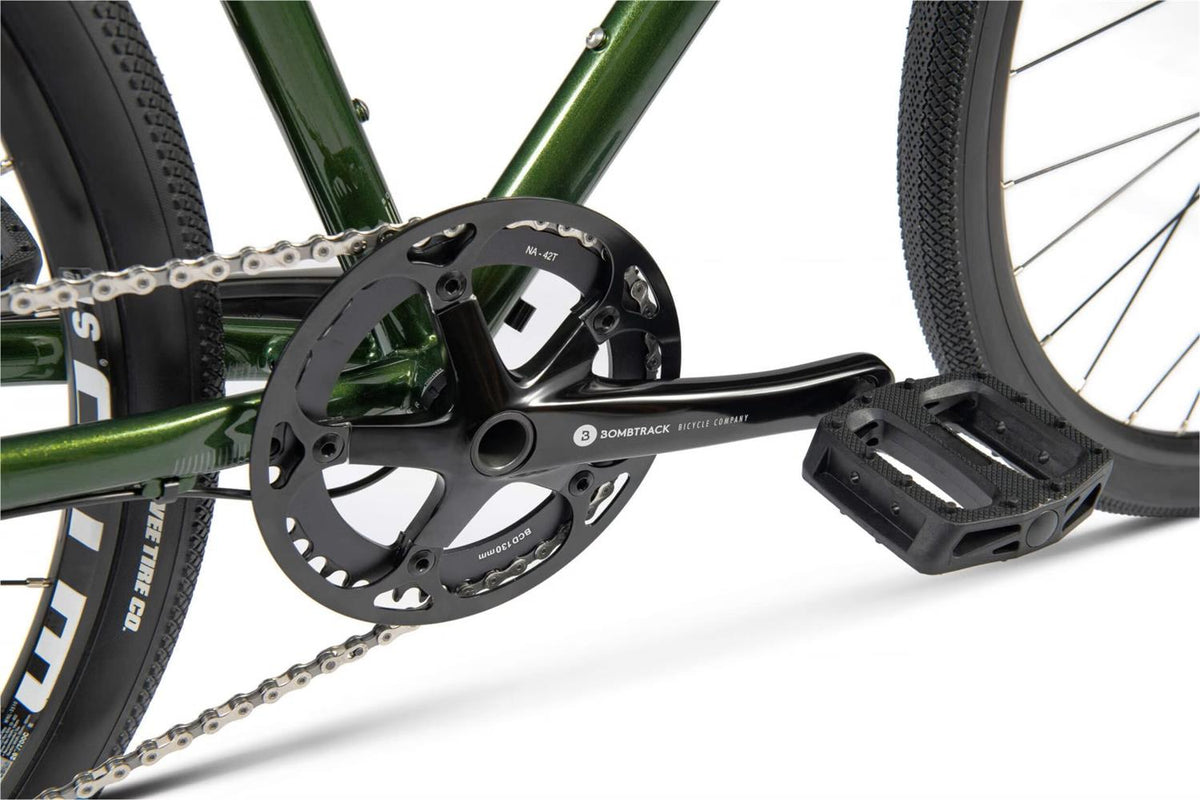

Crankset	Bombtrack TAF19 aluminium crank, 24 mm spindle

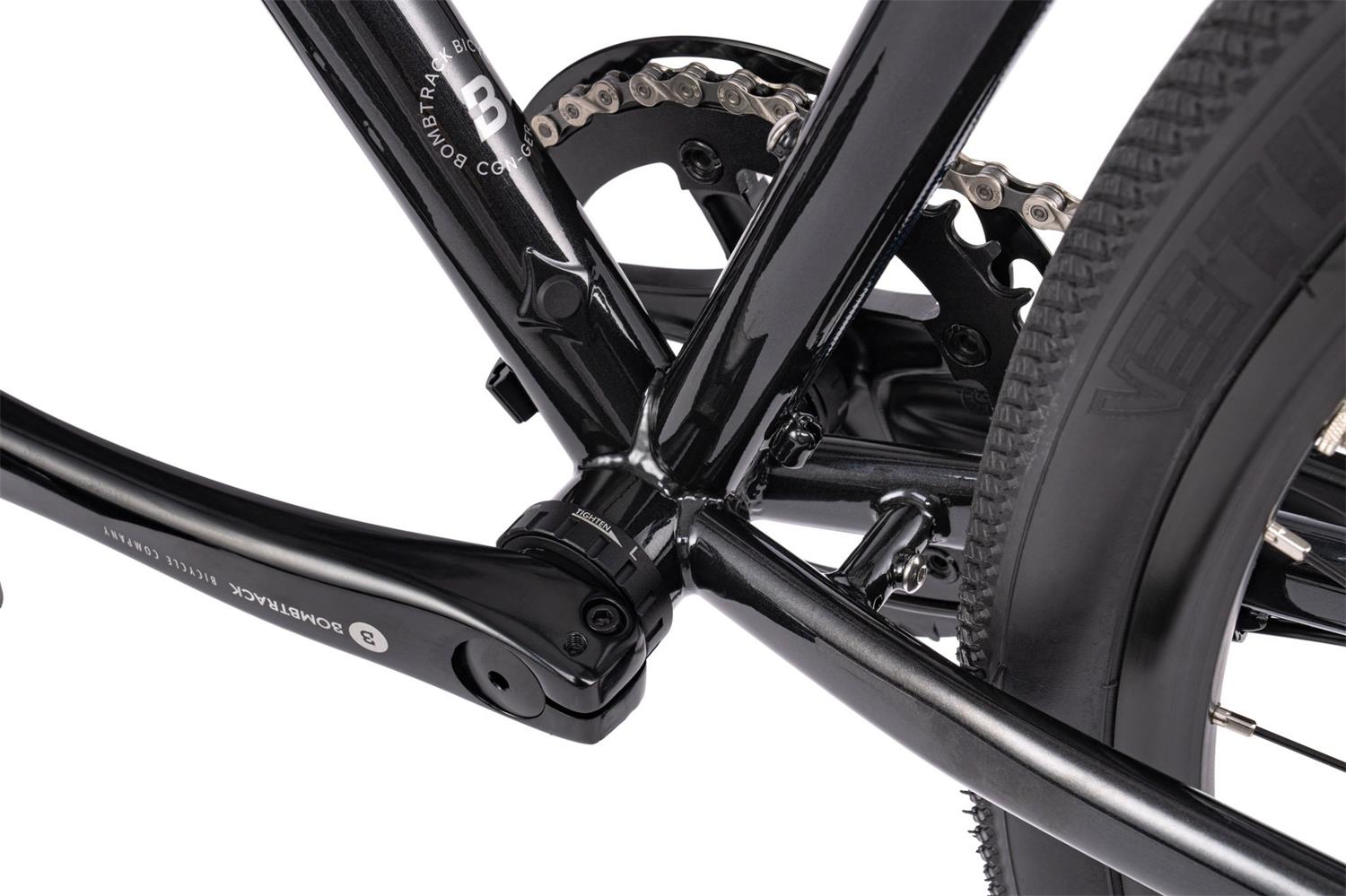

BB	BSA sealed BB, external cups
Pedals	Wellgo B109N flat pedal
Chain	KMC X9 chain, 1/2'' x 11/128'', 114L
Chainring	Bombtrack Ridge aluminium chainring, narrow-wide, 42 T, incl. chainguard

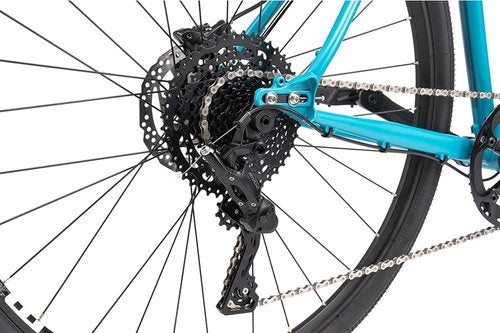

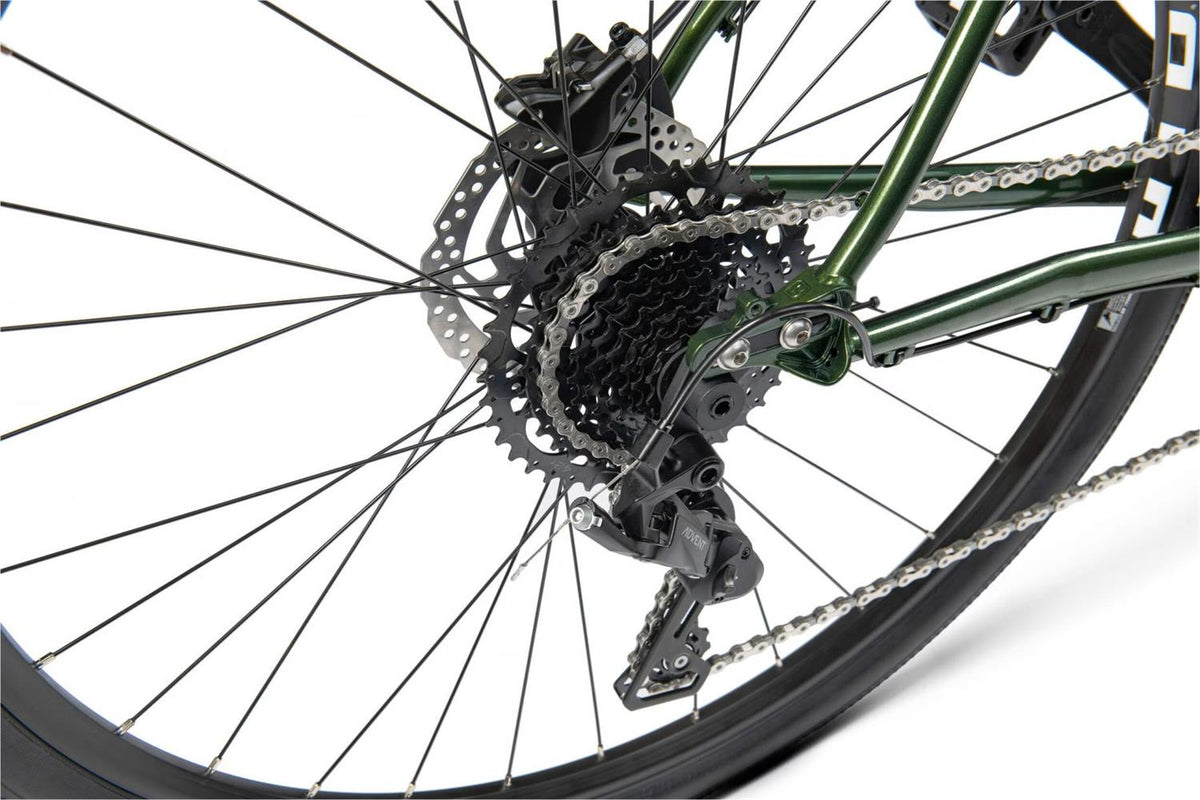

Cassette	Microshift Advent CS-H093 9-speed, 11 - 42 T
Front derailleur	-

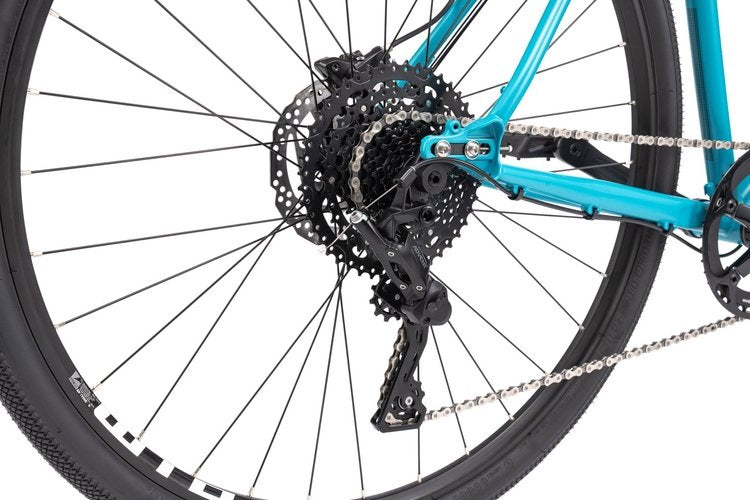

Rear derailleur	Microshift Advent RD-M6195M wide range, clutch

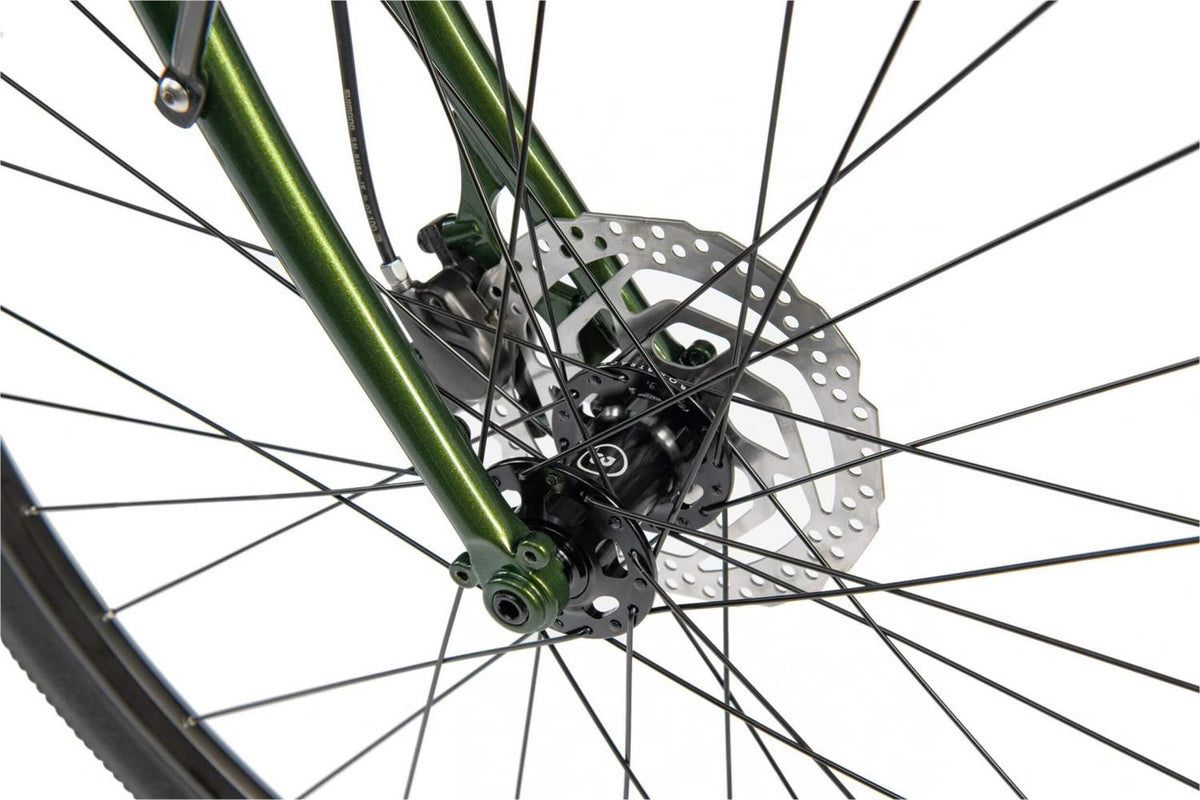

Front hub	Bombtrack Arc sealed hub, 6-bolt disc
Rear hub	Bombtrack Arc sealed hub, 11-speed, 6-bolt disc
Through axle	12 x 100 mm / 12 x 142 mm
Front rim	WTB ST i19 double wall, TCS 2.0, 32h
Rear rim	WTB ST i19 double wall, TCS 2.0, 32h

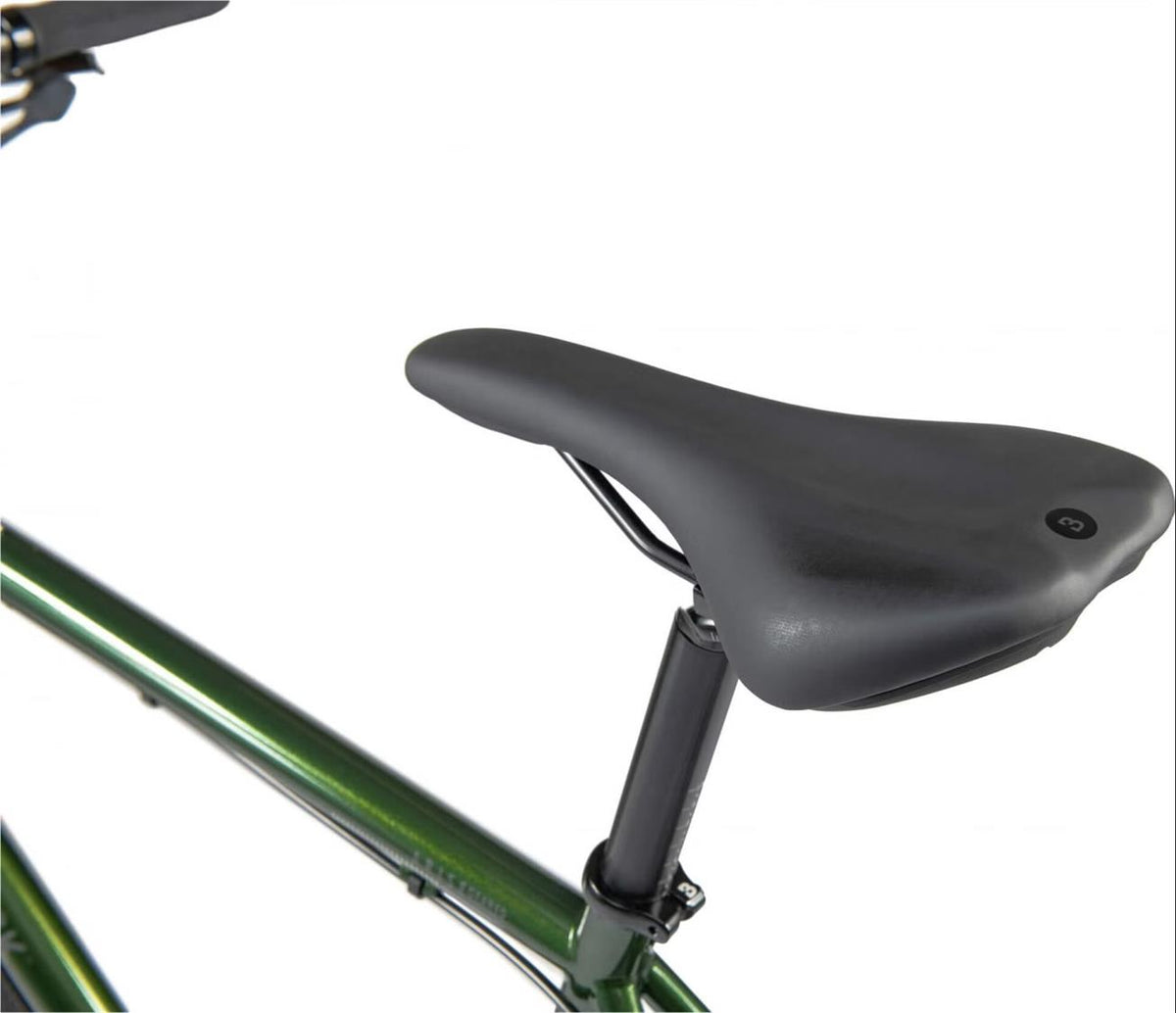

Saddle	Bombtrack Fuzz saddle
Seat post	Bombtrack Beech 27.2 mm x 300 mm
Seat clamp	Bombtrack Origin 29.8 mm

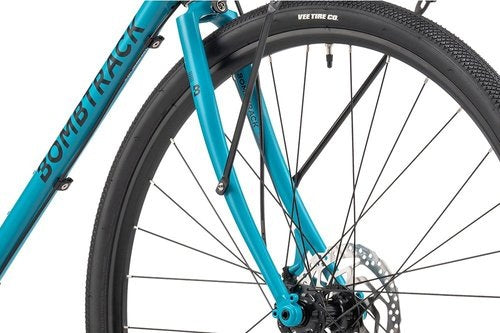

Front tire	XS - S Vee Tire Speedster 650B x 38C / M - XL Vee Tire Speedster 700C x 40C
Rear tire	XS - S Vee Tire Speedster 650B x 38C / M - XL Vee Tire Speedster 700C x 40C

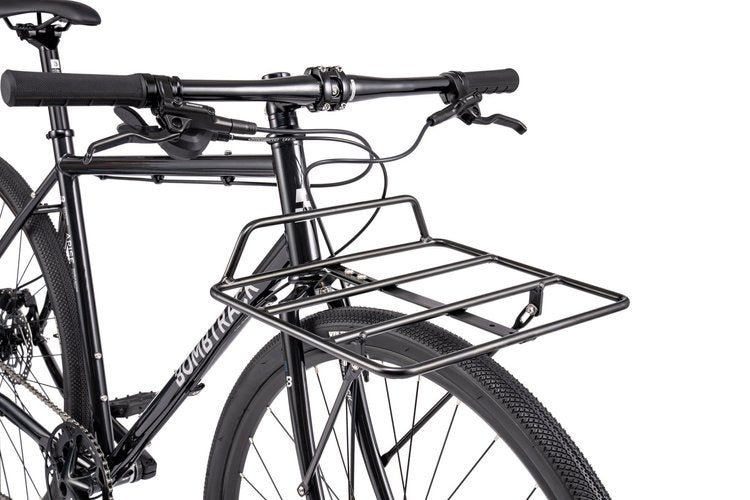

Rack	Bombtrack Deck frontrack, aluminium
Weight	12.6 kg (size M)
Weight frameset	2480 g frame (size M, incl. TA, hanger) / 1370 g fork (300 mm steerer, incl. TA)
Maximum rider weight	120 kg incl. luggage
ASTM riding condition	2
