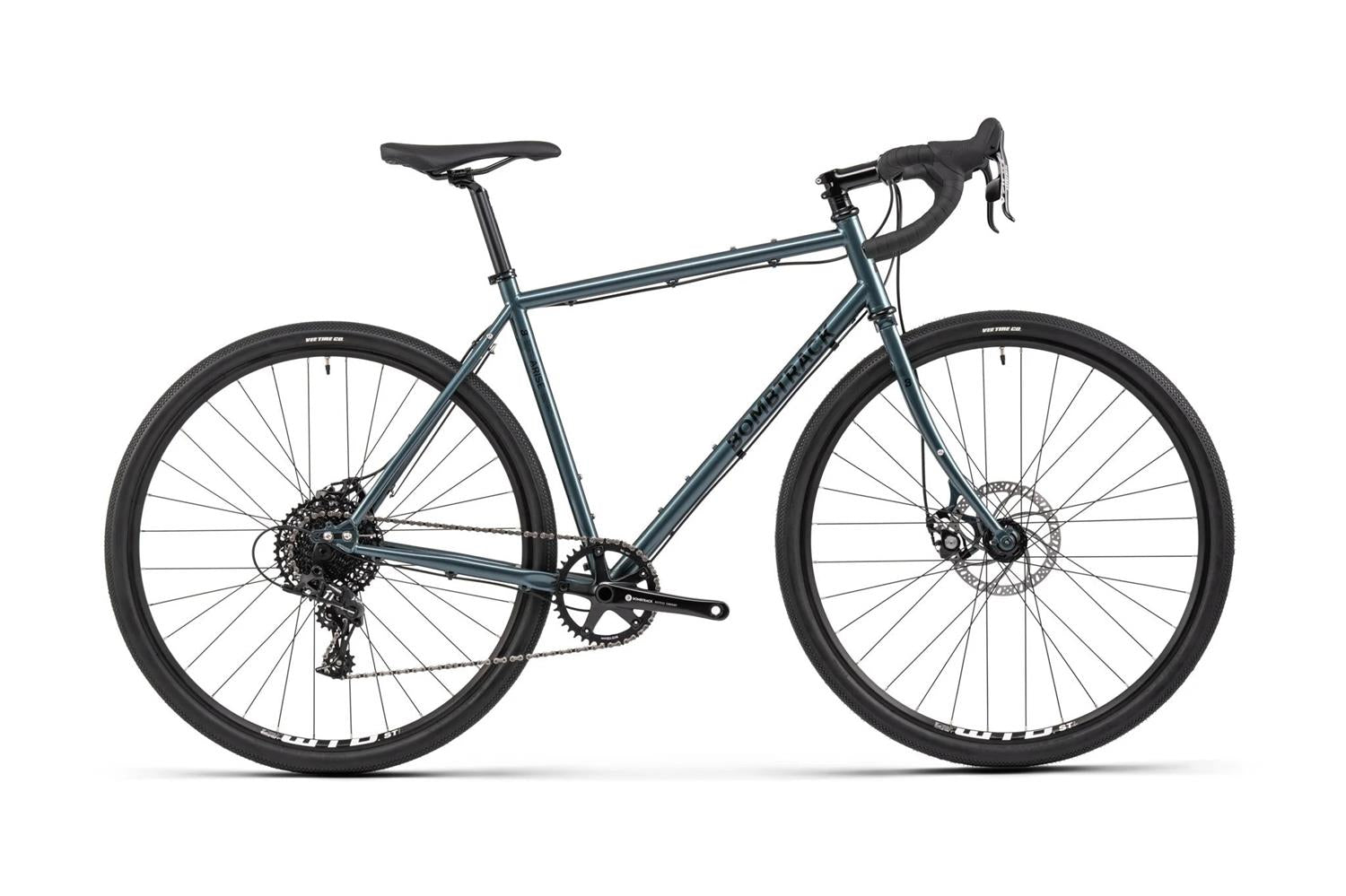

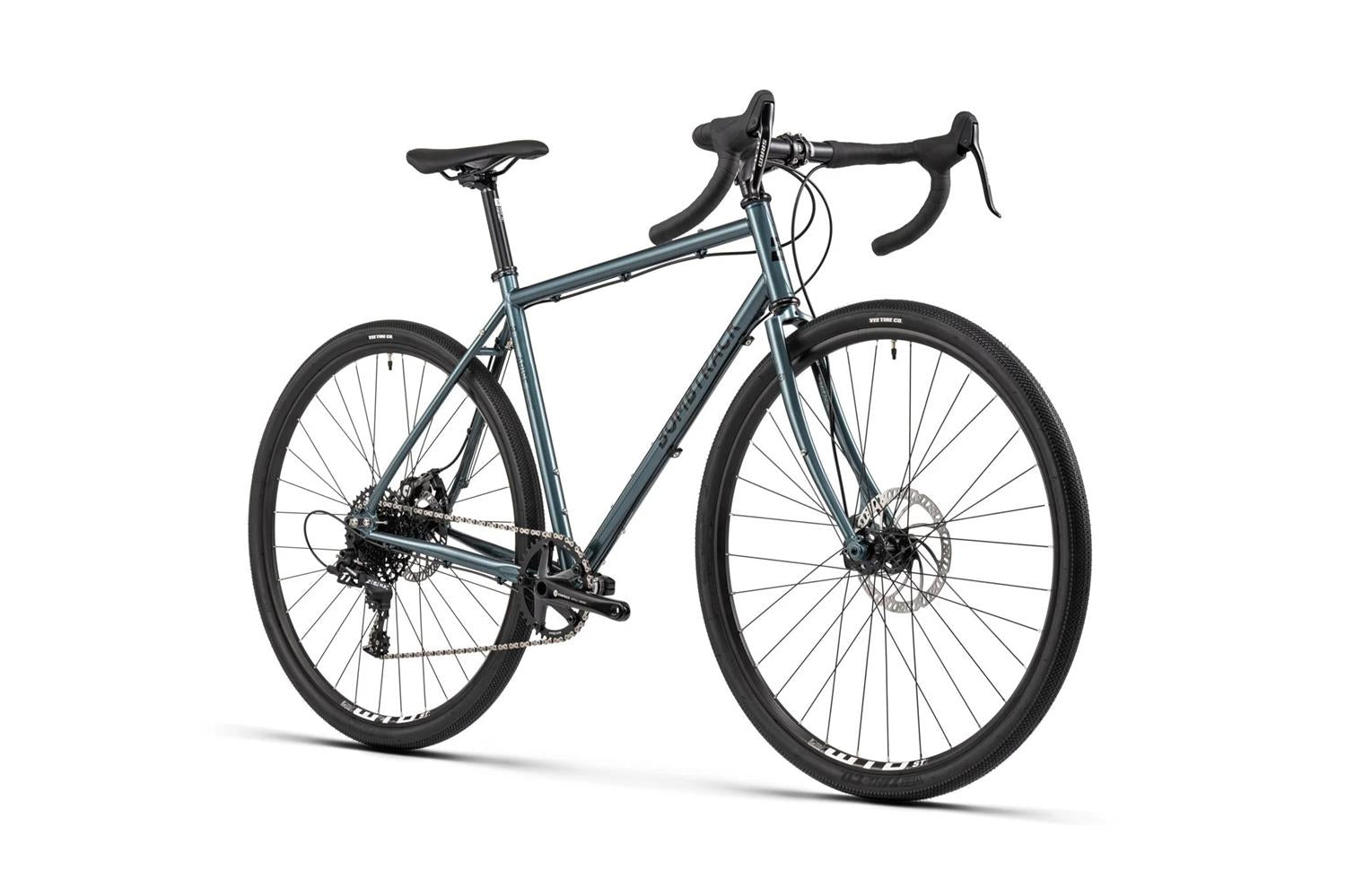

Bombtrack Arise SG Apex

Regular price: $3,099.00
Regular price
Sale price: $3,099.00
Unit price: per

Brand: BMBTRCK

Product variants

Description

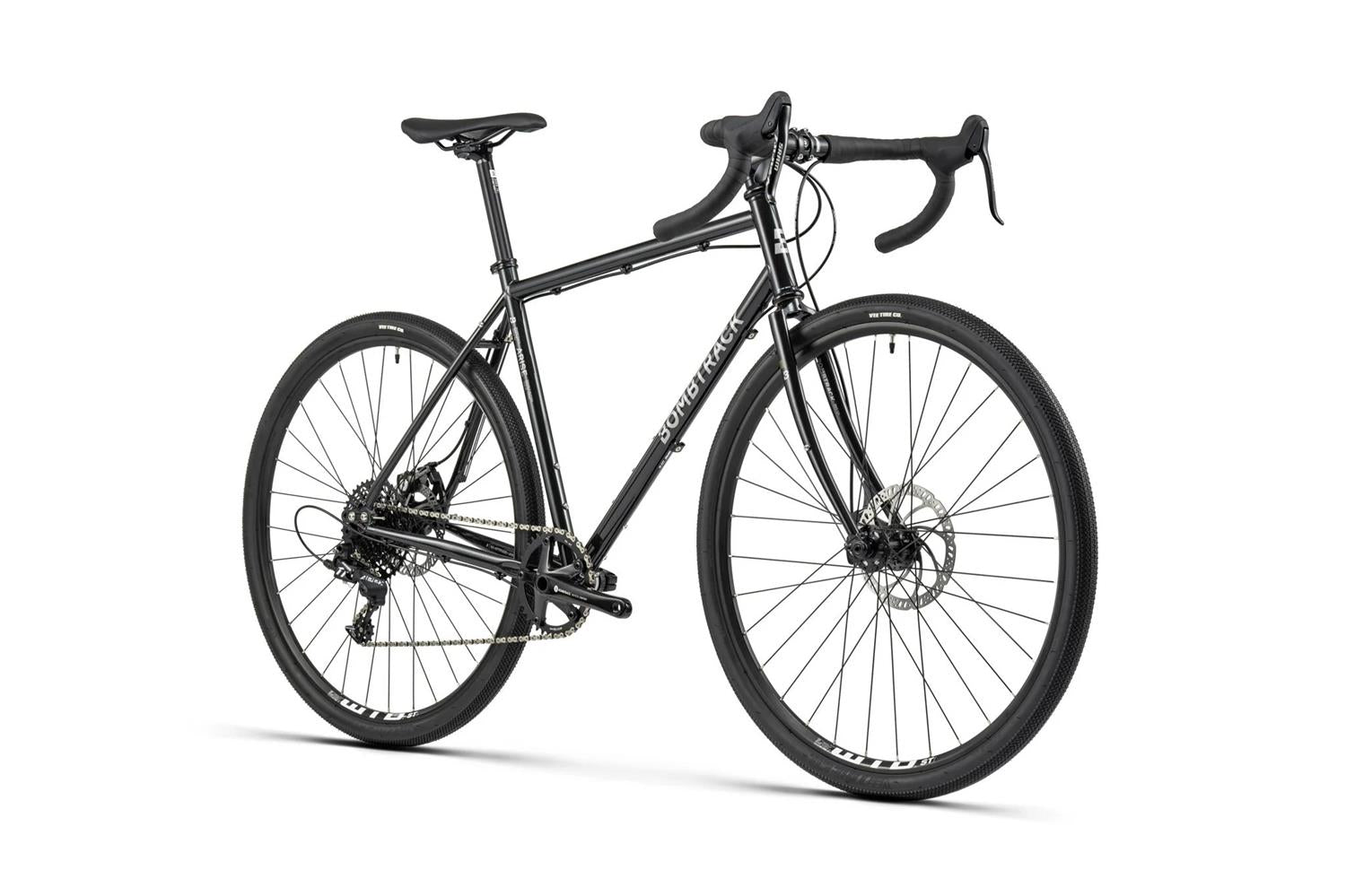

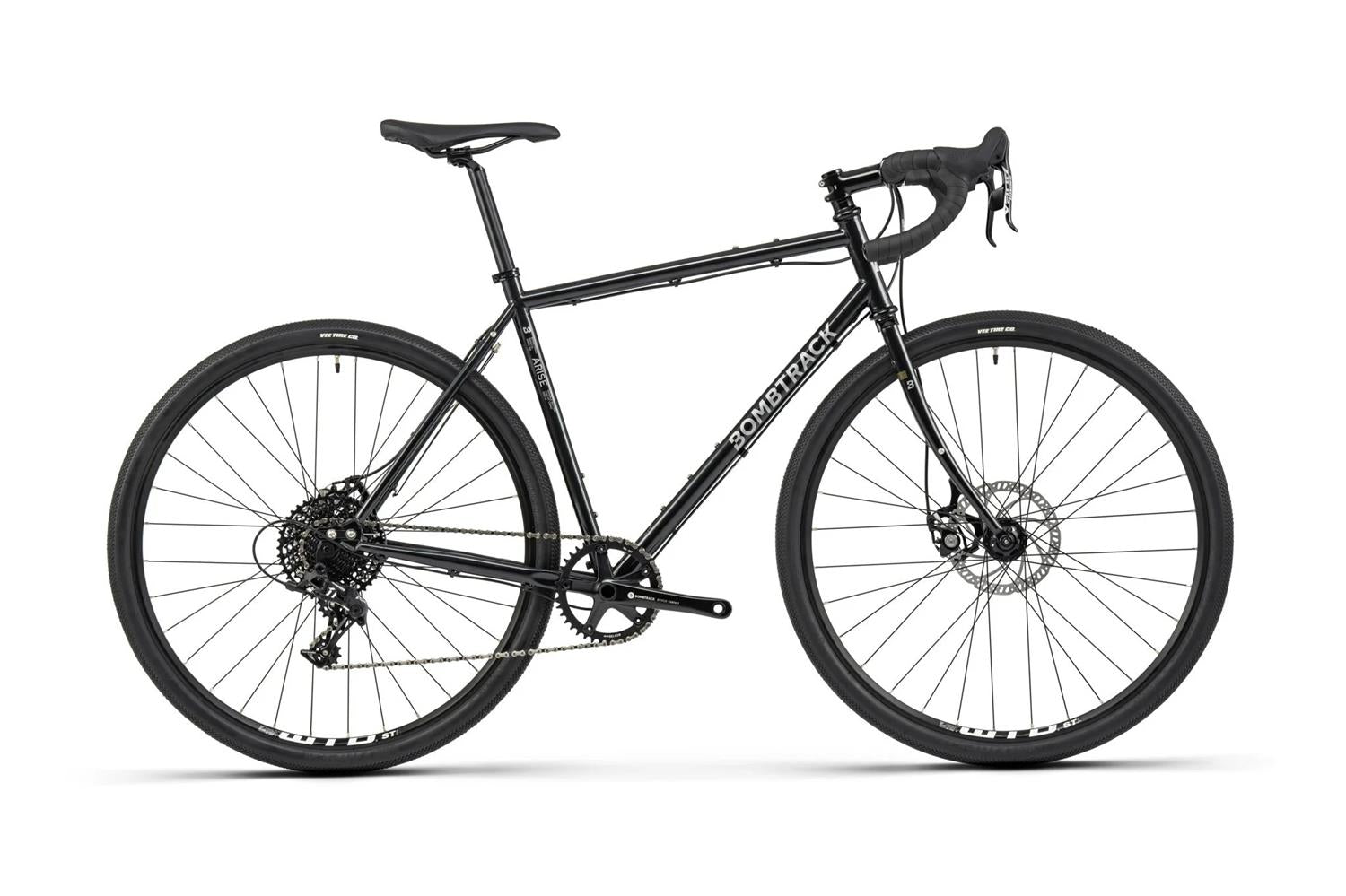

Arise SG Apex is more than ready for whatever multi-surface adventure you have lined up. Based on our trusted double-butted Arise frame, with size-specific wheels so everybody has that same Bombtrack experience.

We’ve also added SRAM’s excellent Apex 1 x 11 drivetrain. The 11 – 42T cassette coupled with a 40T front ring make light work of spinning up those hills, and with the Bombtrack cockpit and Tektro mechanical disc brakes, give you a commanding position going down the other side. Add in tubeless-ready WTB rims, a multitude of mounts and internal dynamo light routing, and you have the basis of a fantastic adventure companion.

"A narrow-wide chainring and 11-speed gearing tailor it to its intended purpose; riding fast on unpaved roads."

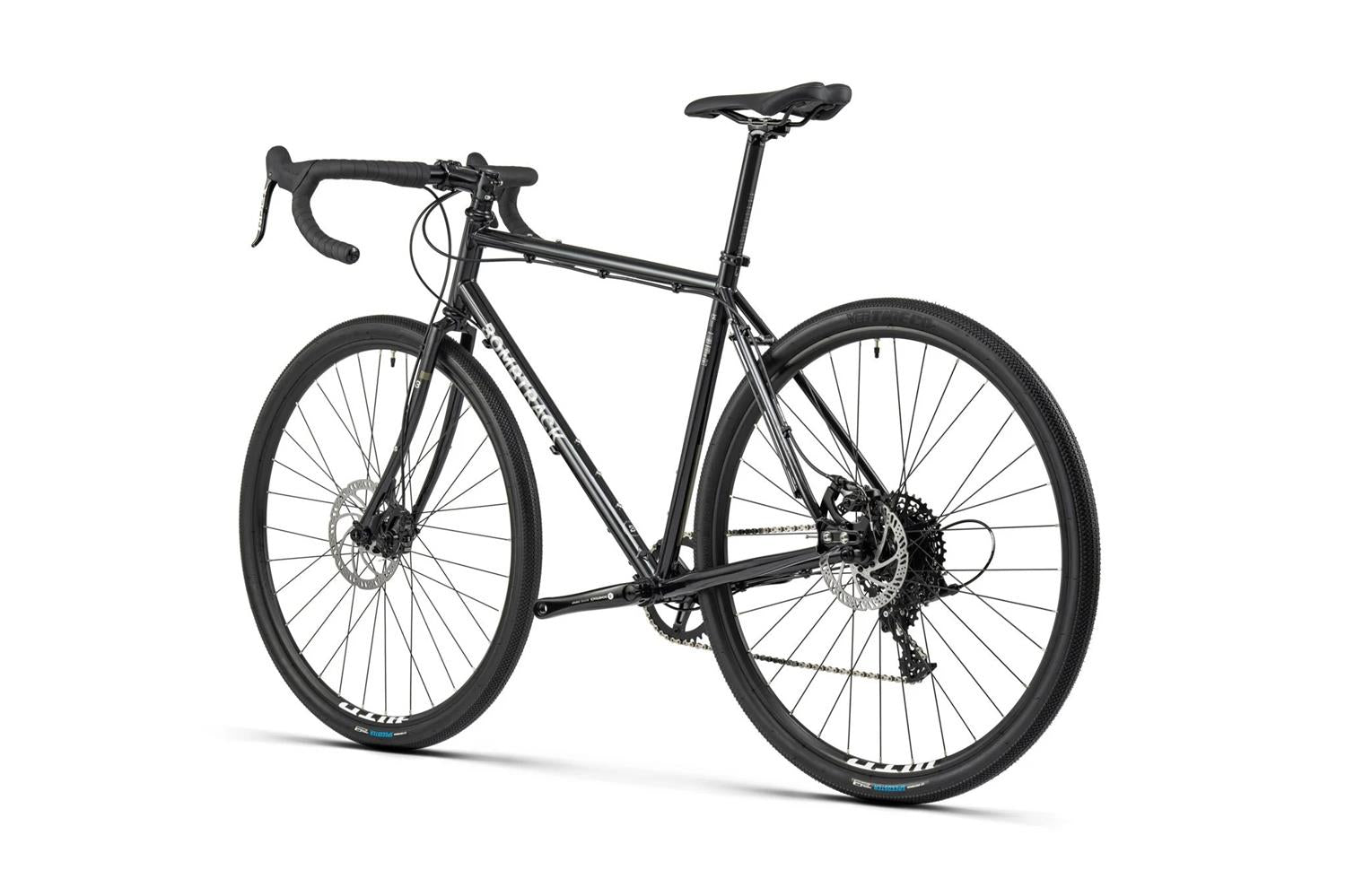

Color 1	Metallic black

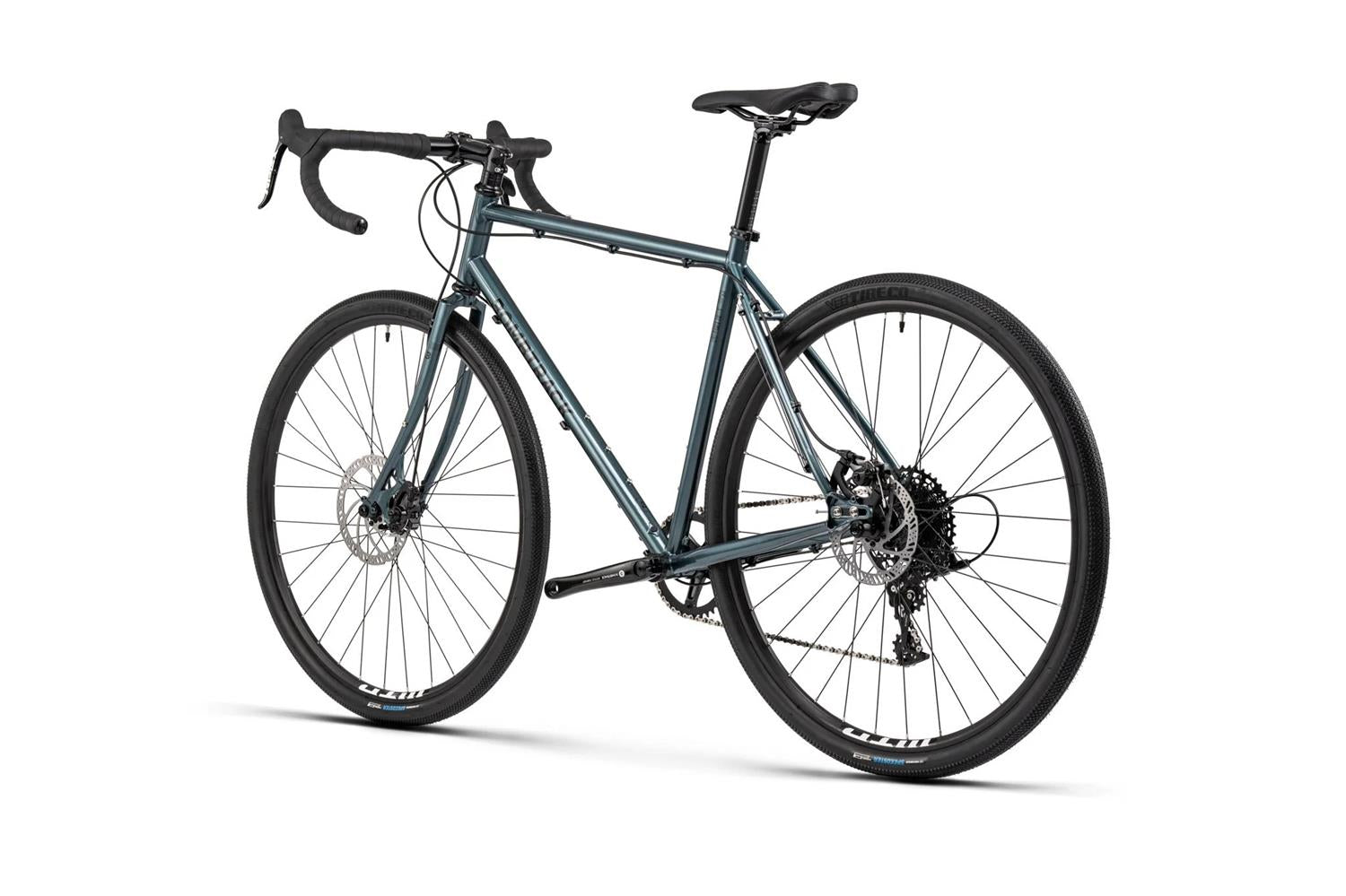

Color 2	Metallic grey blue

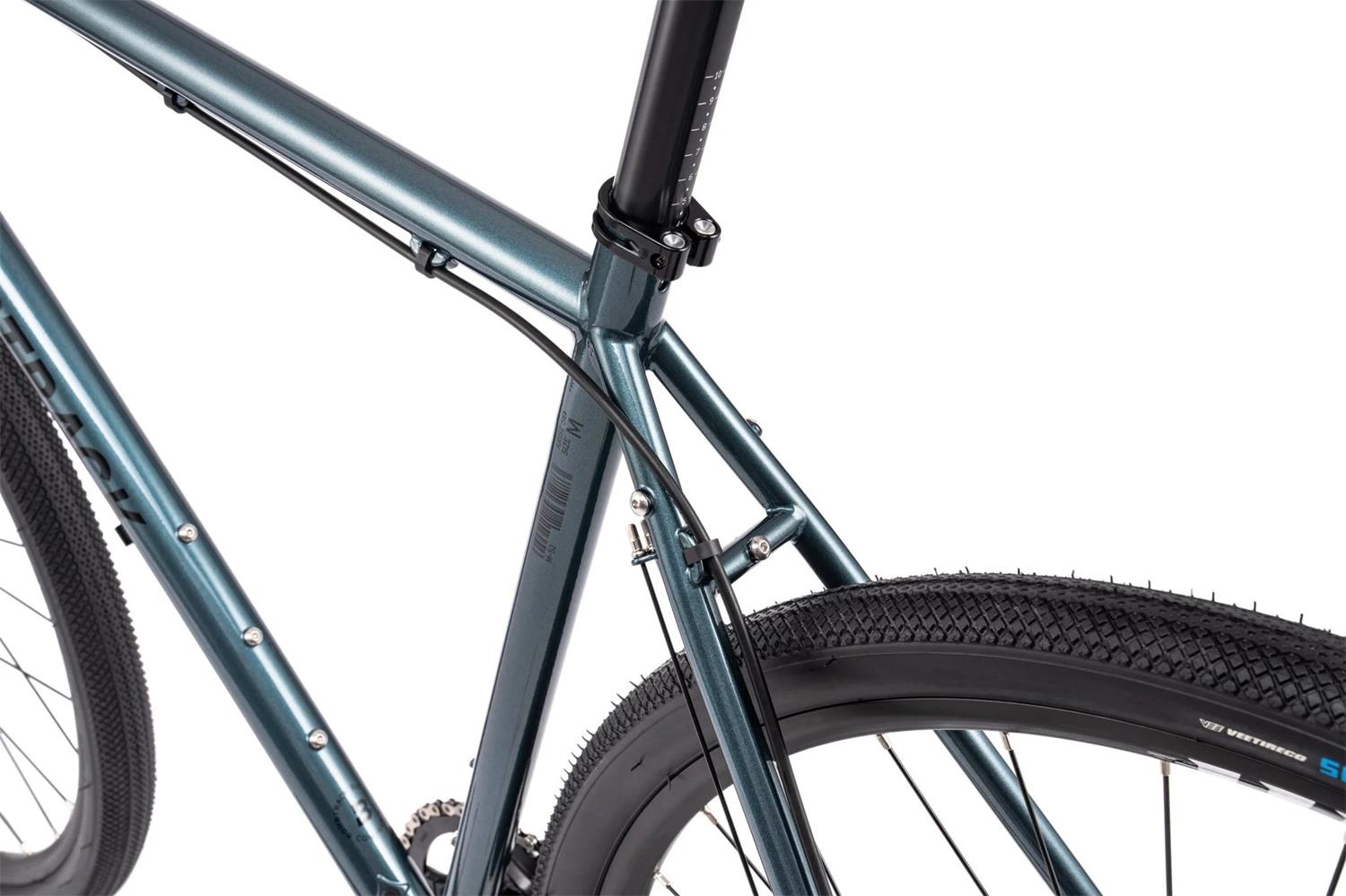

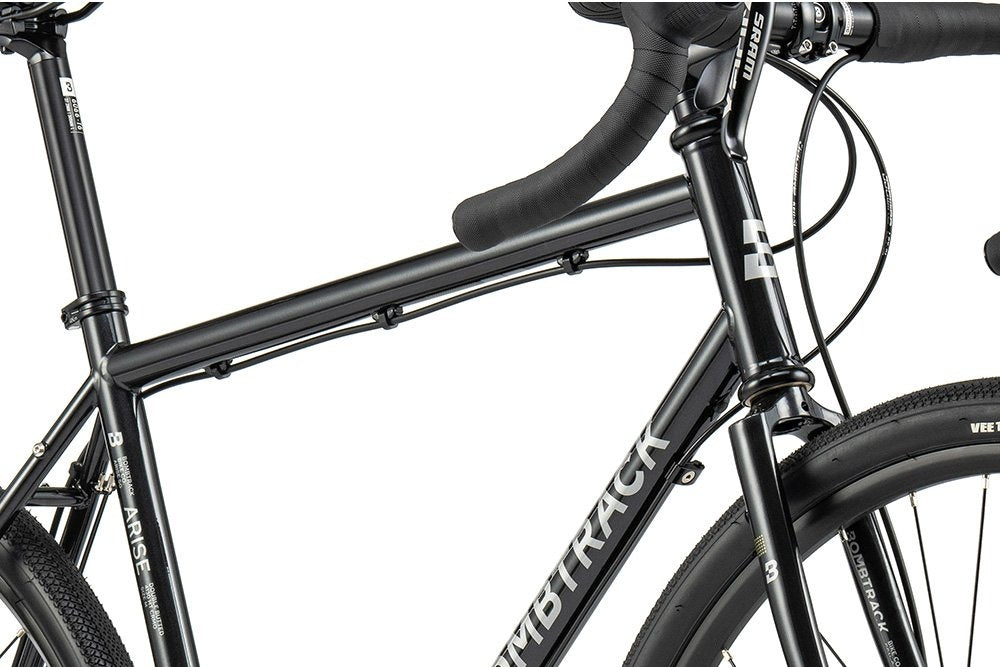

Frame	4130 double butted crmo, heat treated front triangle, TA sliding dropouts, rack / fender mounts, 68 mm BSA BB shell

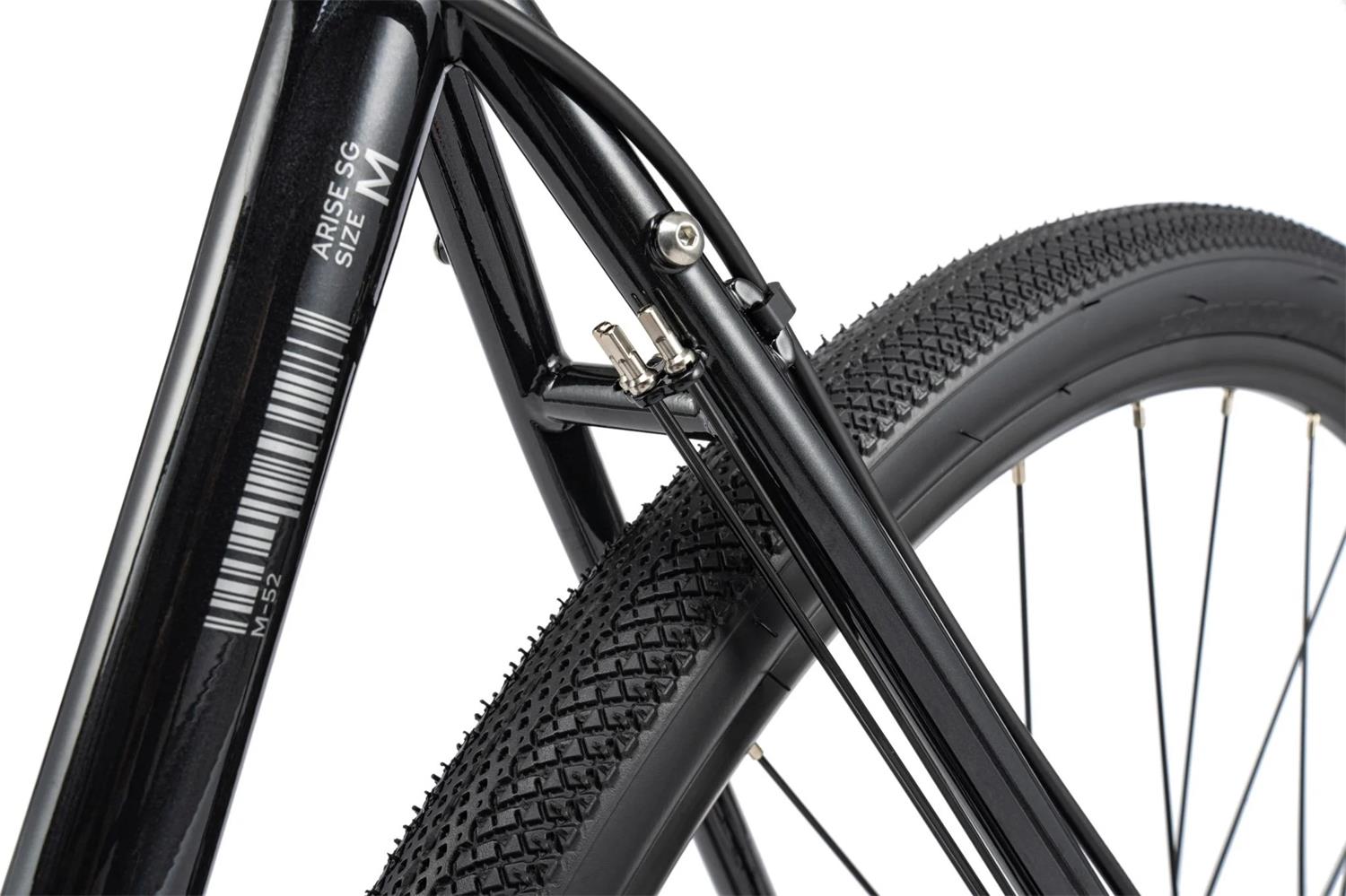

Fork	4130 crmo, TA, rack / fender mounts, internal hub dynamo cable routing

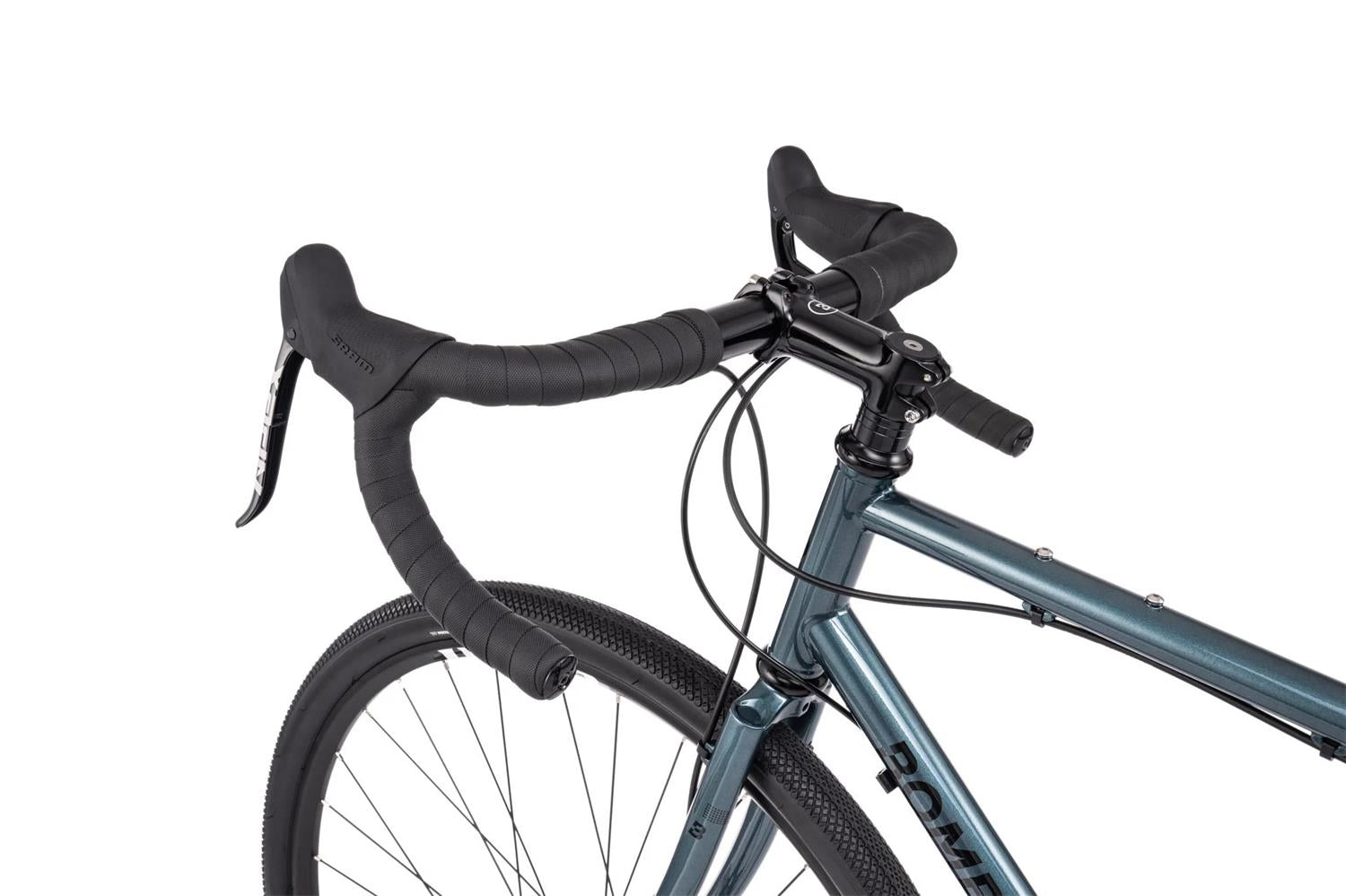

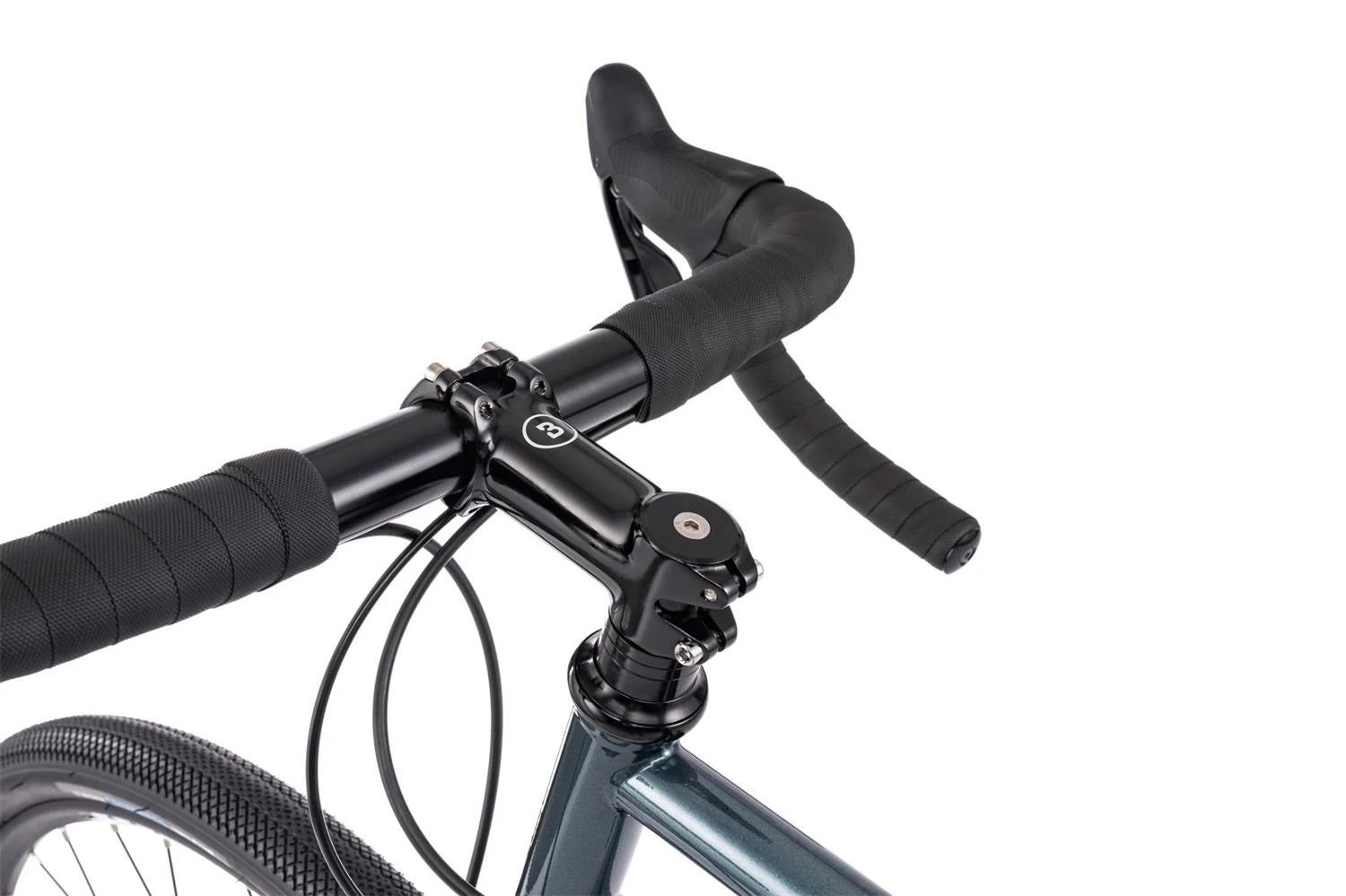

Handlebar	Bombtrack CX-10 drop bar, 31.8 mm, 10° flare
Grips	Bombtrack Command bar tape
Stem	Bombtrack Roam forged aluminium stem, -7°
Headset	Neco H282 sealed external aheadset, 1.1/8''

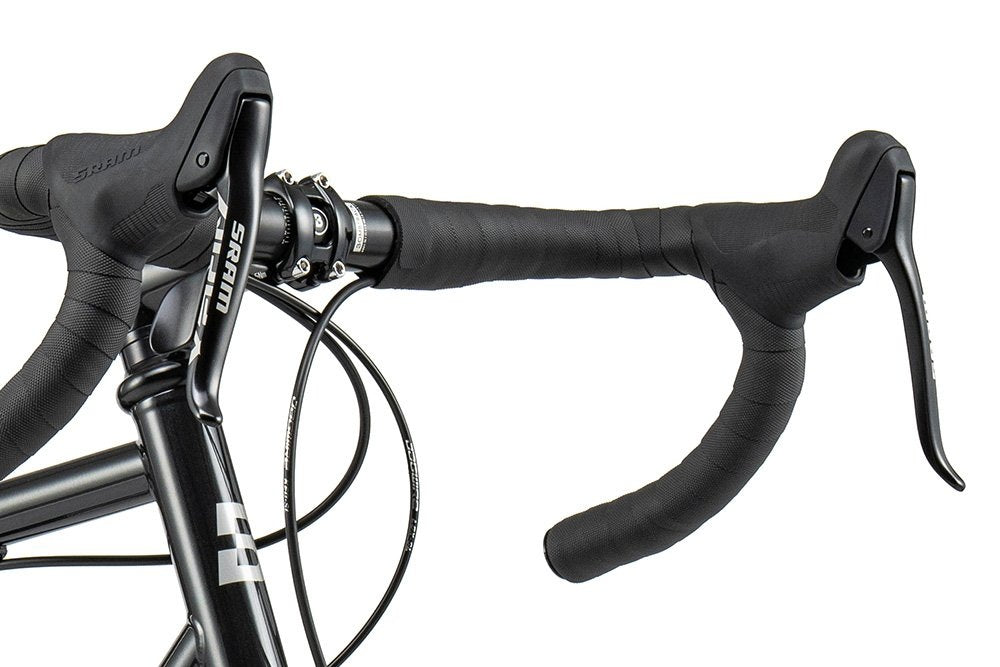

Levers	Sram Apex double tap mechanic
Shifter	Sram Apex double tap 1 x 11

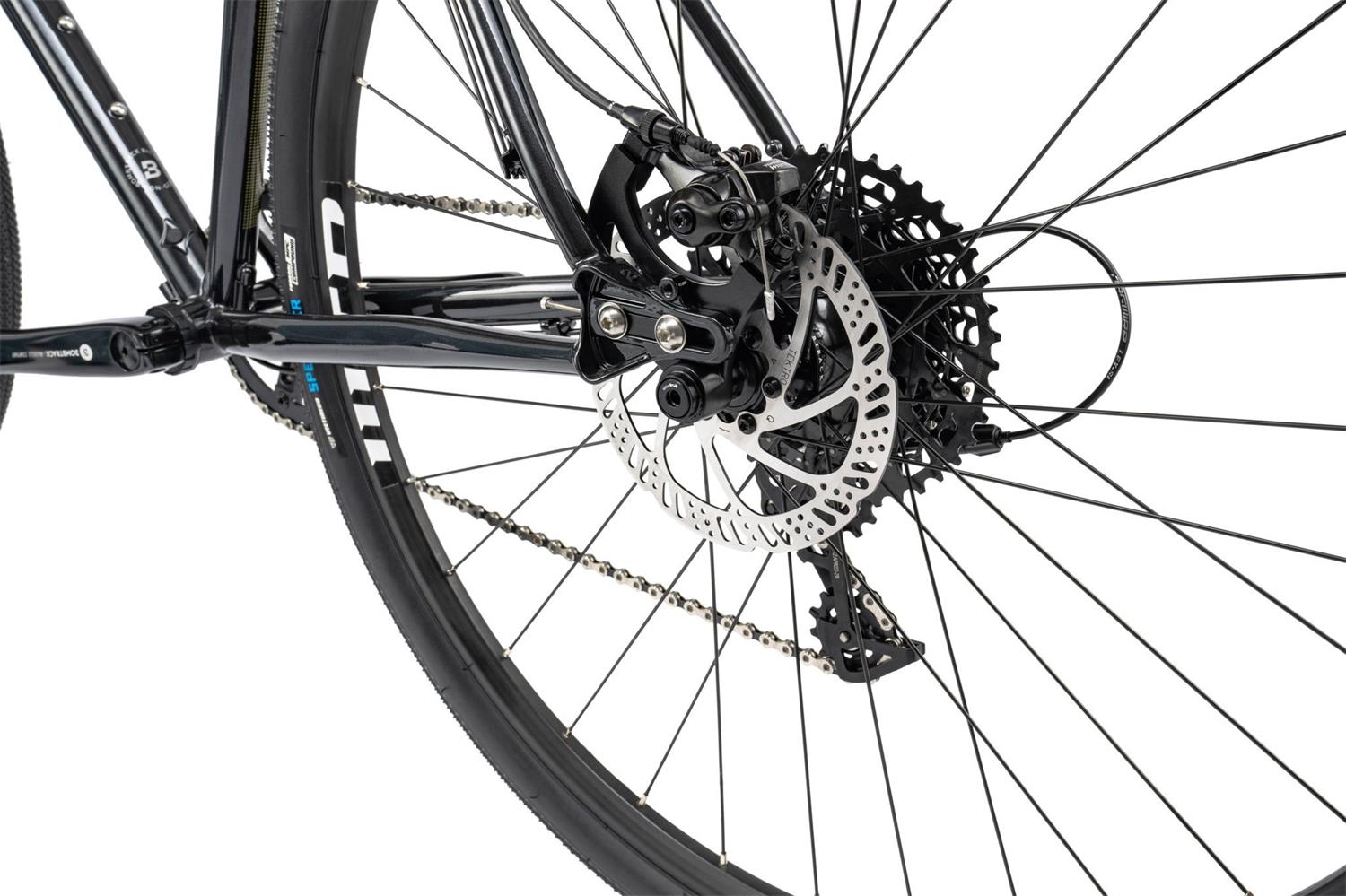

Brakes	Tektro Mira post mount mechanic disc brakes
Rotor	Tektro 180 mm front and 160 mm rear rotor

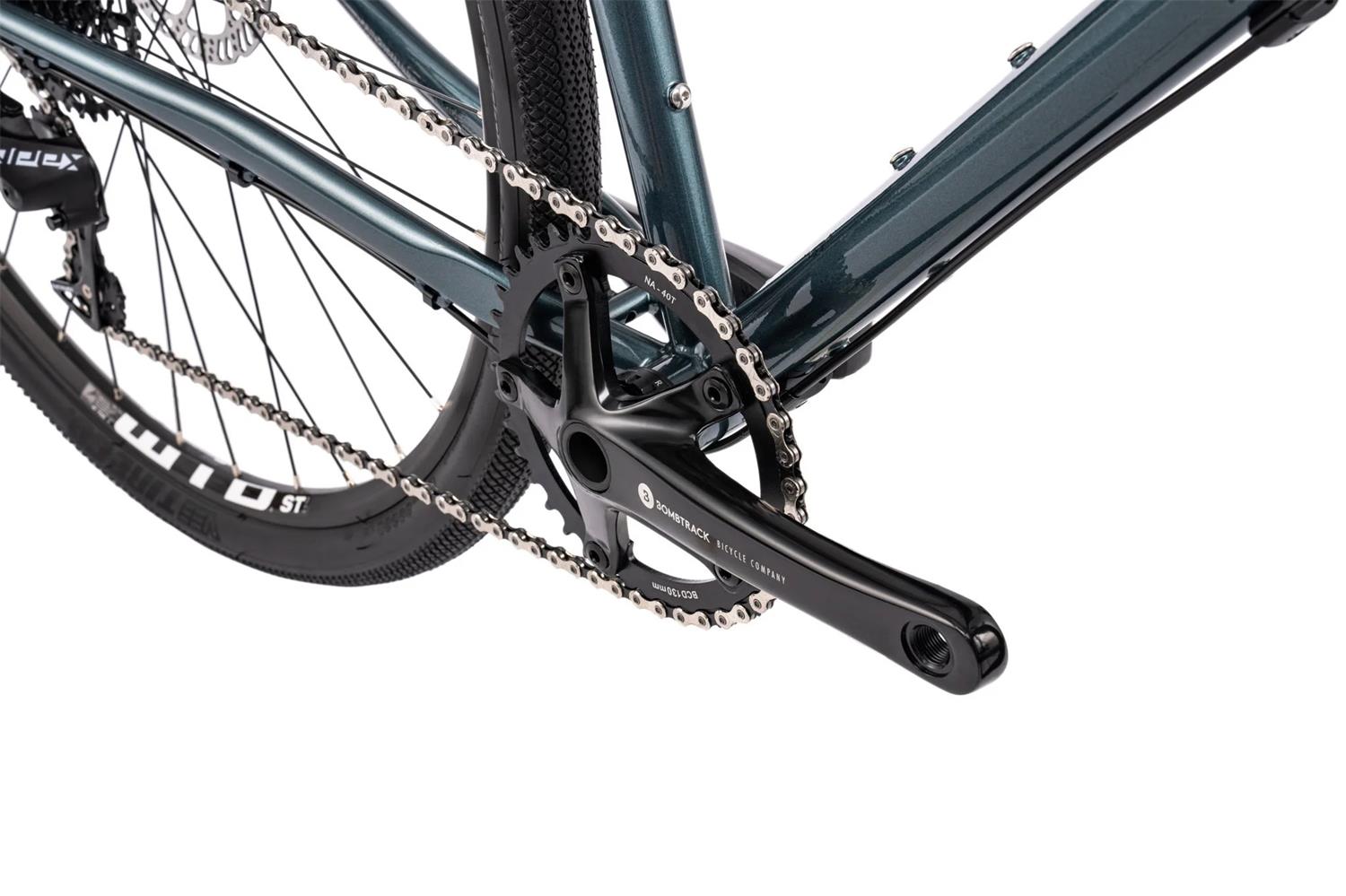

Crankset	Bombtrack TAF19 aluminium crank, 24 mm spindle
BB	BSA sealed BB, external cups
Pedals	-
Chain	KMC X11 chain, 1/2'' x 11/128'', 114L
Chainring	Bombtrack Ridge aluminium chainring, narrow-wide, 40 T

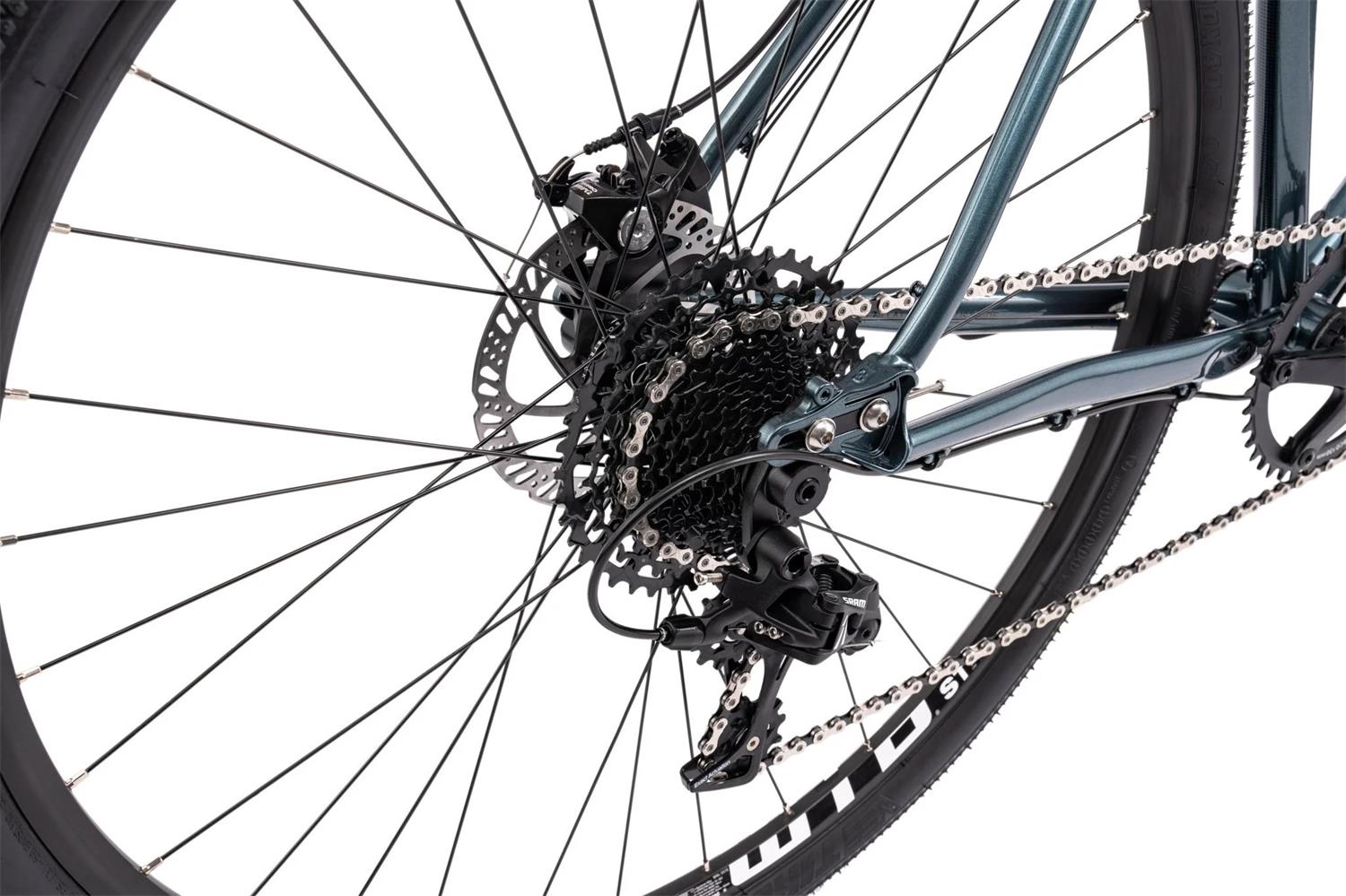

Cassette	Sram PG-1130 11-speed, 11 - 42 T
Front derailleur	-

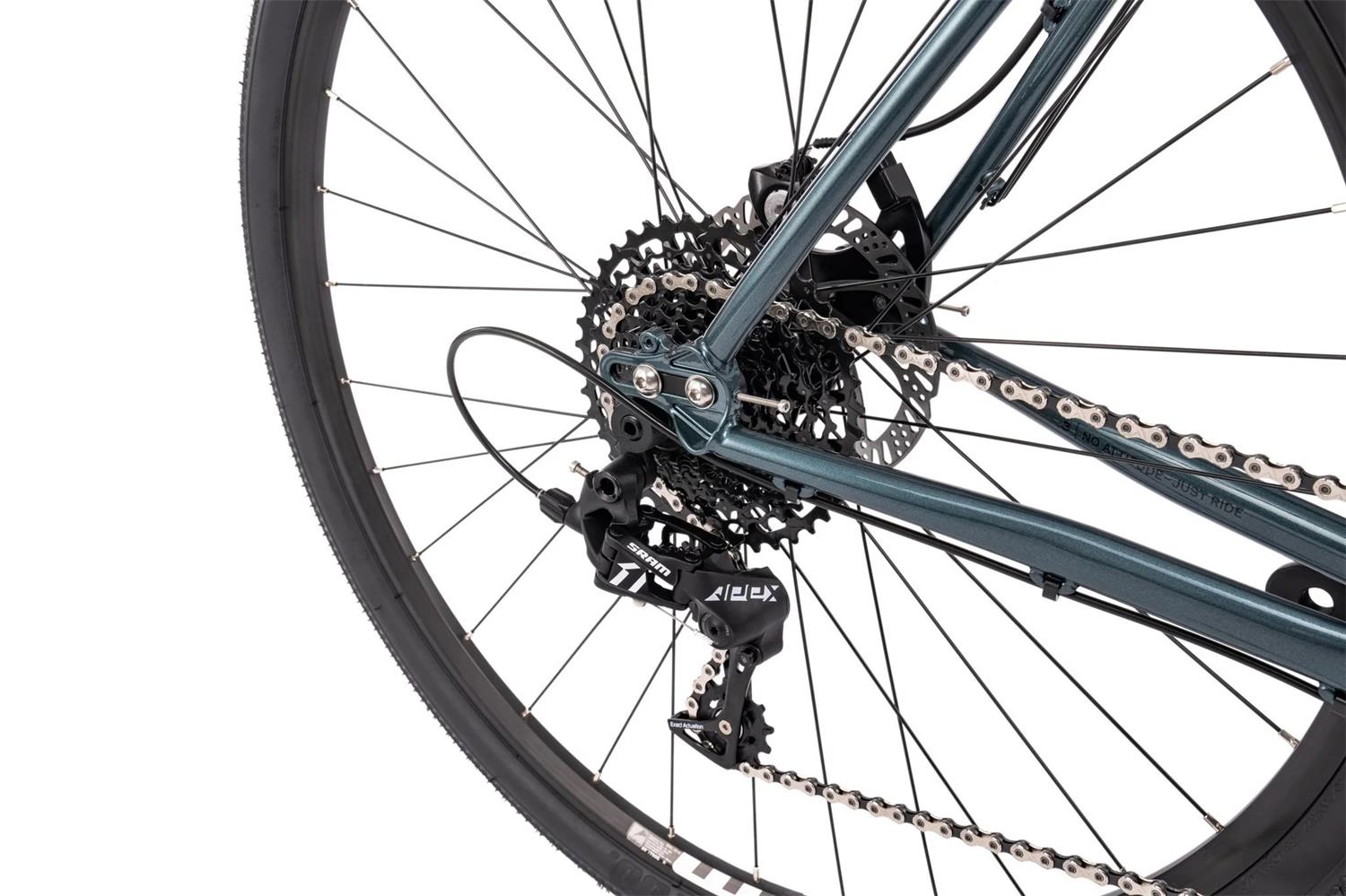

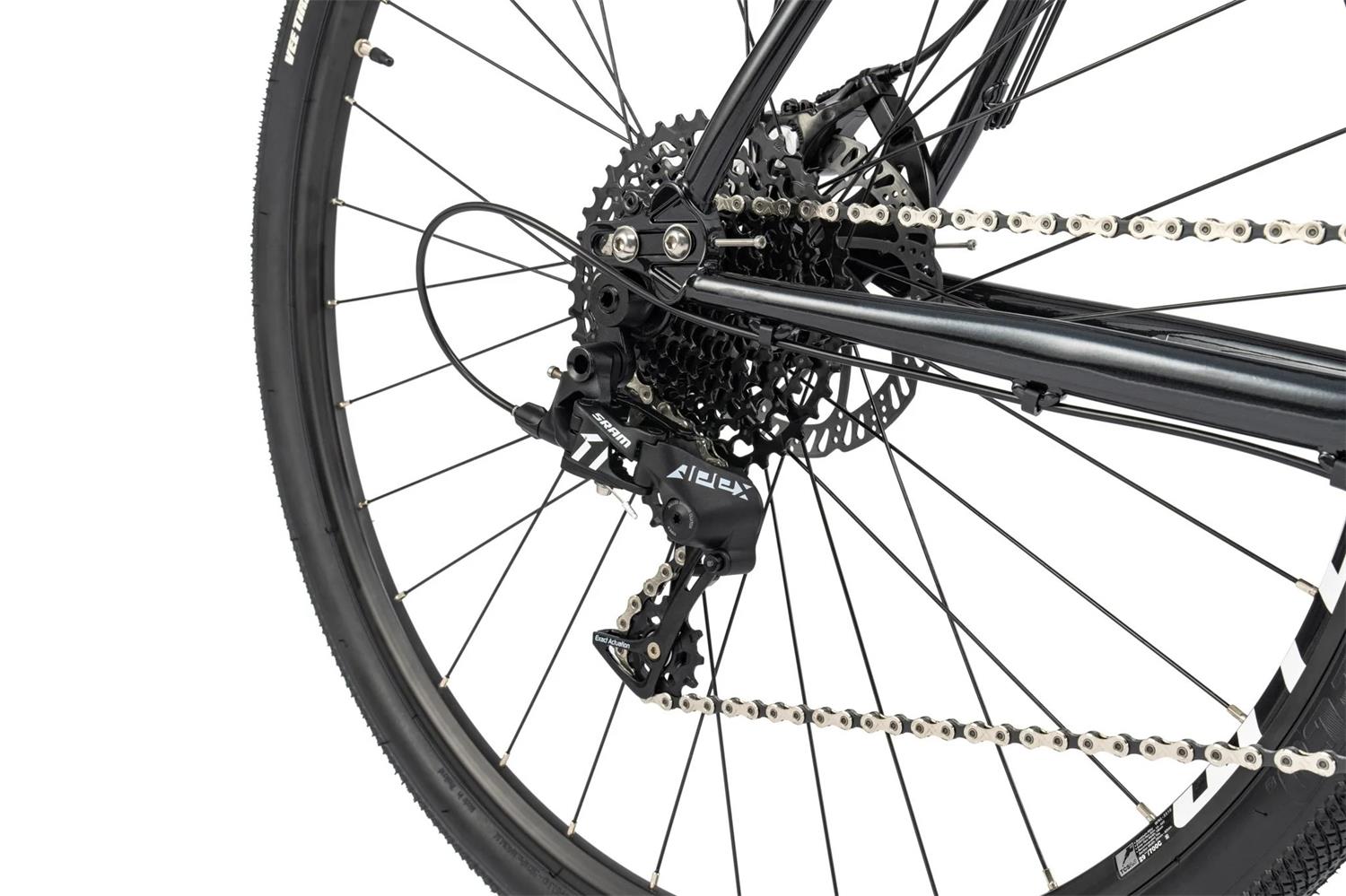

Rear derailleur	Sram Apex 1, clutch, long cage

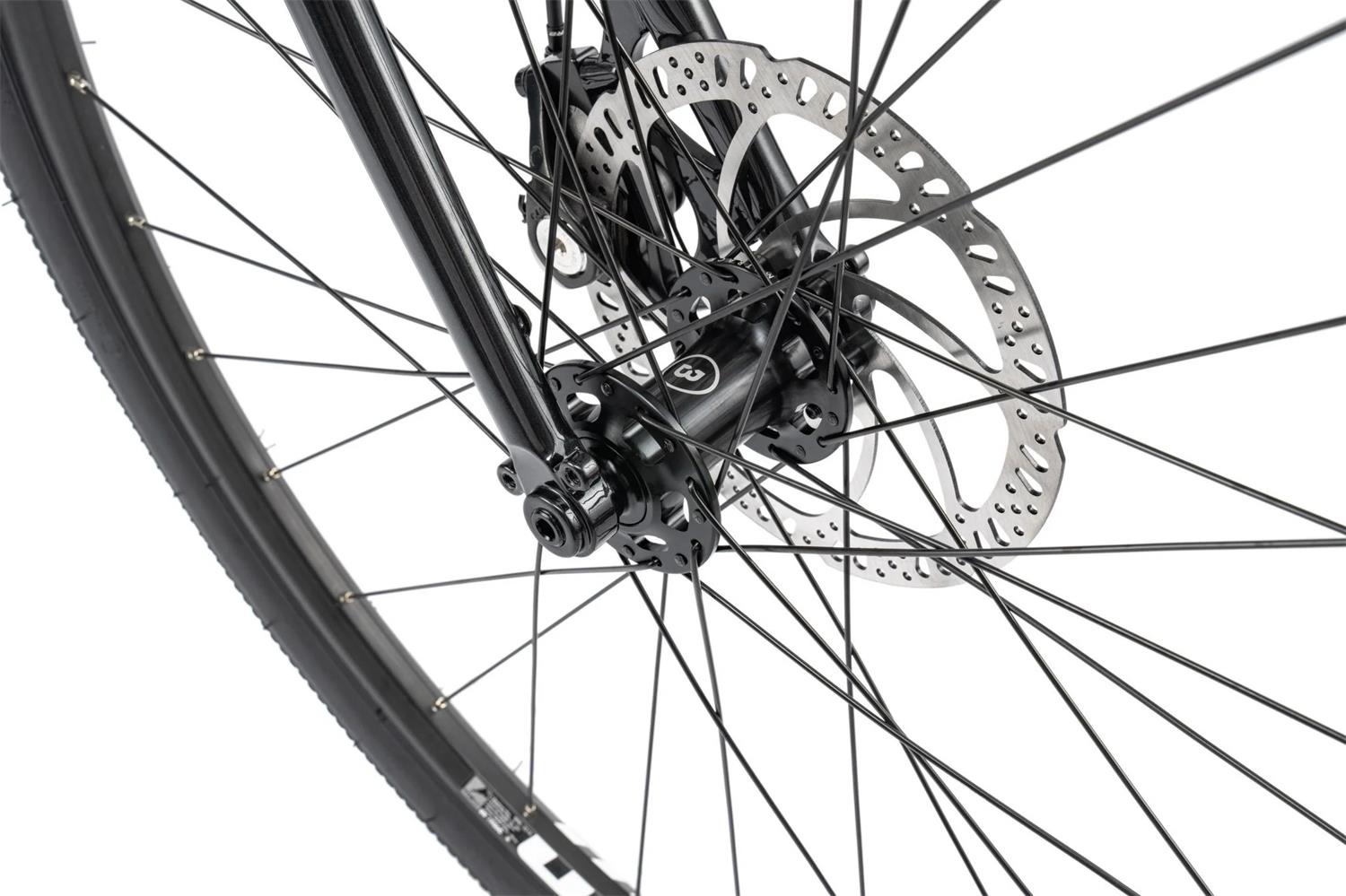

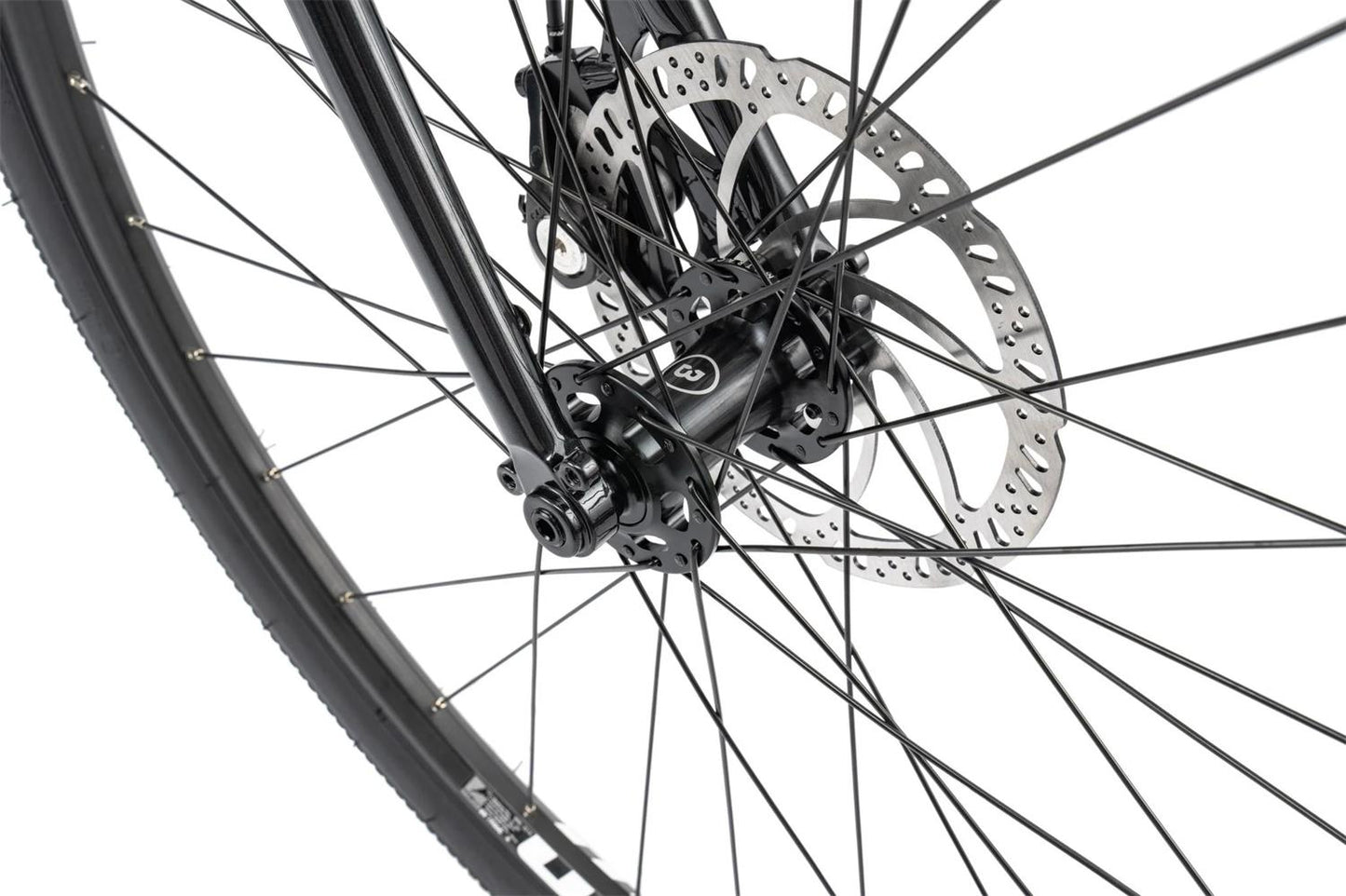

Front hub	Bombtrack Arc sealed hub, 6-bolt disc
Rear hub	Bombtrack Arc sealed hub, 11-speed, 6-bolt disc
Through axle	12 x 100 mm / 12 x 142 mm

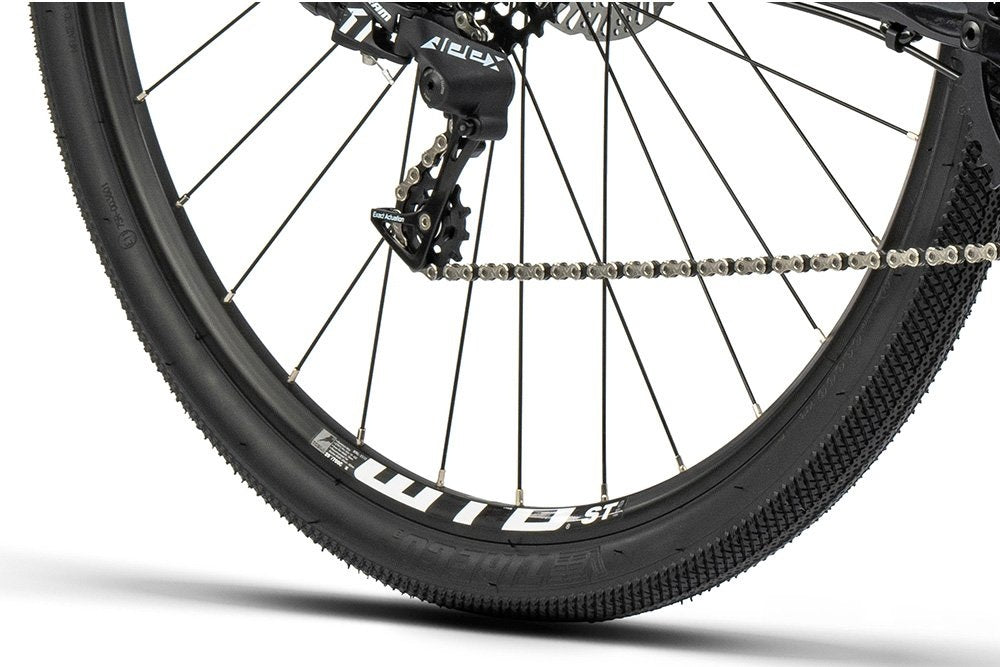

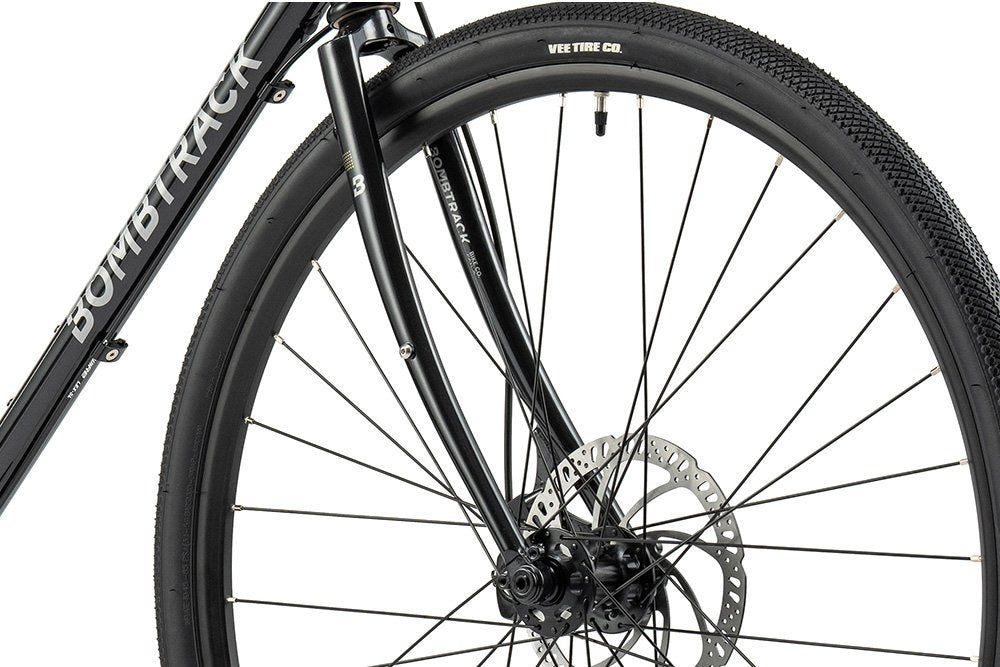

Front rim	WTB ST i19 double wall, TCS 2.0, 32h
Rear rim	WTB ST i19 double wall, TCS 2.0, 32h

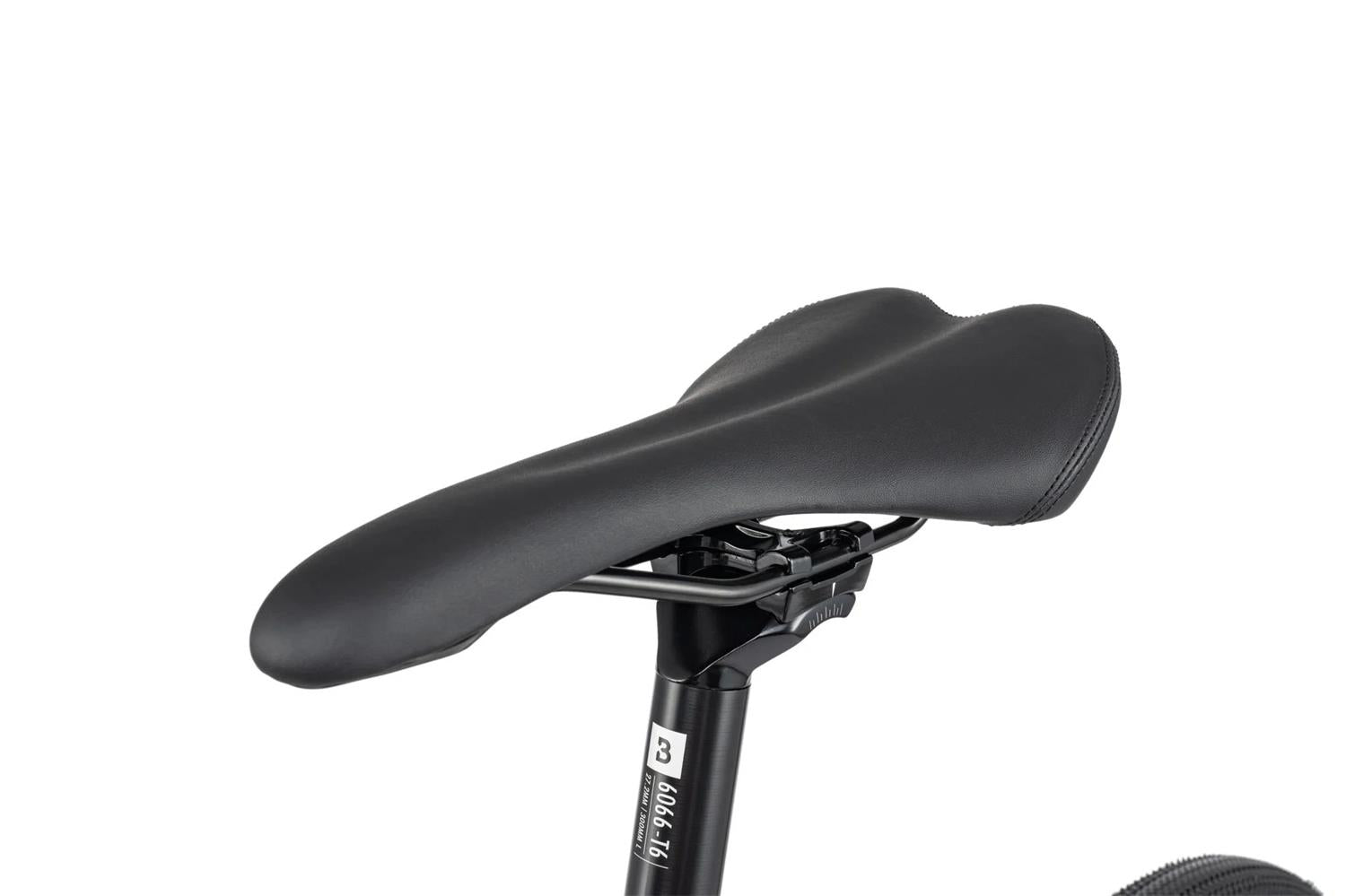

Saddle	Bombtrack Fuzz saddle
Seat post	Bombtrack Beech 27.2 mm x 300 mm
Seat clamp	Bombtrack Prime 29.8 mm
Front tire	XS - S Vee Tire Speedster 650B x 38C / M - XL Vee Tire Speedster 700C x 40C
Rear tire	XS - S Vee Tire Speedster 650B x 38C / M - XL Vee Tire Speedster 700C x 40C
Weight	12.25 kg (size M)
Weight frameset	2480 g frame (size M, incl. TA, hanger) / 1370 g fork (300 mm steerer, incl. TA)
Maximum rider weight	120 kg incl. luggage
ASTM riding condition	2
